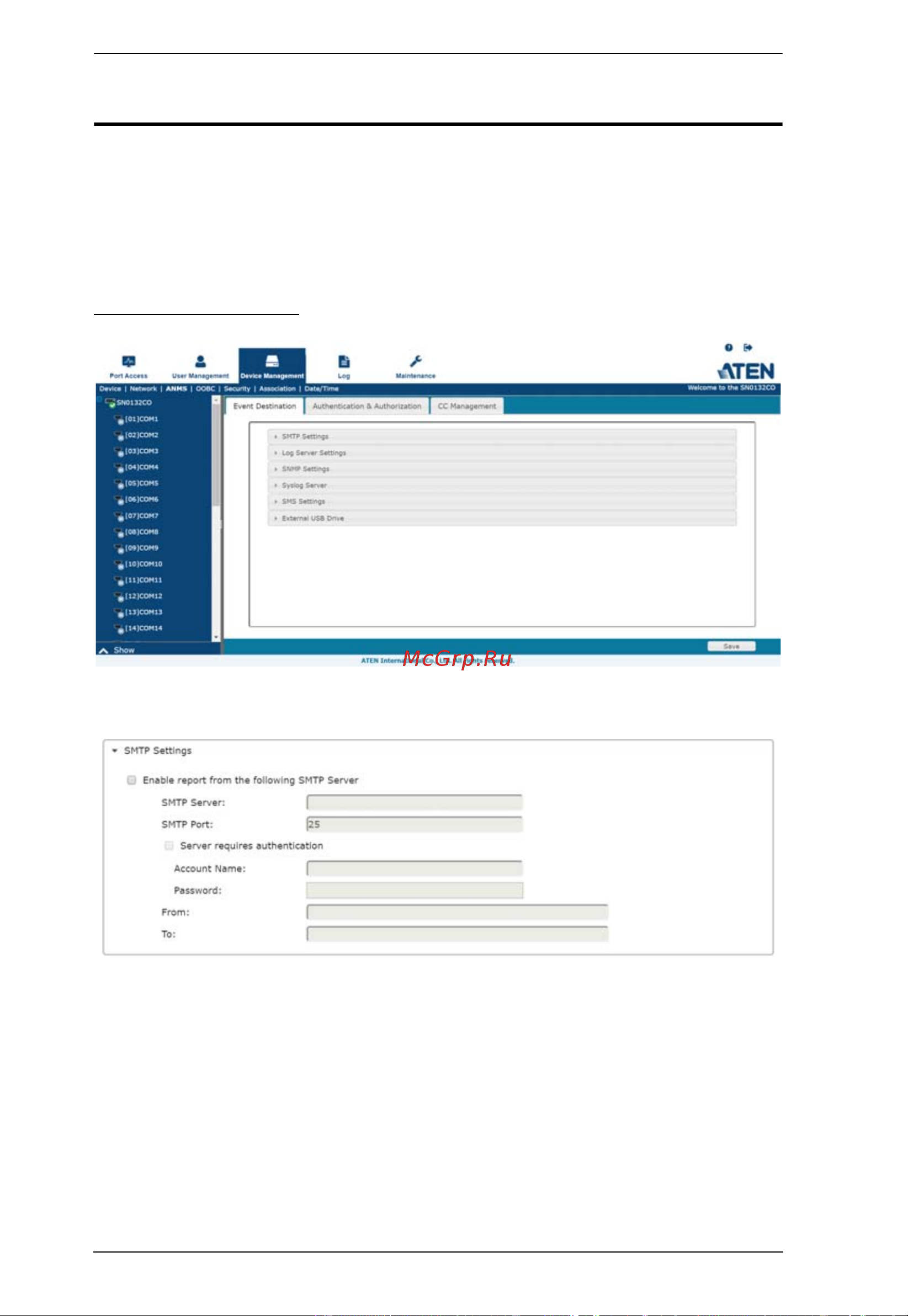

Aten SN0116CO [124/203] Event destination

Serial Console Server User Manual

108

ANMS

The ANMS (Advanced Network Management Settings) page is used to set up

organized as a notebook with three tabs – each with a series of related panels,

as described, below:

Event Destination

 SMTP Settings

To have the Serial Console Server email reports from the SMTP server to

you, do the following:

1. Enable the Enable report from the following SMTP server, and key in

either the IPv4 address, IPv6 address, or domain name of the SMTP

server.

2. Key in the SMTP port.
