Chapter 10. Maintenance
137
Firmware Upgrade

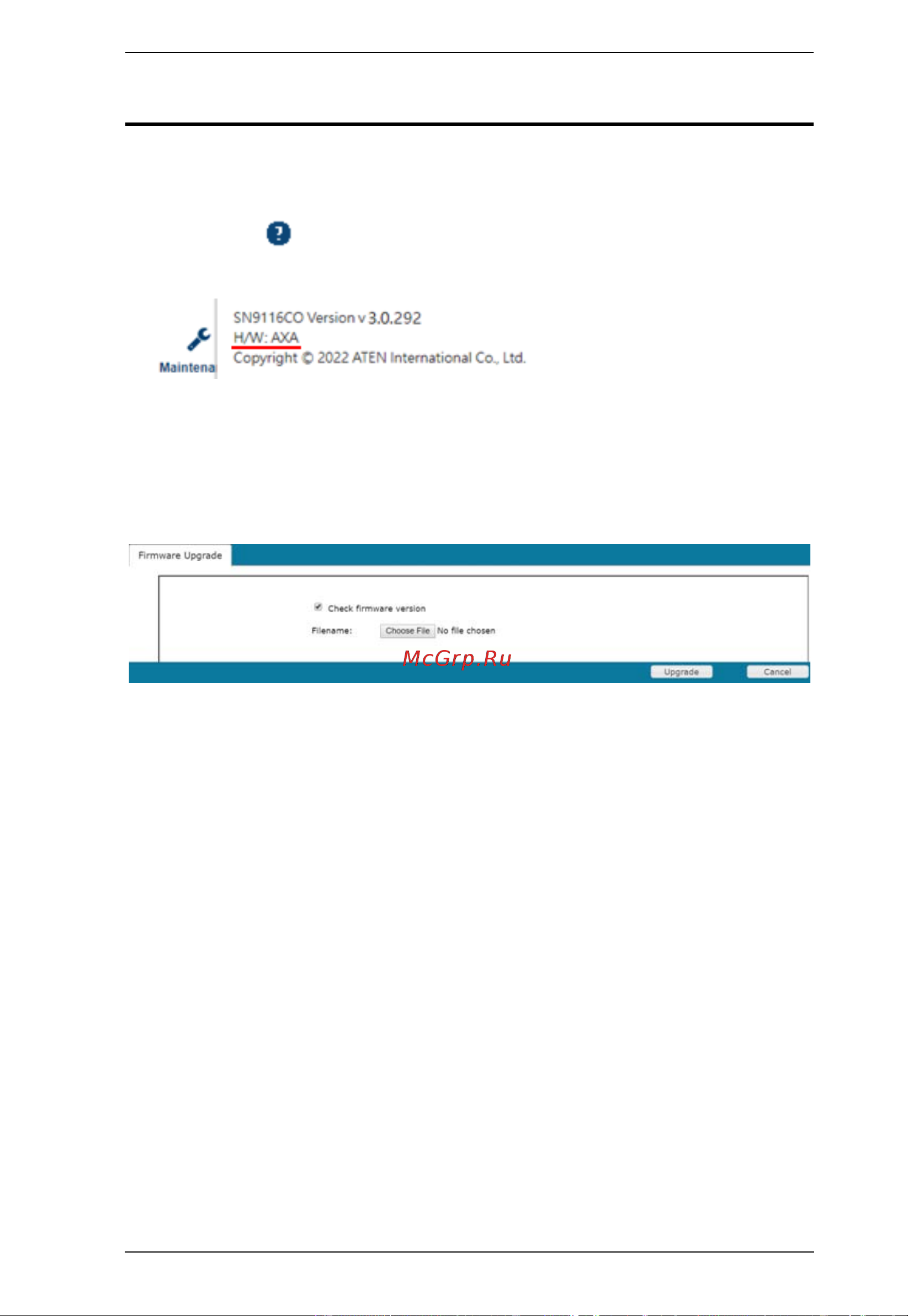

To upgrade the main firmware, do the following:
1. Check the hardware platform (AX or AXA) of the Serial Console Server
by clicking from the web interface.
For example:
2. Download a firmware file based on the hardware platform of your Serial
Console Server.
3. Log in to the Serial Console Server and click the Maintenance tab. Then,
open the Firmware Upgrade page:
4. Click Browse; navigate to the directory that the new firmware file is in
and select the file.
5. Click Upgrade Firmware to start the upgrade procedure.
If you enabled Check Firmware Version the current firmware level is
compared with that of the upgrade file. If the current version is equal to
or higher than the upgrade version, a popup message appears, to inform
you of the situation and stops the upgrade procedure.
If you didn't enable Check Firmware Version, the upgrade file is
installed without checking what its level is.
As the upgrade proceeds, progress information is shown in the
Progress bar.
Once the upgrade completes successfully, the Serial Console Server
resets itself.
6. Log in again, and check the firmware version to be sure it is the new one.
