Serial Console Server User Manual
78
Probe string is the string the system sends for response check. The default
is \x0D (\x0D represents [Enter], \x1B represents [ESC]).
Query frequency is how often you send the response check. The default is
30 (in seconds), enter a number between 10-9999.

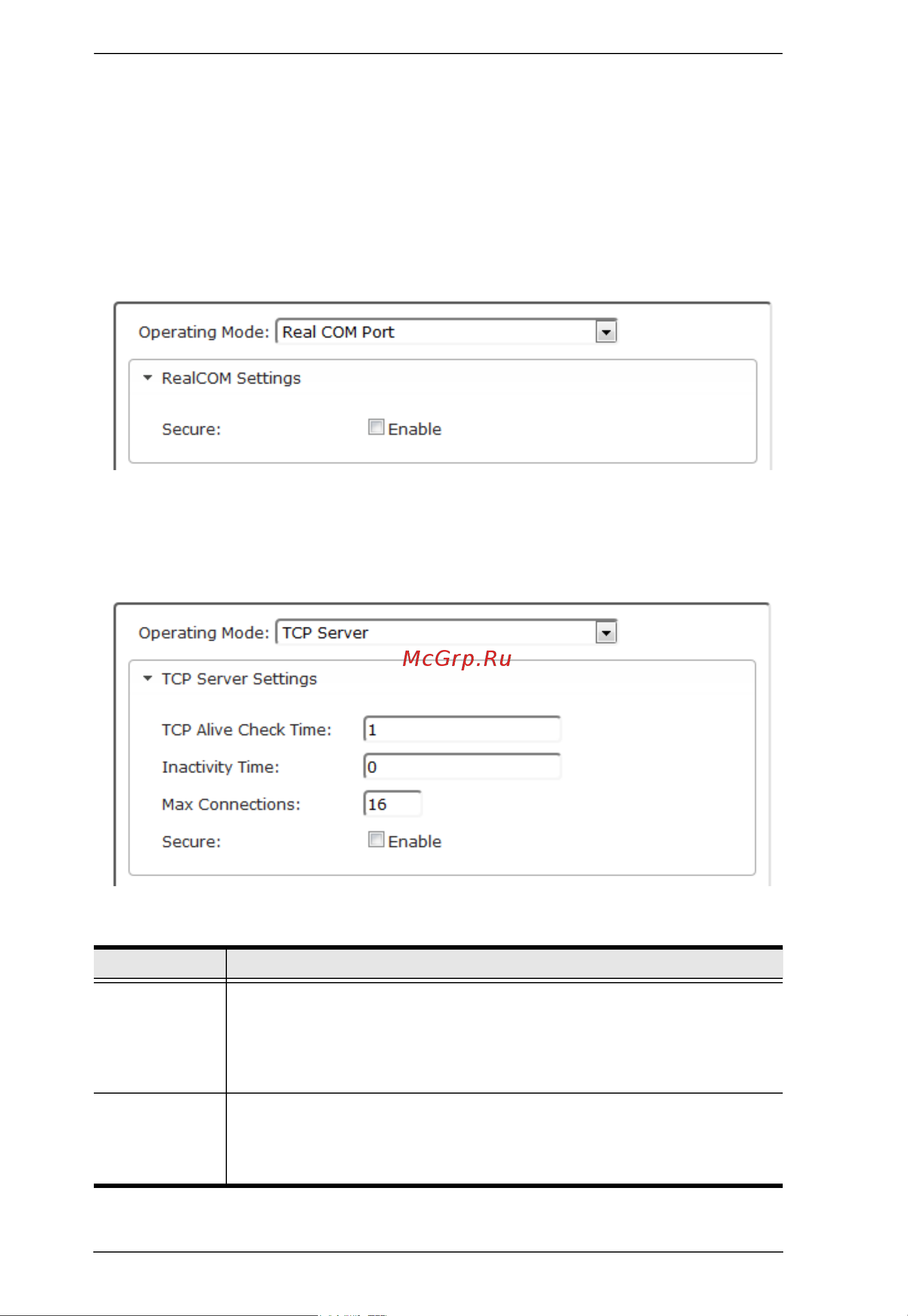

Real COM Port
Check Enable to encrypt all data being transfered through the session.
TCP Server
Setting Meaning
TCP Alive
Check Time
This setting defines how often the Serial Console Server should check
the TCP socket connection to the host computer to determine whether
it is up, or if it has gone down. Enter the number of minutes the Serial
Console Server should wait before checking the TCP connection to
the host computer.
Inactivity Time This setting defines how long to wait when there is no data transfered
between the Serial Console Server and host computer before the
connection drops. Enter the number of minutes that can pass before
the Serial Console Server drops the connection.
