Chapter 1. Introduction

Components

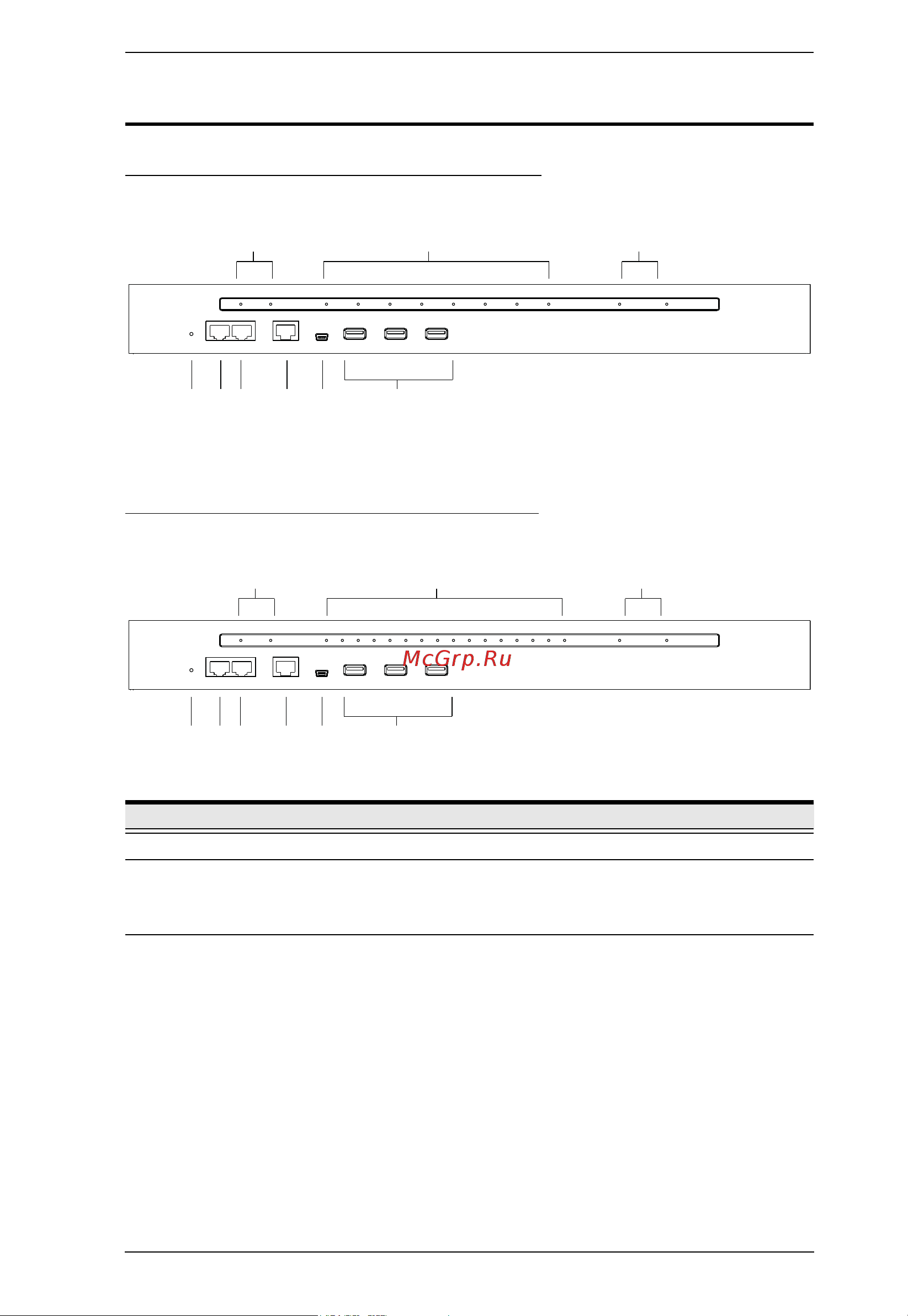

SN0108CO / SN0108COD Front View

SN0116CO / SN0116COD Front View

No. Component Description

1 power LEDs Lights when the unit is powered up and ready to operate.

2 port LEDs The Port

 Flashes Green: Active – data is being transmitted through

the port

3 LAN LEDs Primary and Secondary 10/100/1000 Mbps LAN LEDs.

 RED: 10 Mbps

 RED + GREEN (ORANGE): 100 Mbps

 GREEN: 1000 Mbps

 Flashes to indicate that the Serial Console Server is being

accessed over the LAN.

1 2

4789

1 2

4789
