Serial Console Server User Manual
36
Remote Login
You can log in remotely from a computer running Telnet, PuTTY, or via Web
Browser.
The remote login main menu for Telnet and PuTTY are a text based equivalent
of the browser based GUI and control functions as described throughout this
manual. You can reference the detailed information provided for the web
browser version (After logging in, the system will force you to change the
password, the password must not be the same as the default., page 37) as you
work your way through the text submenus and configure the settings discussed
in this chapter.
Telnet Login

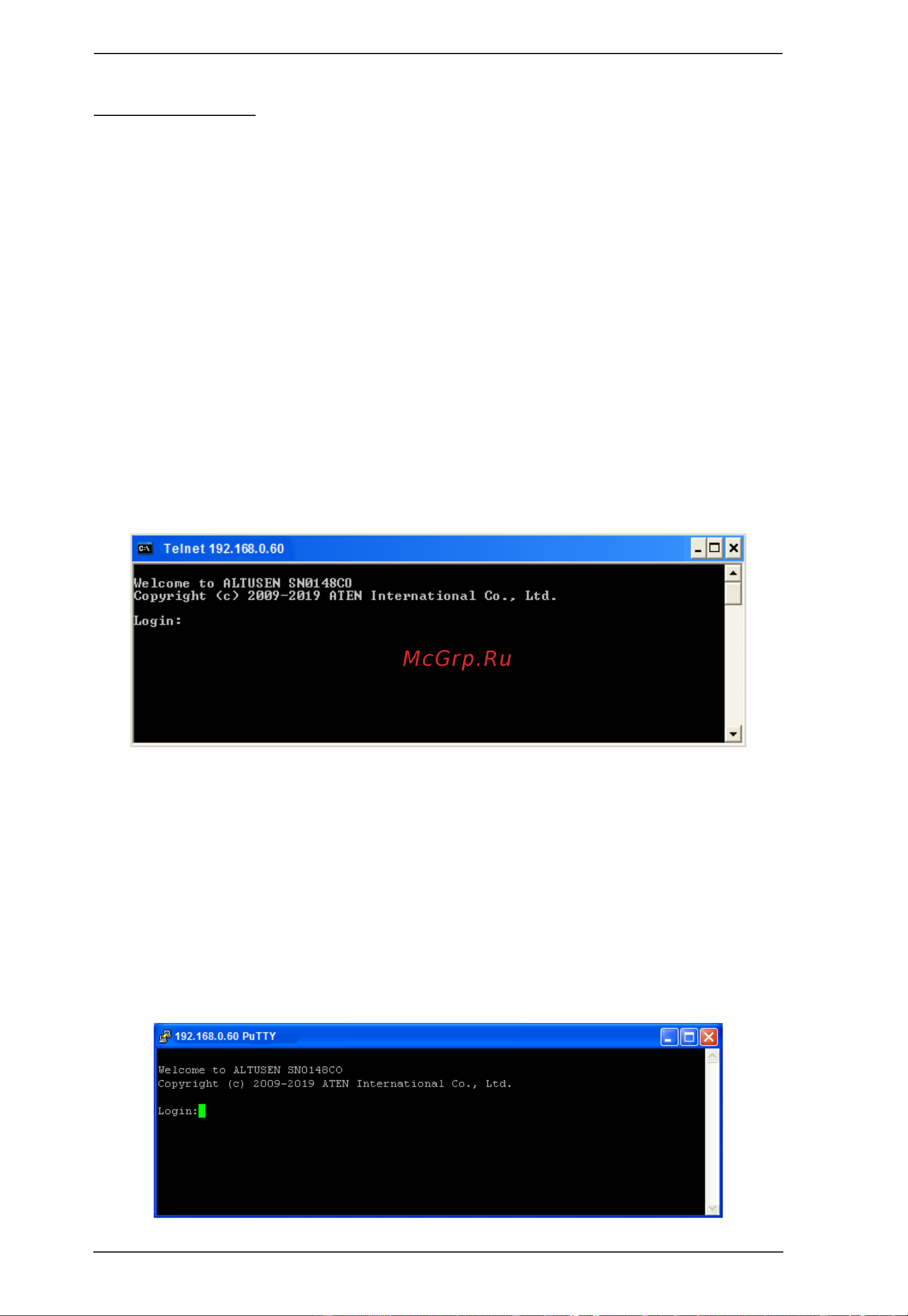

Start Telnet, type “open 192.168.0.60”, press Enter, and a login prompt will
appear, as show here:
Since this is the first time you are logging in, use the default username:
administrator; and the default password: password.
After logging in, the system will force you to change the password, the
password must not be the same as the default.
PuTTY Login
Start PuTTY, enter the Serial Console Server’s default IP address
(192.168.0.60), click Open, and a login prompt will appear, as shown here:
