Aten SN0116CO [32/203] Sn0108cod rear view dc power

Serial Console Server User Manual

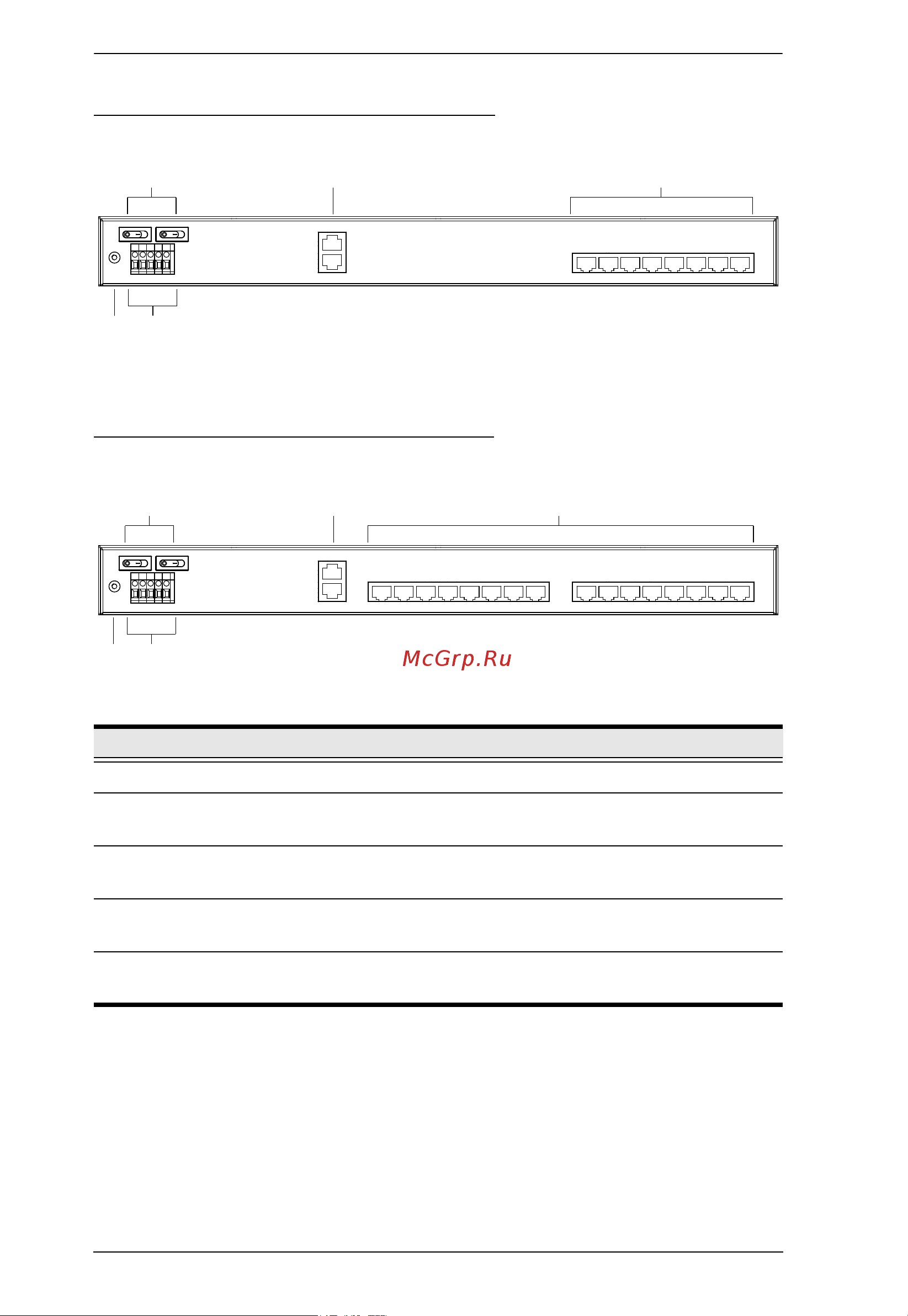

SN0108COD Rear View (DC Power)

SN0116COD Rear View (DC Power)

No. Component Description

1 power switches These standard rocker switches power the unit on and off.

2 LAN ports The cables that connect the unit to the primary and the

backup network interfaces (10/100/1000 Mbps) plug in here.

3 serial ports The Cat 5e cables that connect to the serial devices or

RJ45-to-Serial adapters plug in here.

4 grounding

terminal

The grounding wire that is used to ground the unit attaches

here.

5 DC terminal

block

The electric leads from your power source connect to this

DC terminal block.

312
