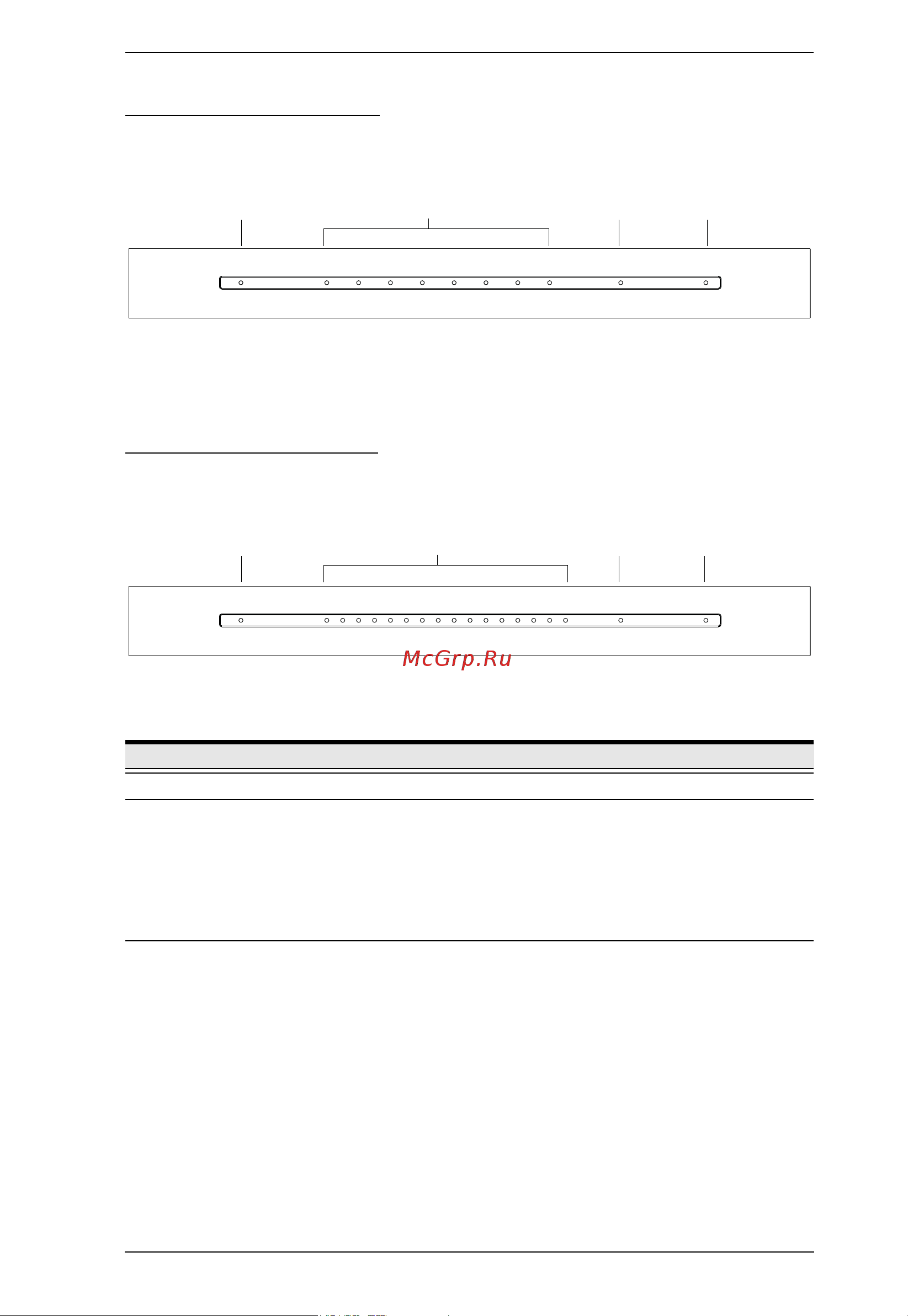

Aten SN0116CO [29/203] Sn9108co front view

Chapter 1. Introduction

SN9108CO Front View

SN9116CO Front View

No. Component Description

1 power LED Lights when the unit is powered up and ready to operate.

2 port LEDs The Port LEDs provide status information about their

corresponding serial ports.

 Lights Green: Online – the serial device attached to the port

is powered on and ready.

 Flashes Green: Active – data is being transmitted through

the port

3 LAN LED Primary and Secondary 10/100/1000 Mbps LAN LEDs.

 RED: 10 Mbps

 RED + GREEN (ORANGE): 100 Mbps

 GREEN: 1000 Mbps

 Flashes to indicate that the Serial Console Server is being

accessed over the LAN.

1 243
