Chapter 1. Introduction
5

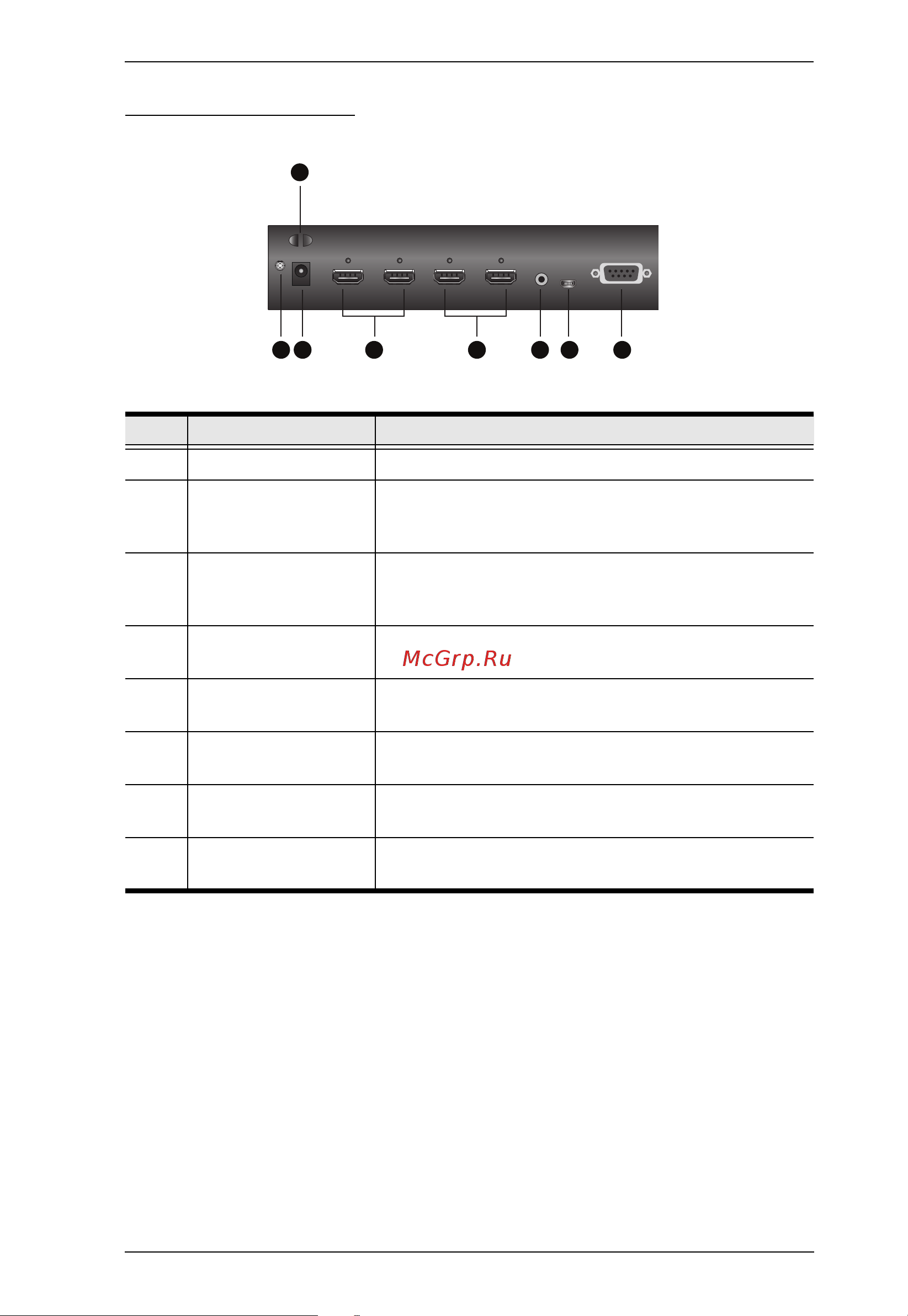

VM0202H Rear View
No. Component Description
1 cable tie slot Receives a cable tie to hold the power cable in place.
2 grounding terminal The grounding wire attaches here. Grounds the
VM0202H to prevent damages from power surge or
static electricity.
3 power jack The power adapter cable from an AC source plugs in
here. Receives a power adapter to supply power to the
VM0202H.
4 HDMI output ports The cables from your HDMI display devices plug into
these ports.
5 HDMI input ports The cables from your HDMI source devices plug into
these ports.
6 external IR receiver
port
Connect the IR receiver unit included with your product
via this 3.5 mm mini stereo jack.
7 Micro USB Type-B
port
Use this port to upgrade the firmware. See The
Firmware Upgrade Utility, page 35.
8 RS-232 serial port Connect a computer or high-end system controller via
this serial port.
52 3 4 6 7 8
1
