Chapter 1. Introduction
7

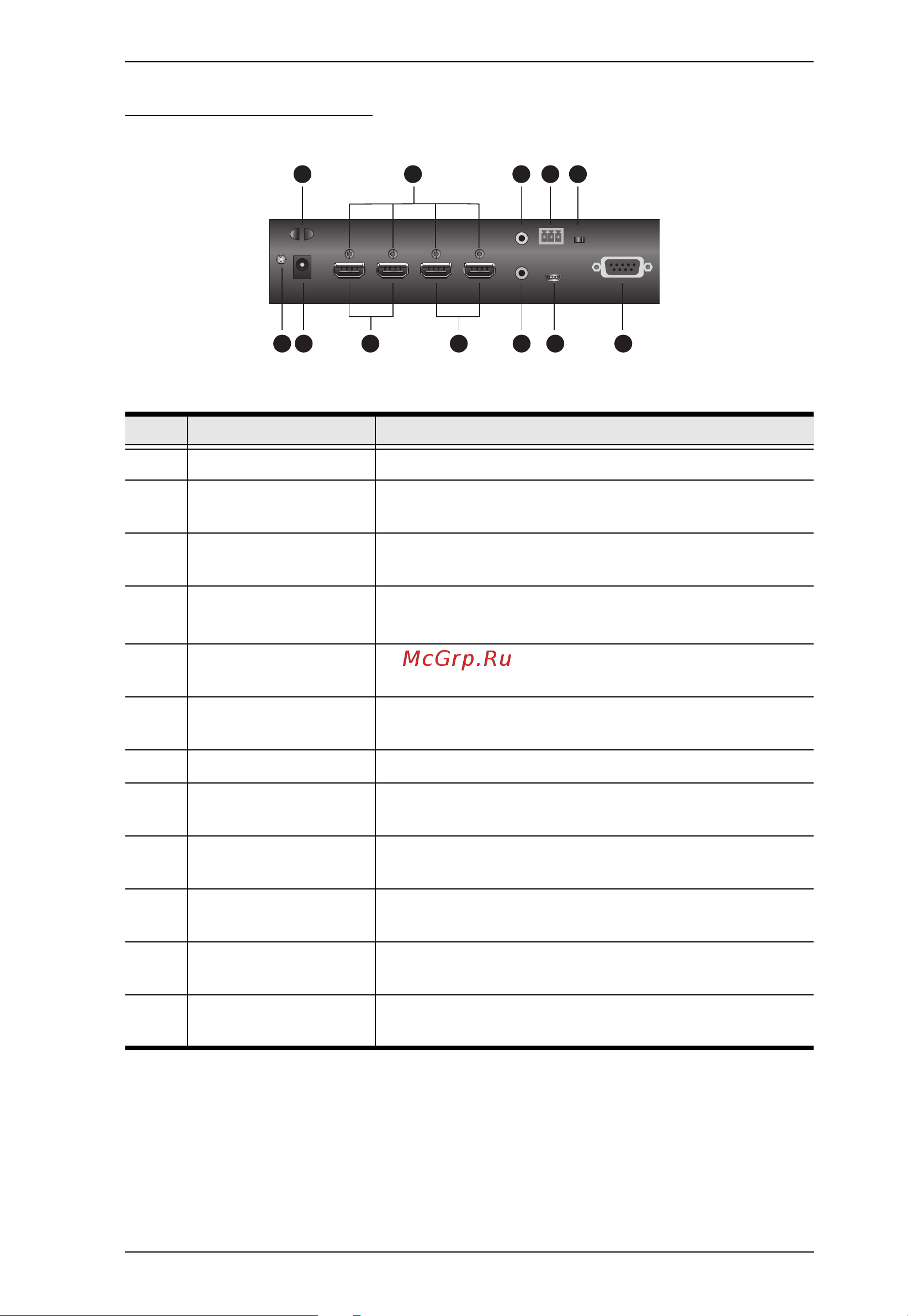

VM0202HB Rear View
No. Component Description
1 cable tie slot Receives a cable tie to hold the power cable in place.
2 grounding terminal Grounds the VM0202HB to prevent damages from
power surge or static electricity.
3 power jack Receives a power adapter to supply power to the
VM0202HB.
4 cable lock screw for
ATEN LockPro
TM
A universal HDMI cable lock that provides the easiest
way to secure an HDMI cable to most HDMI devices.
5 HDMI output ports The cables from your HDMI display devices plug into
these ports.
6 HDMI input ports The cables from your HDMI source devices plug into
these ports.
7 stereo audio out port Connect an audio output device into this port.
8 stereo line out port Connect the cables from your audio output device into
these ports.
9 audio channel switch Use the switch to set an audio channel from 2 channel
or bypass.
10 IR receiver port Connect the IR Receiver unit included with your
product via this 3.5 mm mini stereo jack.
11 firmware upgrade port Use this port to upgrade the firmware. See The
Firmware Upgrade Utility, page 35.
12 RS-232 serial port Connect a computer or high-end system controller via
this serial port.
62 3
1
4
5
10
11 12
7
8 9
