Aten VM0202HB [46/55] Preparation

VM0202H / VM0202HB User Manual

Preparation

To prepare for the firmware upgrade, do the following:

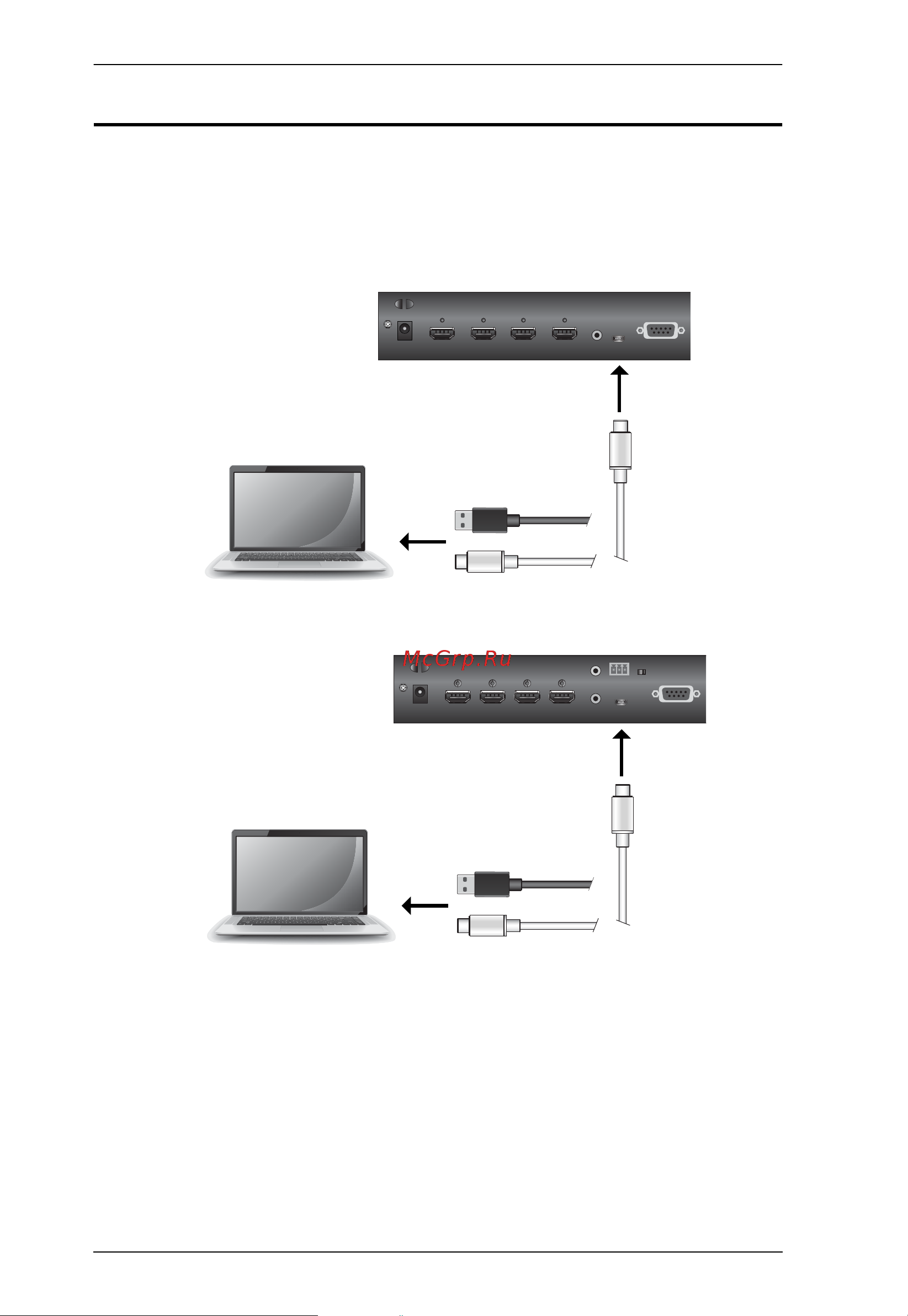

1. Use a Micro USB Type-B cable to connect a USB port on your computer to

the firmware upgrade port of your VM0202H / VM0202HB.

VM0202H

VM0202HB

2. Unplug the VM0202H / VM0202HB’s power adapter.

3. Power on the VM0202H / VM0202HB.

a) To power on the VM0202H, plug the power adapter to the power jack

located on the rear panel, and press the power pushbutton located on the

front panel.

4. To power on the VM0202HB, plug the power adapter to the power jack

located on the rear panel.

5. You can start the upgrade process as explained on the next page.

VM0202H

VM0202HB
