Chapter 5. The Firmware Upgrade Utility

Starting the Upgrade

To upgrade the firmware:

1. Run the downloaded firmware upgrade package file either by double-

clicking the file icon.

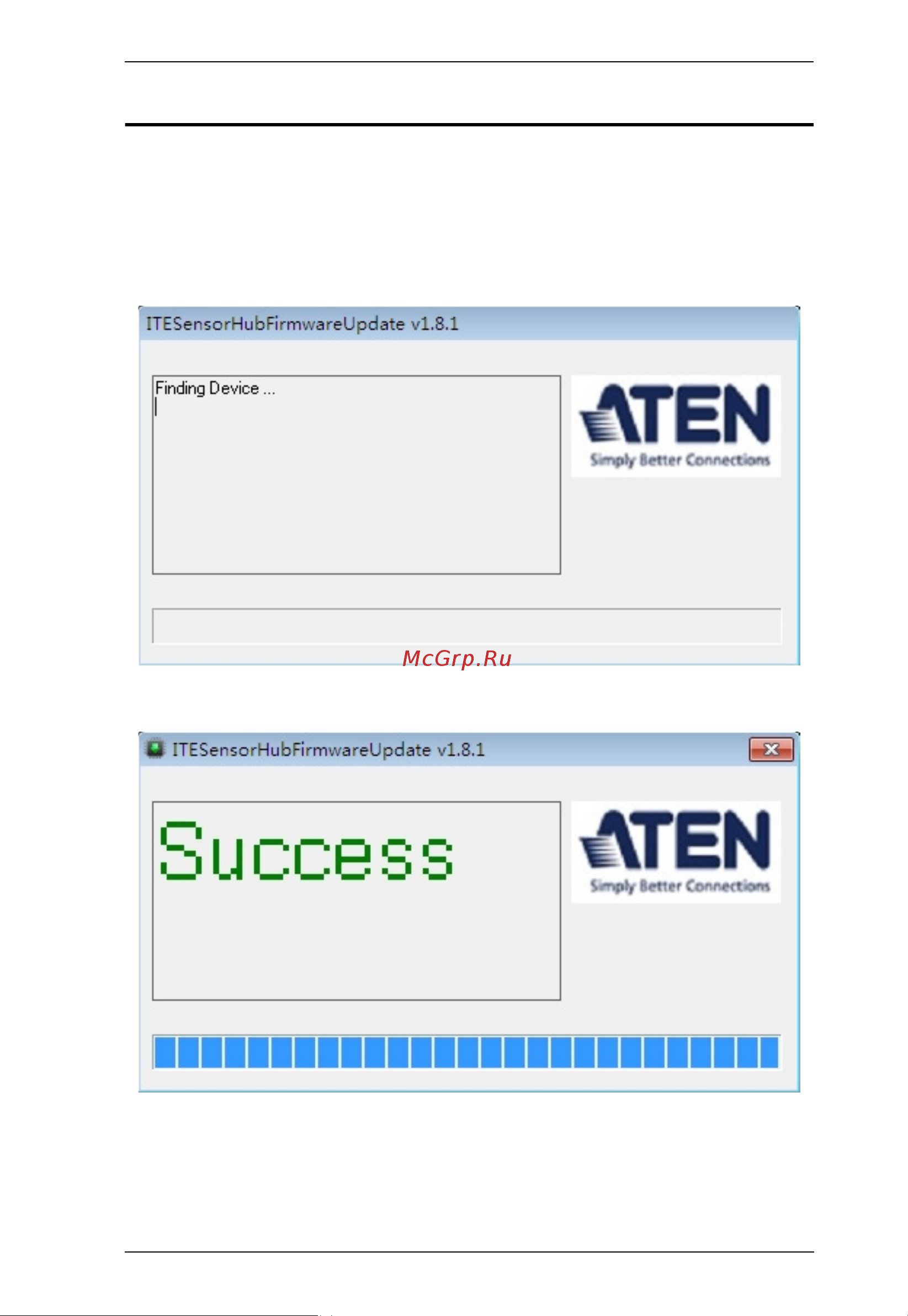

The Firmware Upgrade Utility welcome screen appears:

2. After the upgrade is complete, a successful message appear:

3. Now you can power off the VM0202H / VM0202HB, then power it back

on again.
