VM0202H / VM0202HB User Manual
8

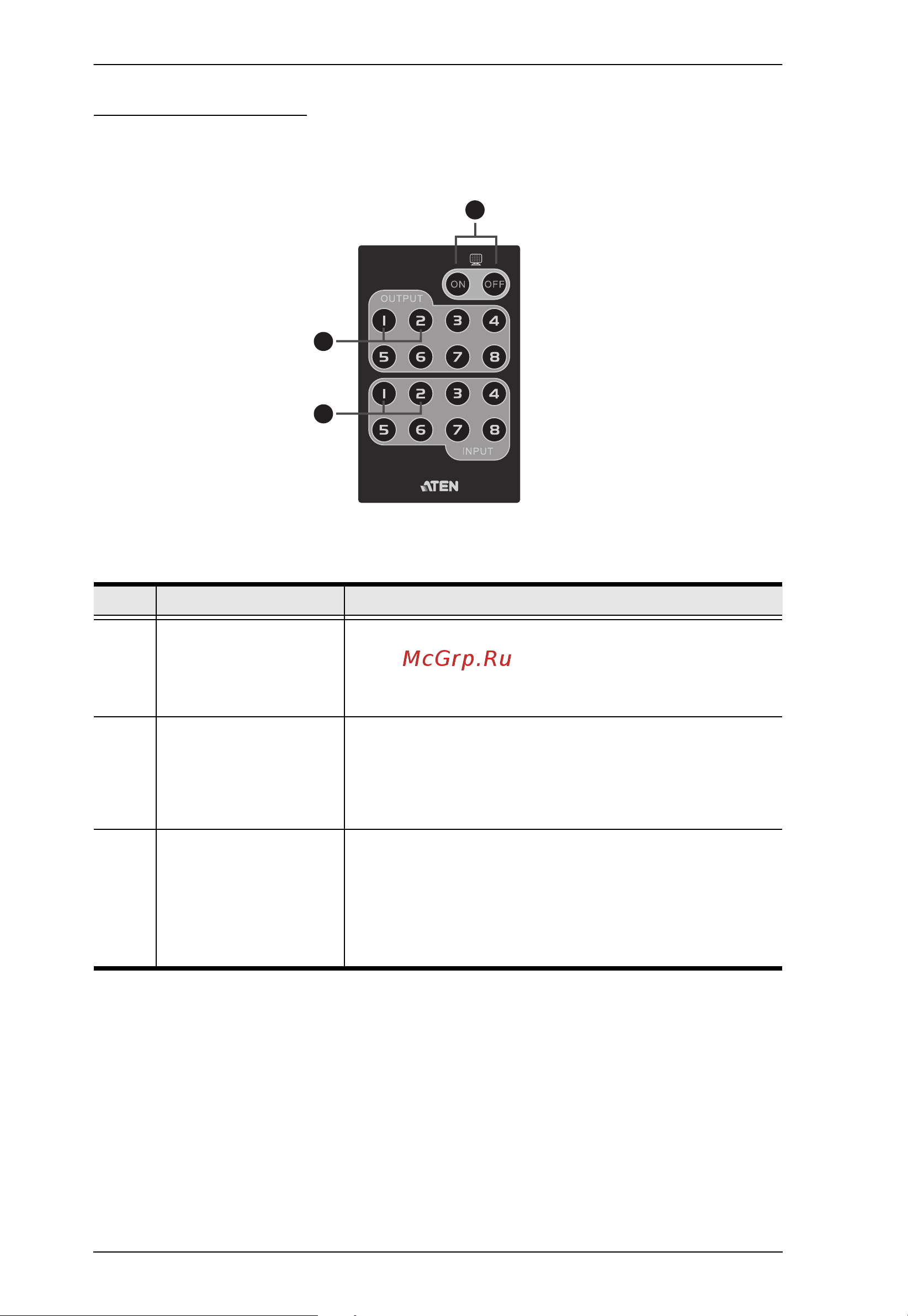

IR Remote Control
No. Component Description
1 power On / Off Use the On and Off pushbuttons to turn the output
displays on or off – by individual port, or all ports. See
IR Remote Control Operation, page 18.
Note: This pushbutton only works on VM0202H.
2 video output
pushbuttons 1-2
Press the video output pushbuttons 1-2 to select the
display you want to configure, then within 2 seconds
press the input pushbutton 1-2 to select the source for
the display. For detailed instructions, see IR Remote
Control Operation, page 18.
3 video input
pushbuttons 1-2
Press the input pushbuttons 1-2 to select the source
you want to display after you have pressed an output
pushbutton 1-2. You must press the input pushbutton
within 2 seconds after pressing the output pushbutton,
For detailed instructions, see IR Remote Control
Operation, page 18.
1
2
3
