VM0202H / VM0202HB User Manual
18

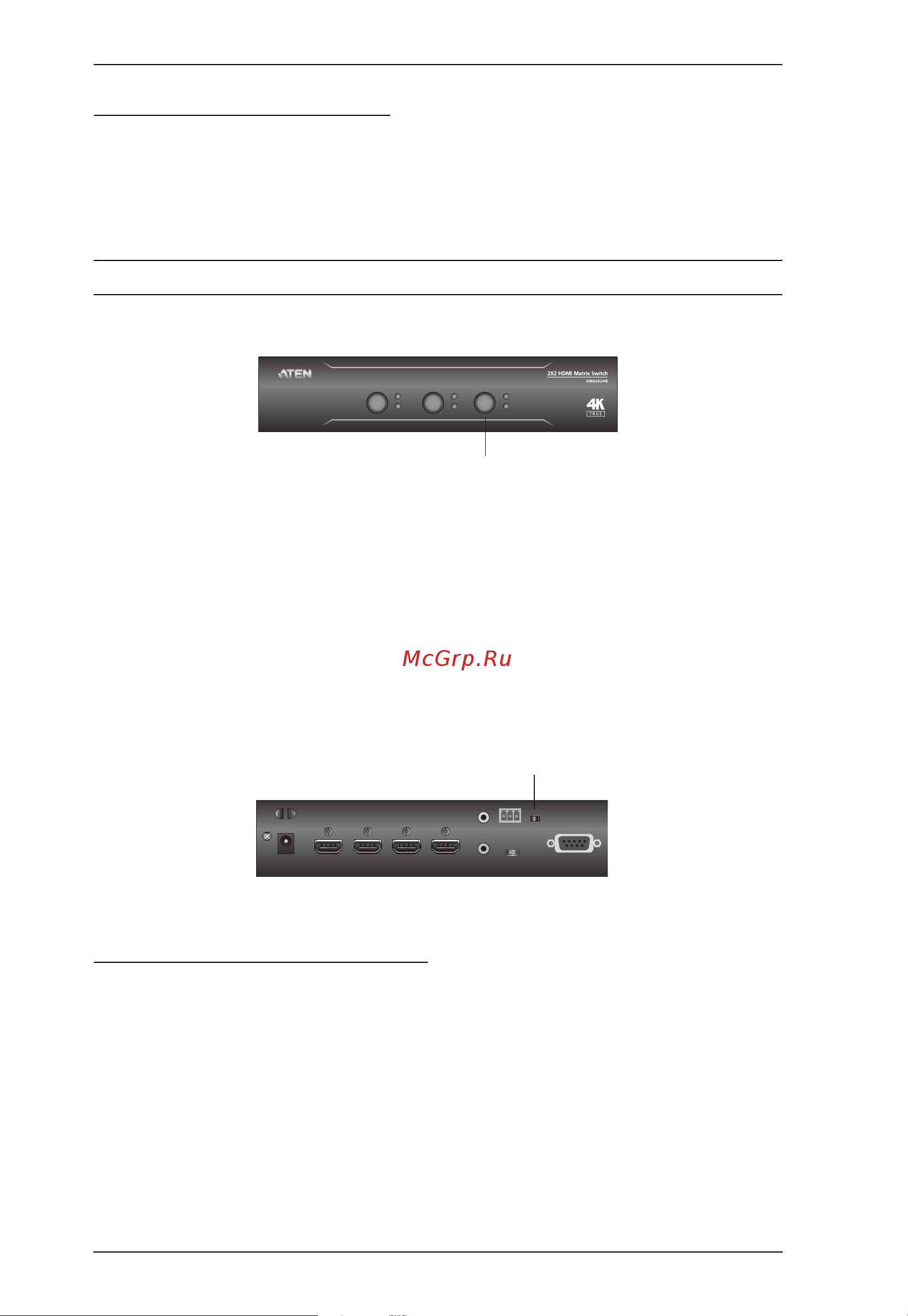

Audio Output Pushbutton
To manually select and extract an audio output source from the connected
HDMI source devices, or to mute the audio output, use the audio output
pushbutton located on the VM0202HB’s front panel to select an audio output
or mute the audio output.
Note: This audio output pushbutton is only available on VM0202HB.
Pressing the audio output pushbutton will cycle between the two attached
HDMI source devices (source 1 and 2).
Audio Channel Switch
The audio channel switch allows you to bypass or set audio CH 2 for the
connected speakers.
IR Remote Control Operation
The IR remote control (IR Remote Control, page 8) included with the
VM0202H / VM0202HB can be used to:
Change the input source of any output display
Turning on/off individual output display
Turning on/off all output displays simultaneously
audio output pushbutton
audio channel switch
