Chapter 2. Hardware Setup
13
VM0202HB Installation

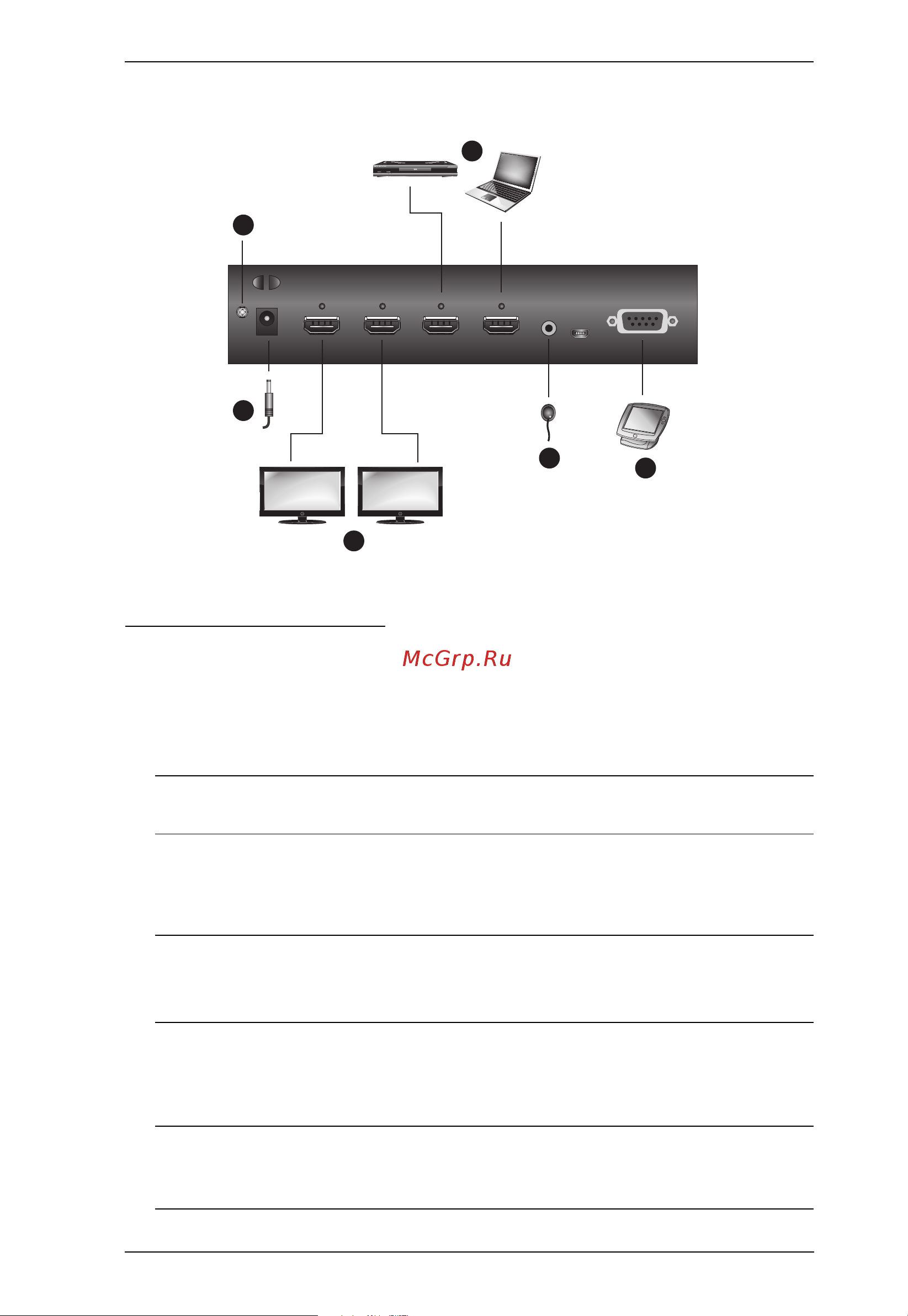

To install the switch, refer to the installation diagram below as you perform the
following steps:
1. Use a grounding wire to ground the unit by connecting one end to the
grounding terminal, and the other end to a suitable grounded object.
Note: Do not omit the step. Proper grounding helps to prevent damage to
the unit from power surges or static electricity.
2. Connect the unit to up to two HDMI sources using HDMI cables.
Optionally secure the cables with ATEN LockPro
TM
.
Note: Please set the EDID Mode to port 1 EDID when you are connecting
an HDMI source with resolution 1080p @ 30Hz, see EDID Mode
Command, page 33.
3. Connect the unit to up to two HDMI-enabled displays using HDMI cables.
Optionally secure the cables with ATEN LockPro
TM
.
Note: Please set the EDID Mode to port 1 EDID when you are connecting
an HDMI-enabled display with resolution 1080p @ 30Hz, see EDID
Mode Command, page 33.
6
2
5
1
3
4
HDMI Display Devices
HDMI Source Devices
Hardware / Software
Controller
