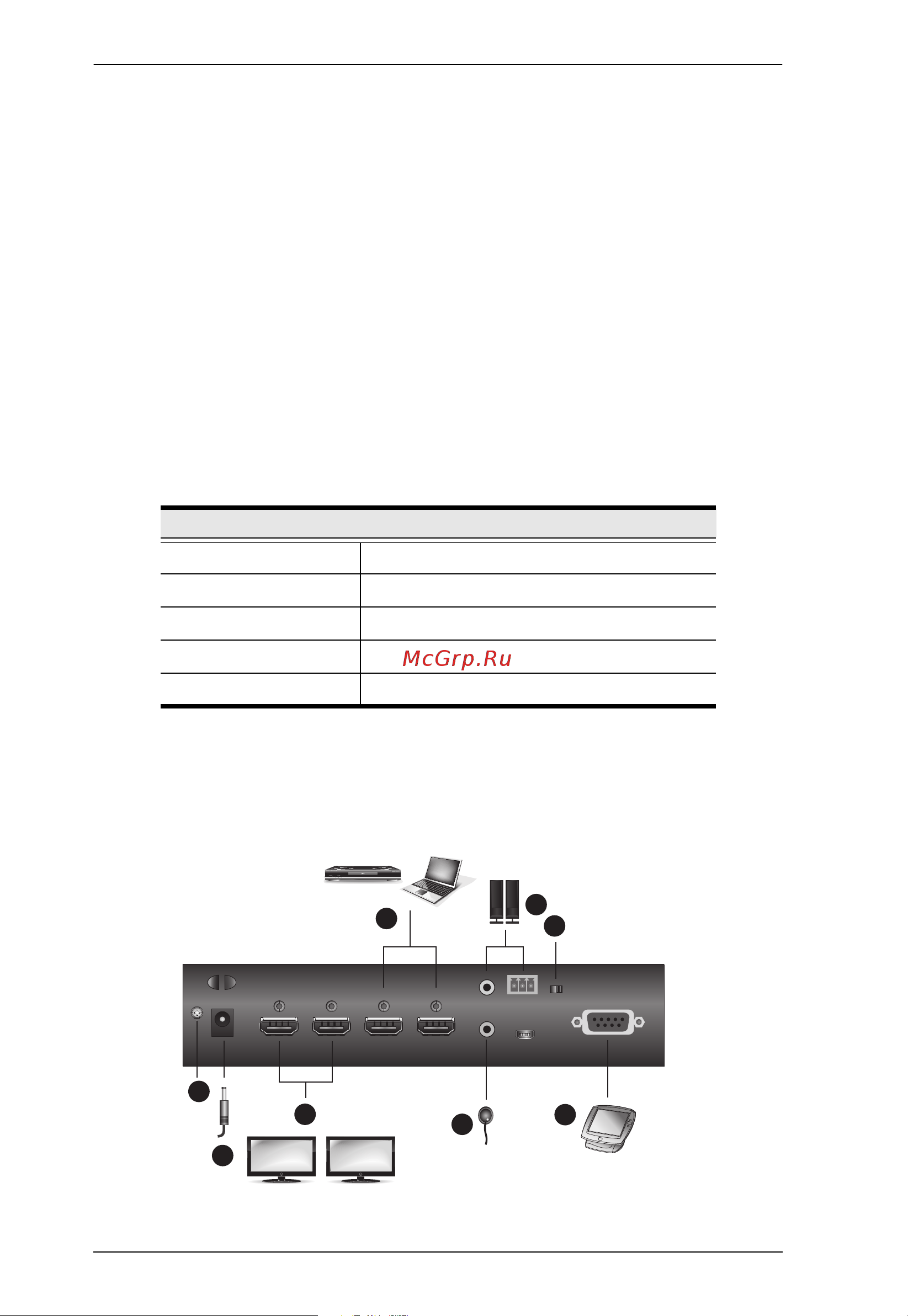

VM0202H / VM0202HB User Manual
14
4. (Optional) To extract HDMI audio, connect a speaker to the stereo audio
out or stereo line out port.
5. (Optional) To choose between HDMI audio bypass or 2-channel audio for
the connected speakers, switch the audio channel switch to BYPASS or
CH2.
6. (Optional) To switch sources using IR remote control, connect the
supplied IR receiver to the IR receiver port.
7. (Optional) To perform system control using a serial device via RS-232,
follow the steps below.
a) Connect the serial controller to the RS-232 serial port on the
VM0202HB using a 9-wire straight cable, with only pin 2 to pin 2, pin
3 to pin 3, and pin 5 to pin 5 connected.
b) Configure the serial controller’s control port to the following:
8. Plug the power adapter to an appropriate AC power source, and the
adapter cable into the power jack on the VM0202HB.
9. Power on all the connected devices.
RS-232 Protocol
Baud Rate 19200
Data Bits 8
Parity None
Stop Bits 1
Flow Control None
HDMI Display Devices
HDMI Source Devices
Hardware / Software
Controller
7
4
1
6
8
3
2
5
