Aten VM0202HB [16/55] Vm0202hb front view

VM0202H / VM0202HB User Manual

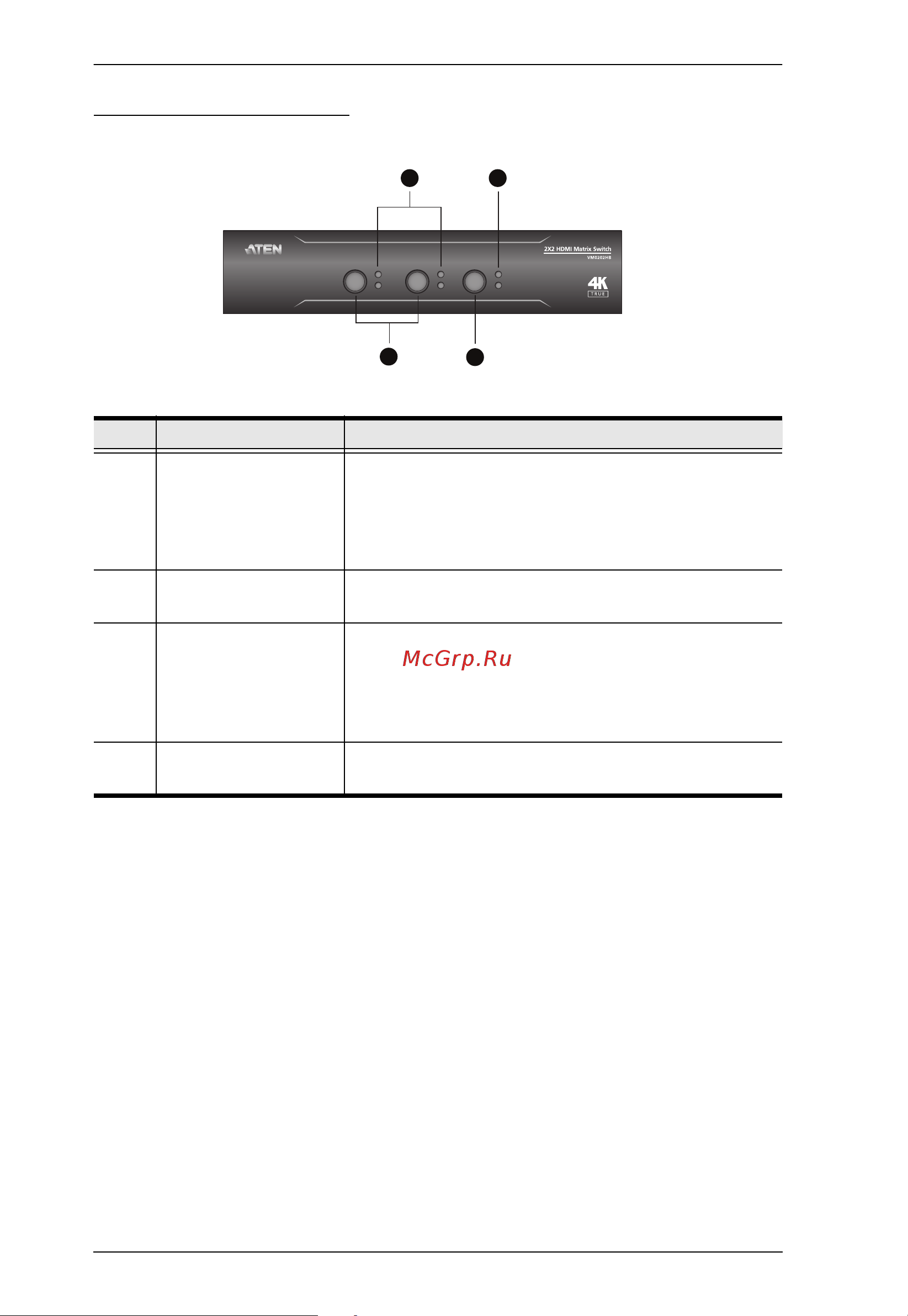

VM0202HB Front View

No. Component Description

1 video output

pushbuttons

Press an output port pushbutton to select an input

port.

Note: The OUTPUT (1-2) front panel pushbuttons

have built-in Green LEDs that light to indicate they

have been selected.

2 video input LEDs Indicates the input port of the corresponding output

port (output 1 or 2).

3 audio output

pushbutton

Press the audio output pushbutton to select an audio

output source.

Note: The OUTPUT (1-2) front panel pushbuttons

have built-in Green LEDs that light to indicate they

have been selected.

4 audio input LEDs Indicates the audio input port of the corresponding

input port (input 1 or 2).

2 4
