IMPORTANT INFORMATION
GEN
INFO
CAUTION:

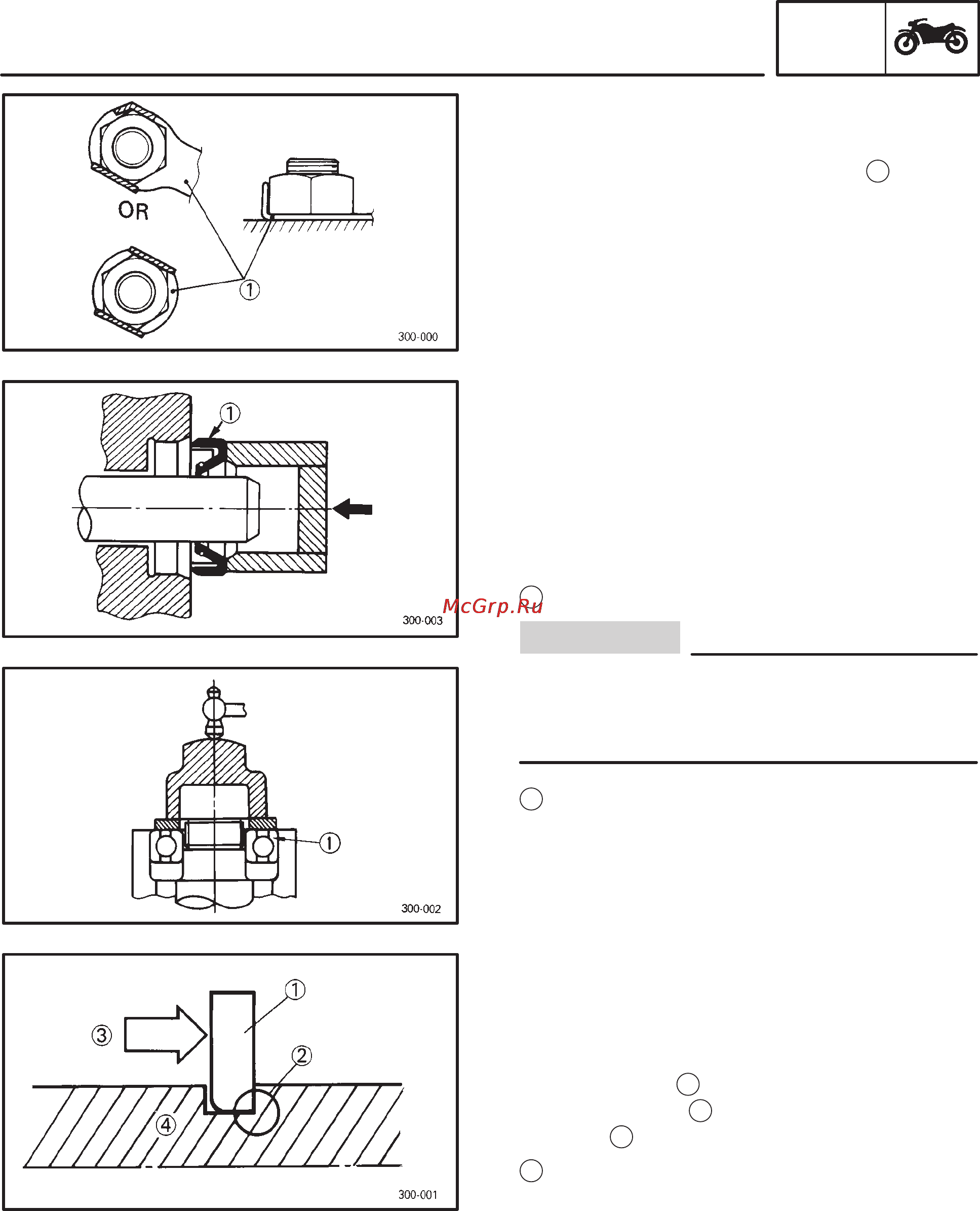

EB101030
LOCK WASHERS/PLATES AND COTTER
PINS
1. Replace all lock washers/plates
1
and cot-
ter pins after removal. Bend lock tabs along
the bolt or nut flats after the bolt or nut has
been tightened to specification.
EB101040
BEARINGS AND OIL SEALS
1. Install bearings and oil seals so that the
manufacturer’s marks or numbers are vis-
ible. When installing oil seals, apply a light
coating of lightweight lithium base grease to
the seal lips. Oil bearings liberally when
installing, if appropriate.
1
Oil seal
Do not use compressed air to spin the bear-
ings dry. This will damage the bearing sur-
faces.
1
Bearing
EB101050
CIRCLIPS
1. Check all circlips carefully before reassemb-
ly. Always replace piston pin clips after one
use. Replace distorted circlips. When instal-
ling a circlip
1
, make sure that the sharp-
edged corner
2
is positioned opposite the
thrust
3
it receives. See sectional view.
4
