![Yamaha DRAG STAR XVS1100 (1999) [263/355] Steering head](/img/pdf.png)

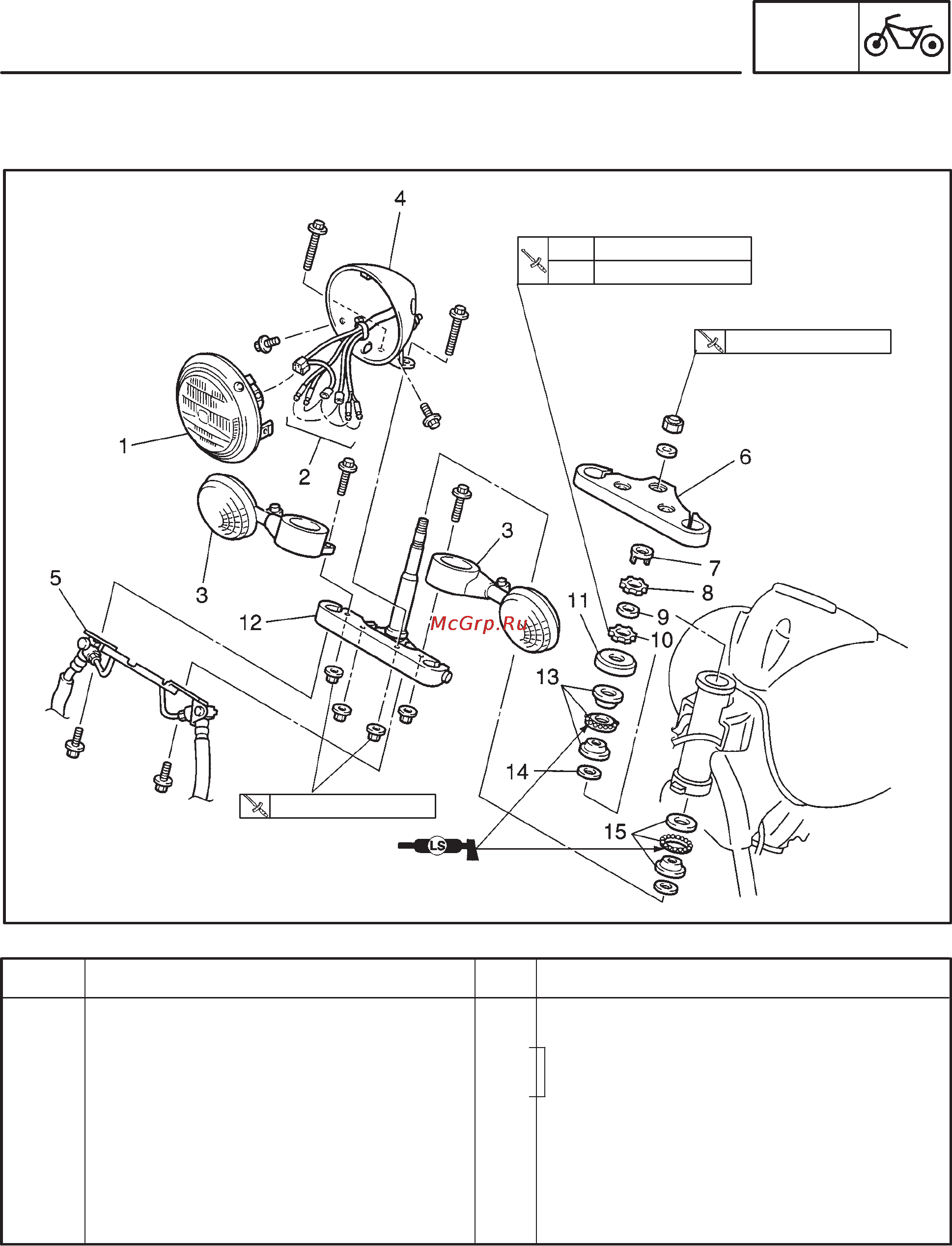

Yamaha DRAG STAR XVS1100 (1999) [263/355] Steering head
![Yamaha DRAG STAR XVS1100 (1999) [263/355] Steering head](/views2/1121370/page263/bg107.png)
6-59
Order Job name/Part name Q’ty Remarks
9
10
11
12
13
14
15
Rubber washer
Lower ring nut
Bearing cover
Lower bracket
Bearing (upper)
Rubber seal
Bearing (lower)
1
1
1
1
1
1
1
For installaiton, reverse the removal
procedure.
7 Nm (0.7 mkg)
1st
110 Nm (11.0 mkg)
2nd
52 Nm (5.2 mkg)
18 Nm (1.8 mkg)
Refer to “REMOVING THE LOWER
BRACKET/INSTALLING THE
STEERING HEAD”.
STEERING HEAD
CHAS
