![Yamaha DRAG STAR XVS1100 (1999) [215/355] Rear wheel and brake disc](/img/pdf.png)

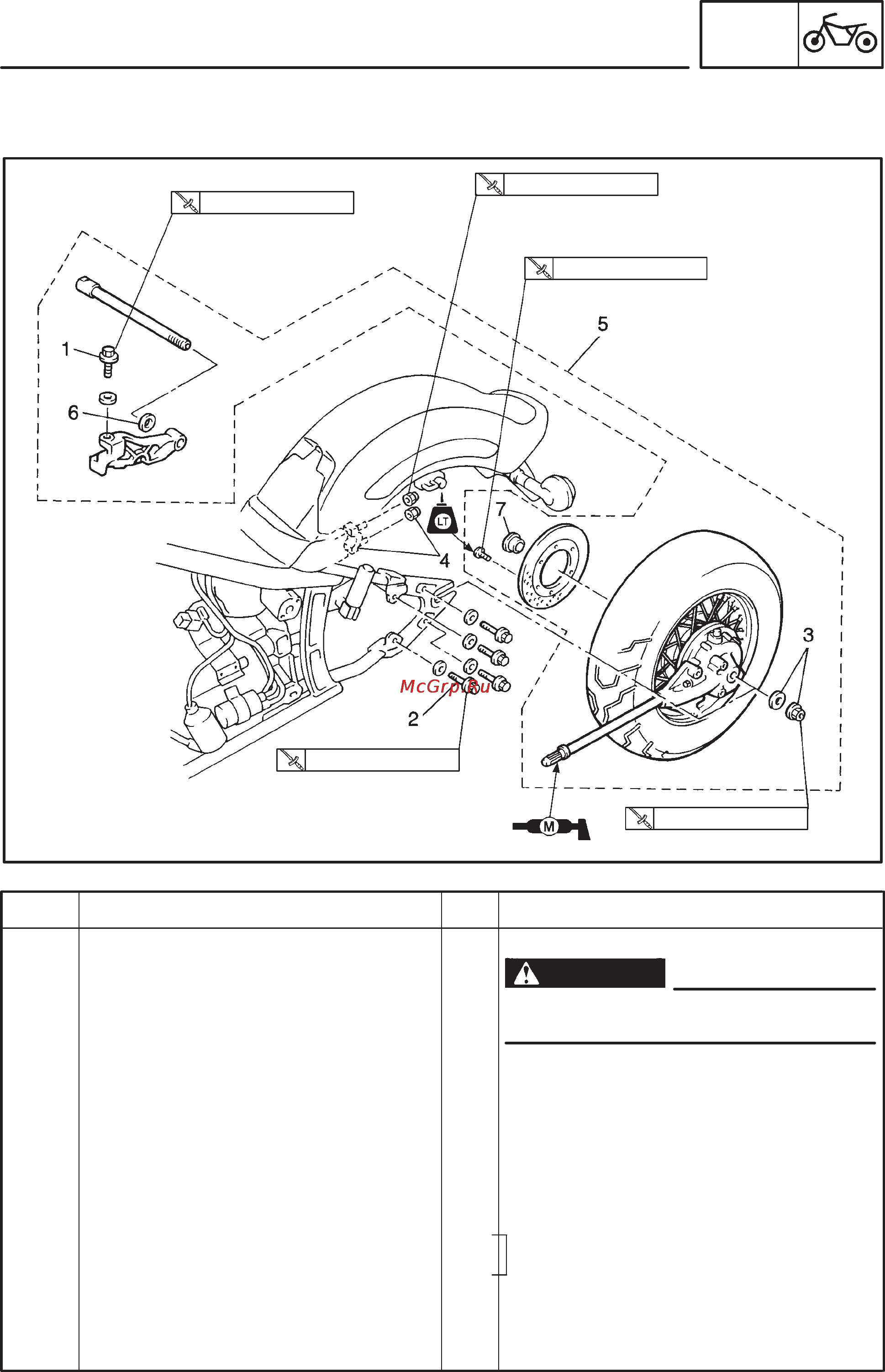

Yamaha DRAG STAR XVS1100 (1999) [215/355] Rear wheel and brake disc
![Yamaha DRAG STAR XVS1100 (1999) [215/355] Rear wheel and brake disc](/views2/1121370/page215/bgd7.png)
6-11
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
Removing the rear wheel
Final gear oil
Fuel tank and seats
Rear fender assembly
Brake caliper bracket bolt
Bolts
Rear axle nut/washer
Rear axle end nuts/axle holder
Rear wheel assembly
Washer
Collar
1
4
1/1
2/1
1
1
1
Remove the parts in the order listed.
Securely support the motorcycle so
there is no danger of it falling over.
Drain
Refer to “FINAL GEAR OIL REPLACE-
MENT” in CHAPTER 3.
Refer to “FUEL TANK AND SEATS” in
CHAPTER 3.
Loosen
For installation, reverse the removal
procedure.
Refer to “REMOVING/INSTAL-
LING THE REAR WHEEL”.
WARNING
40 Nm (4.0mkg)
23 Nm (2.3mkg)
23 Nm (2.3mkg)
90 Nm (9.0mkg)
107 Nm (10.7mkg)
REAR WHEEL AND BRAKE DISC
CHAS
REAR WHEEL
