3-5
ADJUSTING THE VALVE CLEARANCE
INSP
ADJ
NOTE:
EAS00047
ENGINE
ADJUSTING THE VALVE CLEARANCE
The following procedure applies to all of the
valves.
Valve clearance adjustment should be made
on a cold engine, at room temperature.
When the valve clearance is to be measured or
adjusted, the piston must be at top dead center
(TDC) on the compression stroke.

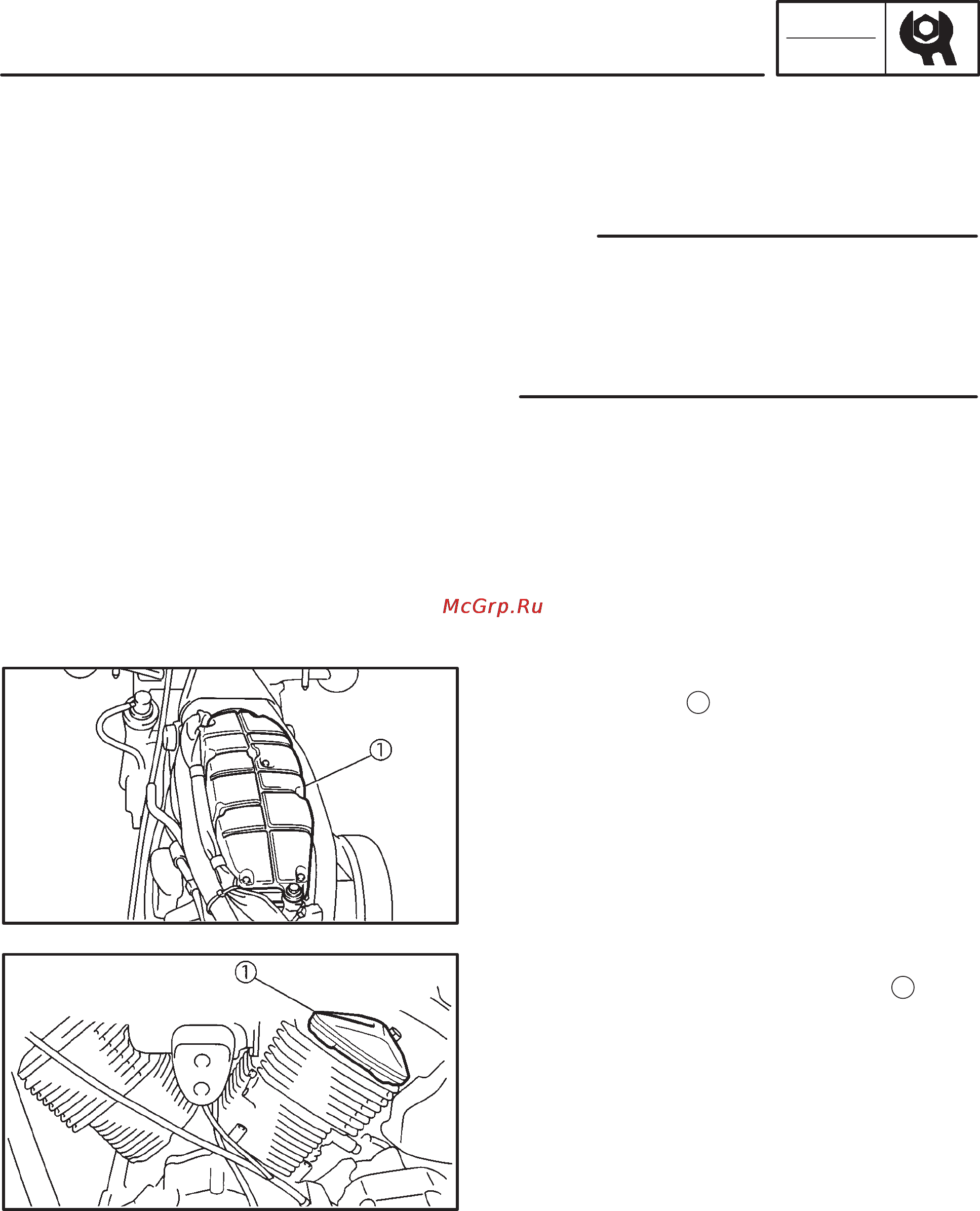

1. Remove:
rider’s seat
fuel tank
Refer to “FUEL TANK AND SEATS”.
2. Disconnect:
spark plug caps
3. Remove:
spark plugs
4. Remove:
air intake box
1
5. Remove:
cylinder head cover (rear cylinder)
1
cylinder head cover (front cylinder)
