Yamaha DRAG STAR XVS1100 (1999) [332/355] Signaling system
![Yamaha DRAG STAR XVS1100 (1999) [332/355] Signaling system](/views2/1121370/page332/bg14c.png)
7-37
Tester positive probe brown
Tester negative probe sky blue
Replace the neutral
indicator light bulb,
socket or both.
NO
YES
The wiring circuit
from the turn signal
switch to the turn sig-
nal light connector is
faulty and must re-
paired.
NO
This circuit is OK.
EAS00800

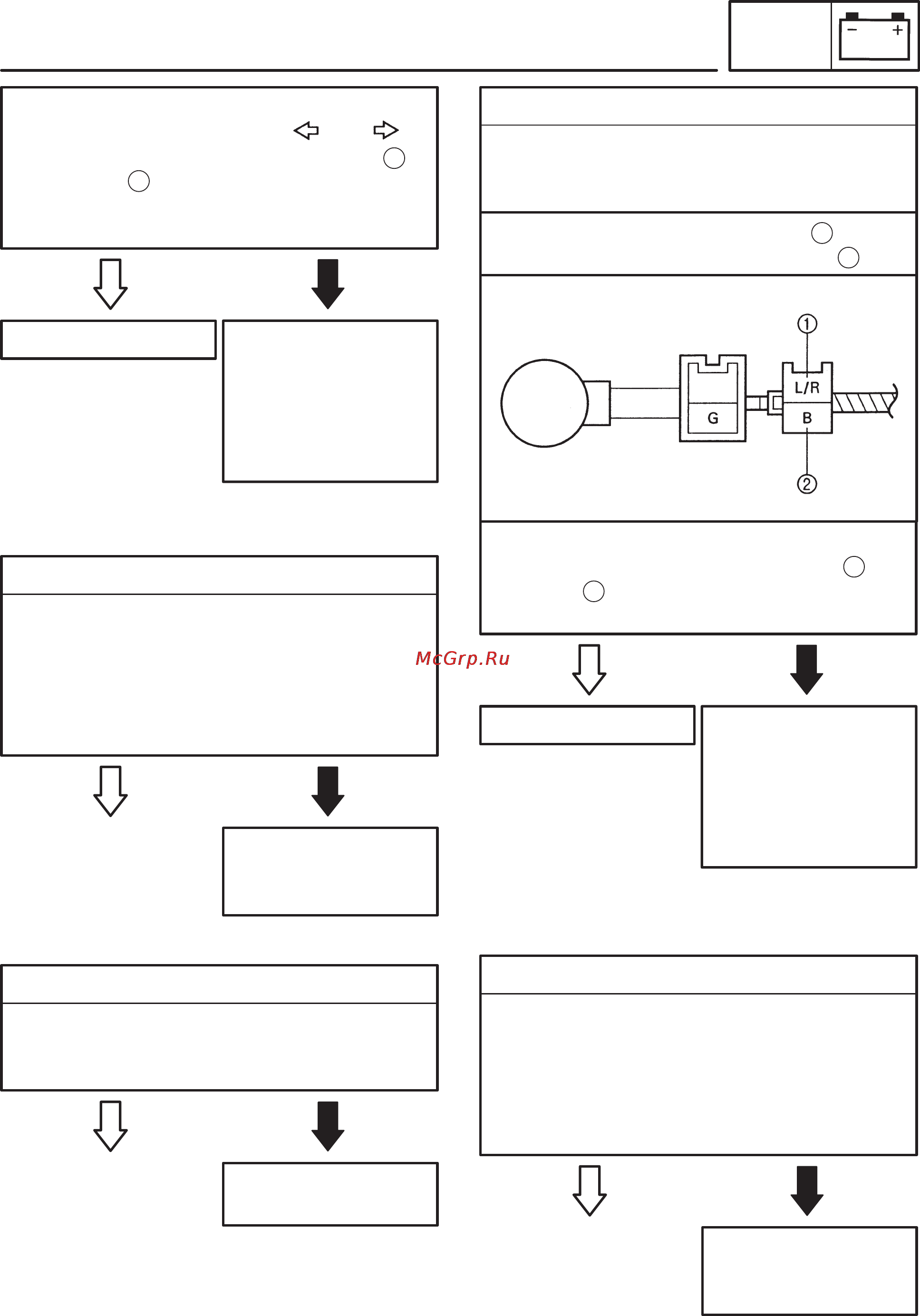

4. The neutral indicator light fails to come on.
1. Neutral indicator light bulb and socket
Check the neutral indicator light bulb and
socket for continuity.
Refer to “CHECKING THE BULBS AND
BULB SOCKETS”.
Are the neutral indicator light bulb and socket
OK?
YES
Set the main switch to “ON”.
Set the turn signal switch to “ ” or “ ”.
Measure the voltage (12 V) of chocolate or
dark green at the turn signal light connec-
tor (wire harness side).
Is the voltage within specification?
1
2
Replace the neutral
switch.
NO
2. Neutral switch
Check the neutral switch for continuity.
Refer to “CHECKING THE SWITCHES”.
Is the neutral switch OK?
YES
3. Voltage
Connect the pockt tester (DC 20V) to the me-
ter assembly coupler (wire harness side) as
shwon.
1
2
YES
The wiring circuit
from the main switch
to the meter light
bulb coupler is faulty
and must be re-
paired.
NO
This circuit is OK.
Set the main switch to “ON”.
Measure the voltage (12 V) of brown and
sky blue at the meter assembly coupler.
Is the voltage with specification?
1
L/R
2
Replace the oil level
warning light bulb,
socket or both.
NO
EAS00802
5. The oil level warning light fails to come on.
1. Oil level warning light bulb and socket
Check the oil level warning light bulb and
socket for continuity.
Refer to “CHECKING THE BULBS AND
BULB SOCKETS”
Are the oil level warning light bulb and socket
OK?
YES
SIGNALING SYSTEM
ELEC
