FRONT WHEEL AND BRAKE DISCS
CHAS
WARNING
NOTE:
NOTE:
NOTE:
WARNING
EAS00521

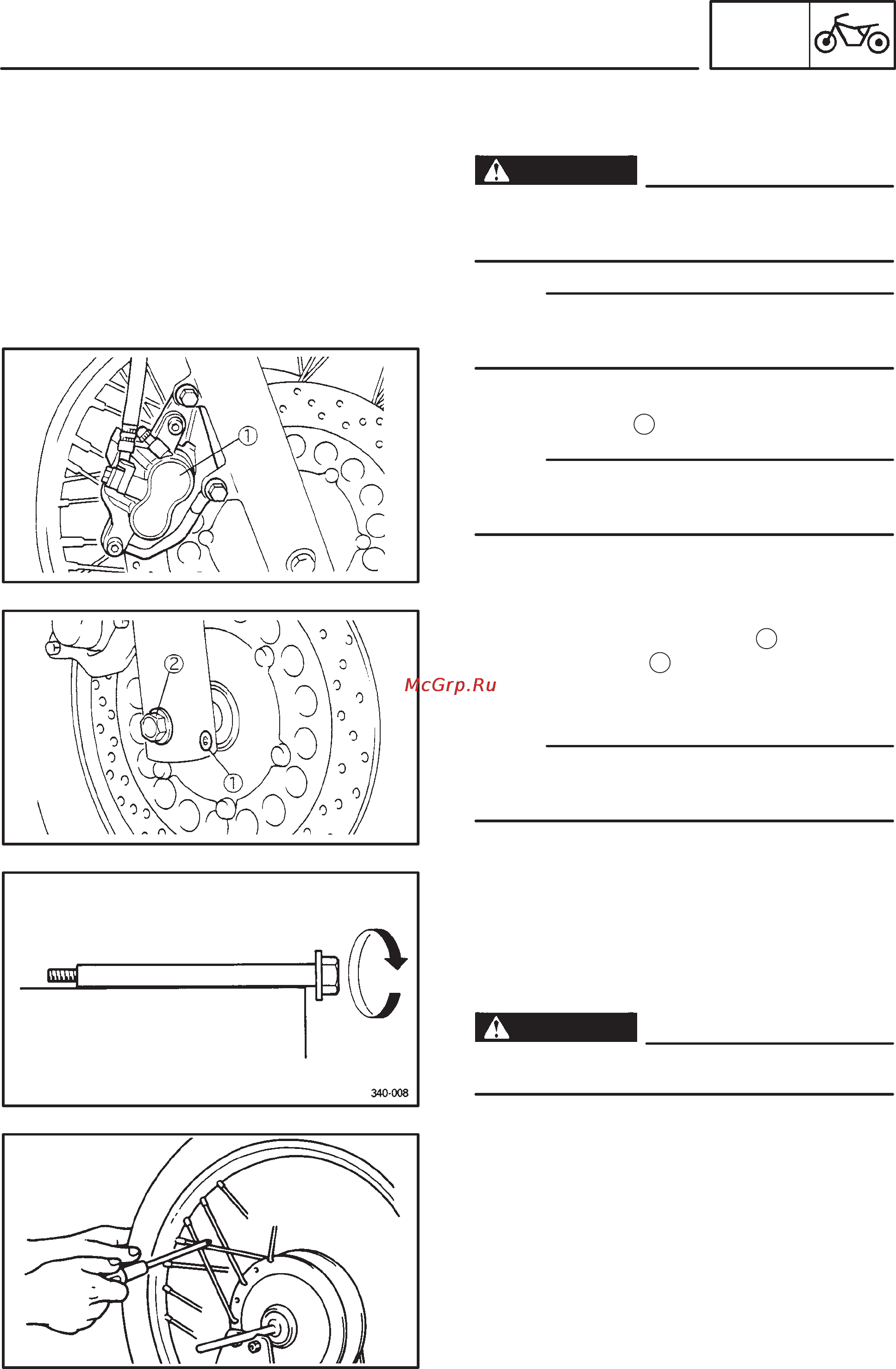

REMOVING THE FRONT WHEEL
1. Stand the motorcycle on a level surface.
Securely support the motorcycle so that
there is no danger of it falling over.
Place the motorcycle on a suitable stand so that
the front wheel is elevated.
2. Remove:
brake calipers
1
(left and right)
Do not squeeze the brake lever when removing
the brake calipers.
3. Loosen:
pinch bolt (front wheel axle)
1
front wheel axle
2
4. Elevate:
front wheel
Place the motorcycle on a suitable stand so that
the front wheel is elevated.
EAS00526
CHECKING THE FRONT WHEEL
1. Check:
wheel axle
Roll the wheel axle on a flat surface.
Bends Replace.
Do not attempt to straighten a bent wheel axle.
2. Check:
tire
front wheel
Damage/wear Replace.
Refer to “CHECKING THE TIRES” and
“CHECKING THE WHEELS” in chapter 3.
3. Check:
spokes
Bends/damage Replace.
Loose Tighten.
Tap the spokes with a screwdriver.
