Yamaha DRAG STAR XVS1100 (1999) [12/355] Gen info
![Yamaha DRAG STAR XVS1100 (1999) [12/355] Gen info](/views2/1121370/page12/bgc.png)
1-4
CHECKING OF CONNECTIONS
GEN
INFO
NOTE:
NOTE:
EB801000

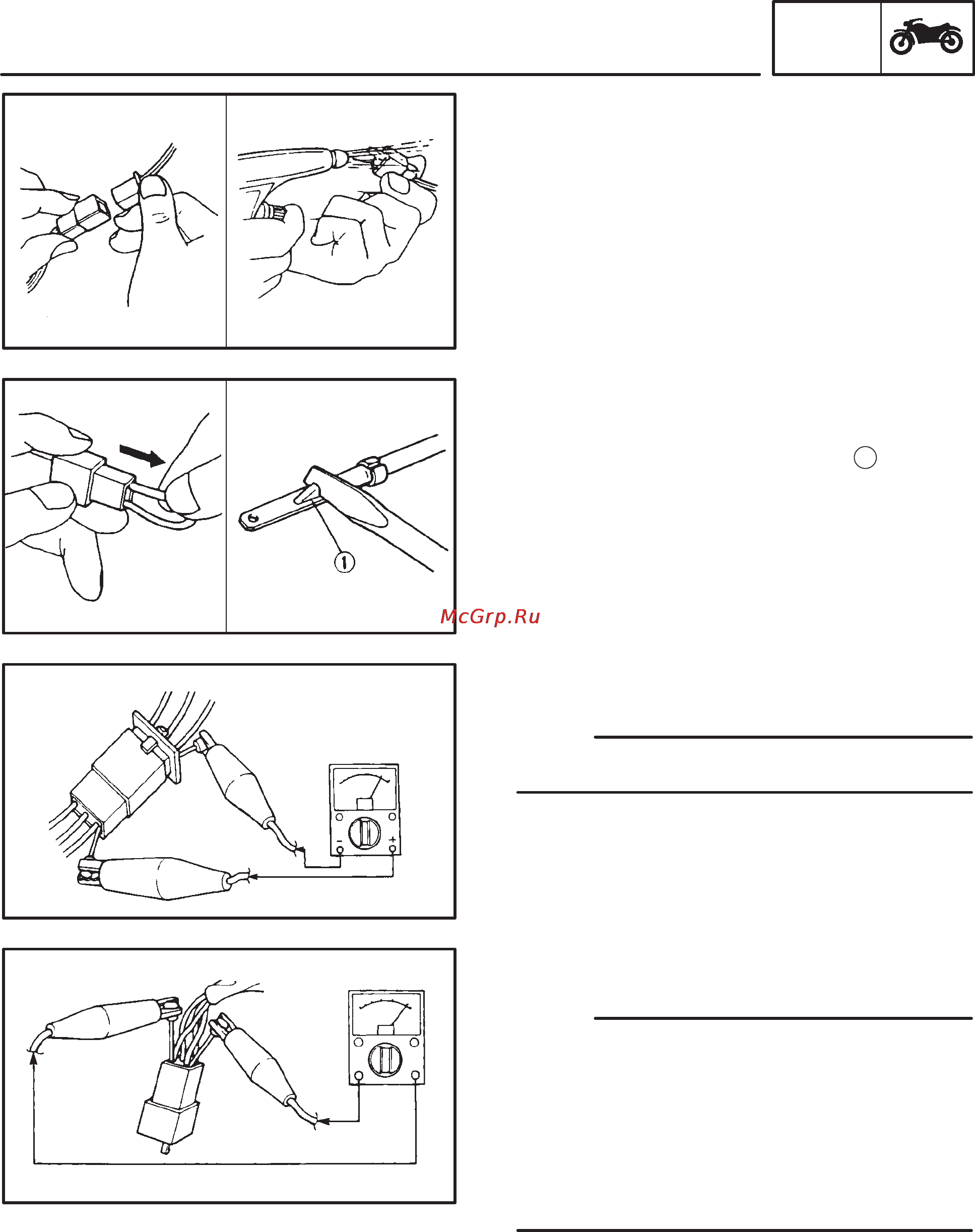

CHECKING OF CONNECTIONS
Check the connectors for stains, rust, moisture,
etc.
1. Disconnect:
Connector
2. Check:
Connector
Moisture Dry each terminal with an air
blower.
Stains/rust Connect and disconnect the
terminals several times.
3. Check:
Connector leads
Looseness Bend up the pin
1
and con-
nect the terminals.
4. Connect:
Connector terminals
The two terminals “click” together.
5. Check:
Continuity (using a pocket tester)
If there is no continuity, clean the terminals.
When checking the wire harness be sure to
perform steps 1 to 3.
As a quick remedy, use a contact revitalizer
available at most part stores.
Check the connector with a pocket tester as
shown.
