Yamaha DRAG STAR XVS1100 (1999) [148/355] Clutch
![Yamaha DRAG STAR XVS1100 (1999) [148/355] Clutch](/views2/1121370/page148/bg94.png)
4-43
CLUTCH
ENG
NOTE:
EAS00286
CHECKING THE PRESSURE PLATE
1. Check:
pressure plate
Cracks/damage Replace.
bearing
Damage/wear Replace.
EAS00285

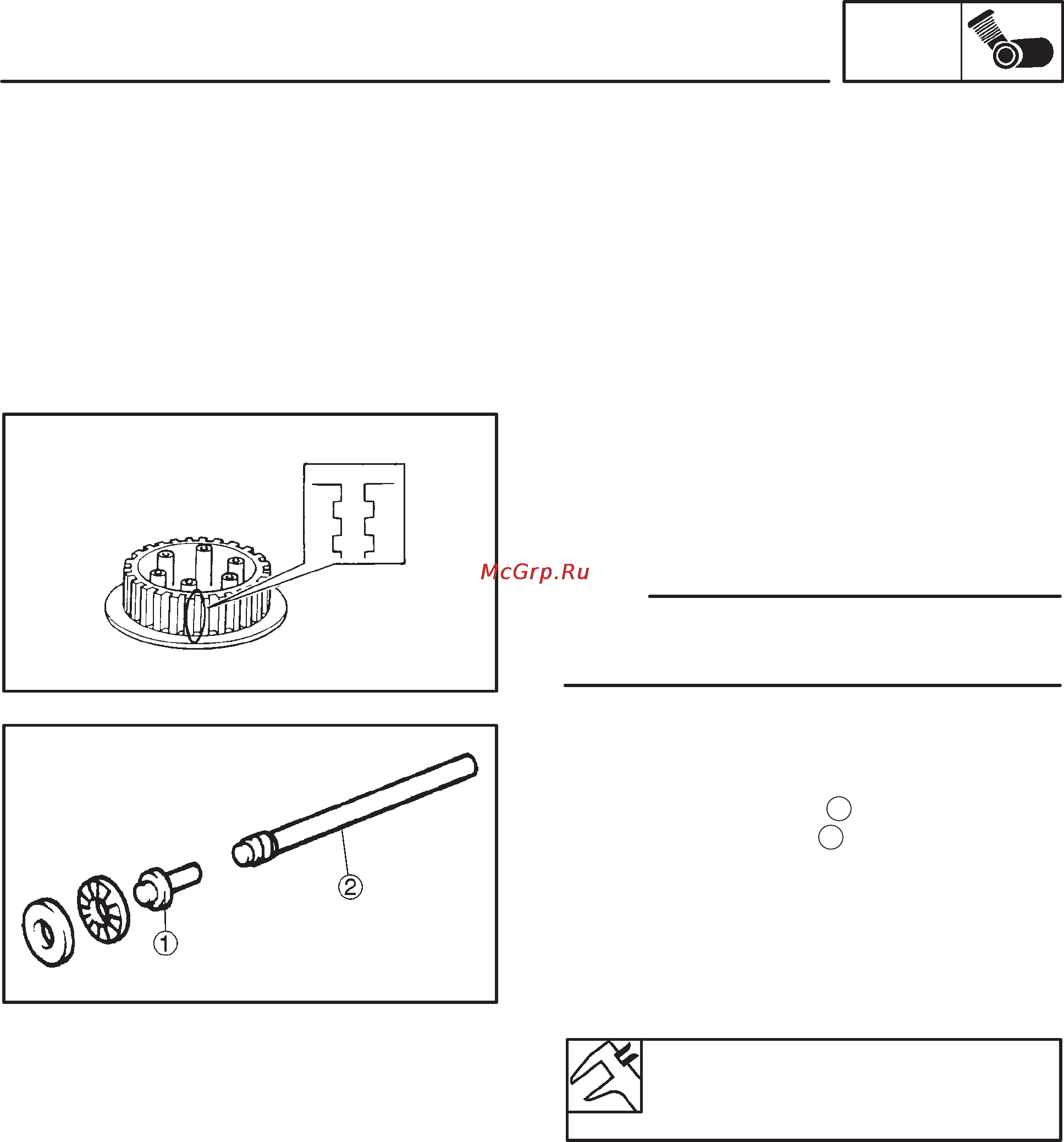

CHECKING THE CLUTCH BOSS
1. Check:
clutch boss splines
Damage/pitting/wear Replace the clutch
boss.
Pitting on the clutch boss splines will cause er-
ratic clutch operation.
EAS00288
CHECKING THE CLUTCH PUSH RODS
1. Check:
short clutch push rod
1
long clutch push rod
2
Cracks/damage/wear Replace the de-
fective part(-s).
2. Measure:
long clutch push rod bending limit
Out of specification Replace the long
clutch push rod.
Long clutch push rod bending
limit
0.5 mm
