6-71
REAR SHOCK ABSORBER AND SWINGARM
CHAS

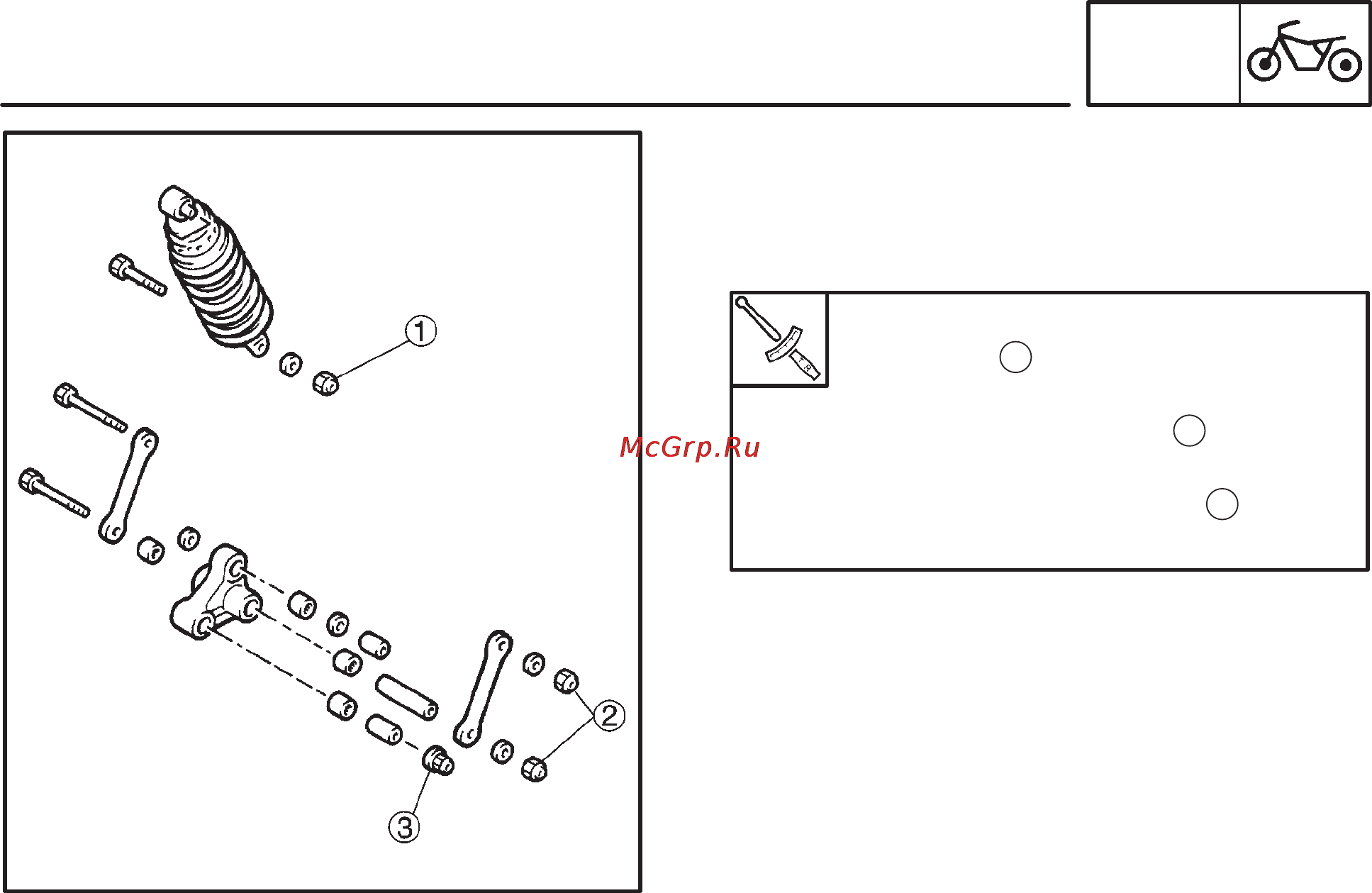

2. Install:
relay arm
left connecting arm
right connecting arm
Rear-shock-absorber-assembly
lower nut
1
48 Nm (4.8 mkg)
Connecting arm nuts
2
48 Nm (4.8 mkg)
Relay-arm-to-frame-nut
3
48 Nm (4.8 mkg)
3. Install:
rear shock absorber
Reter to “INSTALLING THE REAR SHOCK
ABSORBER ASSEMBLY”.
4. Install:
rear wheel
Refer to “REAR WHEEL AND BRAKE
DISC”.
