1-6

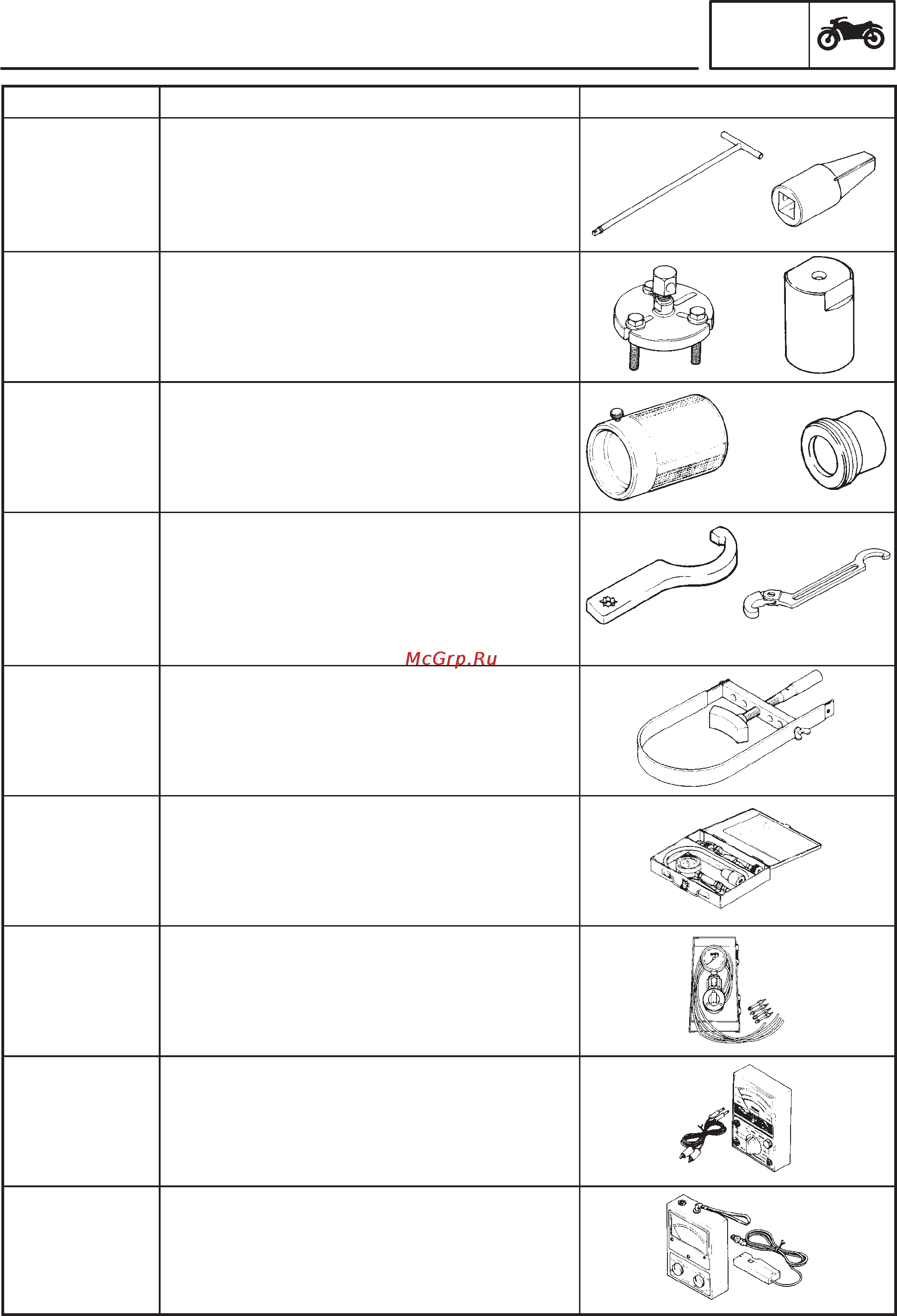

SPECIAL TOOLS
GEN
INFO
Tool No. Tool name/How to use Illustration
T-handle
90890-01326
Holder
90890-01460
T-handle/damper rod holder
These tools are needed to loosen and tighten
the damper rod holding bolt.
Puller
90890-01362
Adapter
90890-04131
Flywheel puller/adapter
These tools are needed to remove the rotor.
Weight
90890-01367
Adapter
90890-01381
Fork seal driver weight/adapter
These tools are needed when installing the
slide metal, oil seal and dust seal into the fork.
Ring nut wrench
90890-01403
Exhaust nut
wrench
90890-01268
Ring nut wrench/ehaust and steering nut
wrench
This tool is needed to loosen and tighten the
steering stem ring nut.
90890-01701
Sheave holder
This tool is needed to hold the rotor when re-
moving or installing the rotor bolt.
90890-03081
Compression gauge set
These tools are needed to measure engine
compression.
90890-03094
Vacuum gauge
This gauge is needed for carburetor synchro-
nization.
90890-03112
Pocket tester
This instrument is needed for checking the
electrical system.
90890-03113
Engine tachometer
This tool is needed for observing engine r/min.
