4-5
ENGINE
ENG
NOTE:
EAS00192

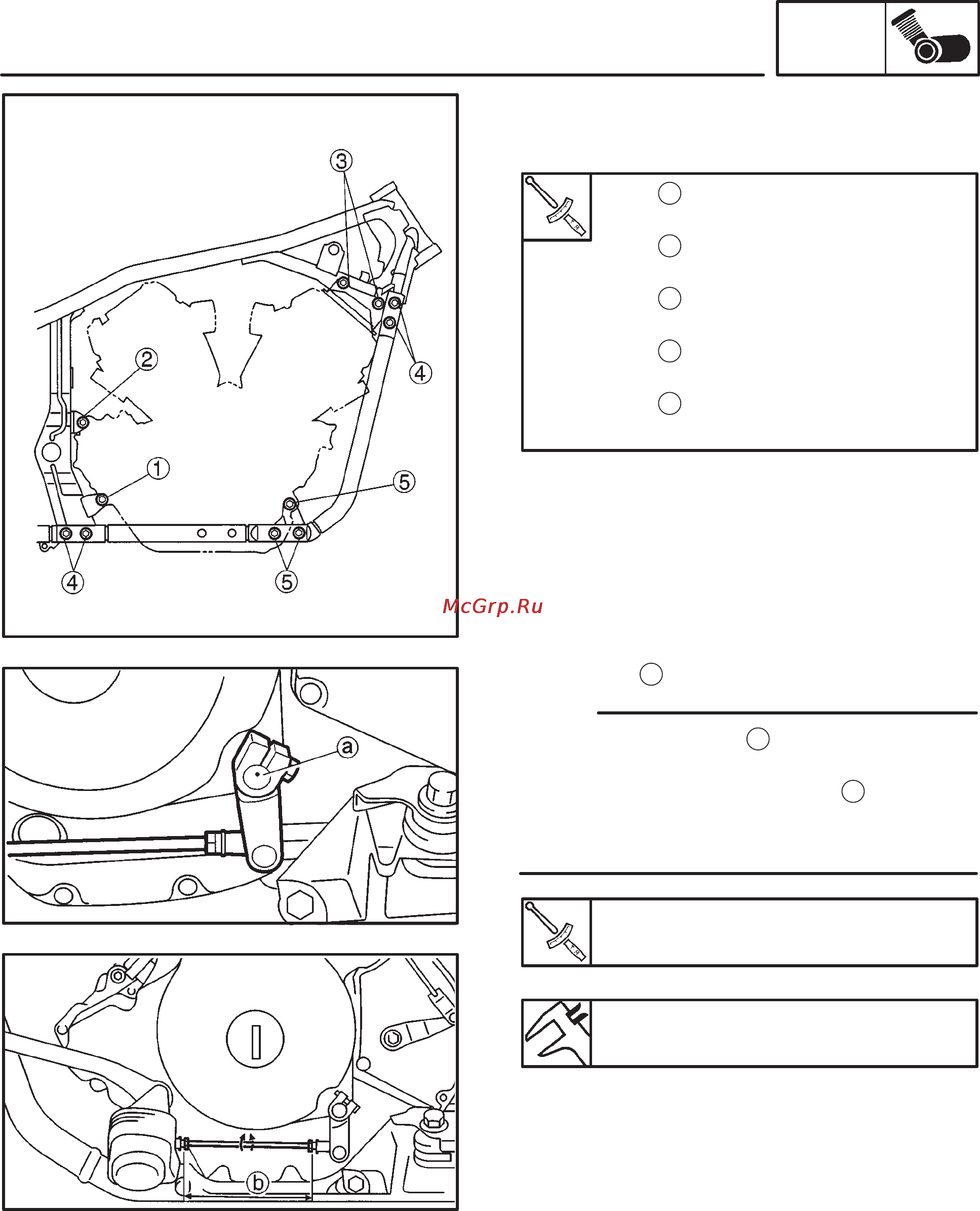

INSTALLING THE ENGINE
1. Tighten the bolts in the following order.
Bolt
1
:
48 Nm (4.8 mkg)
Bolt
2
:
48 Nm (4.8 mkg)
Bolt
3
:
48 Nm (4.8 mkg)
Bolt
4
:
48 Nm (4.8 mkg)
Bolt
5
:
48 Nm (4.8 mkg)
2. Install:
shift arm
1
Align the punch mark
a
in the shift shaft with
the slot in the shift arm.
Adjust the adjusting bolt length
b
.
Refer to “ADJUSTING THE SHIFT PEDAL” in
chapter 3.
Shift arm bolt
10Nm (1.0mkg)
Adjusting bolt length
114.7mm
