Yamaha DRAG STAR XVS1100 (1999) [19/355] Specifications
![Yamaha DRAG STAR XVS1100 (1999) [19/355] Specifications](/views2/1121370/page19/bg13.png)
2-1

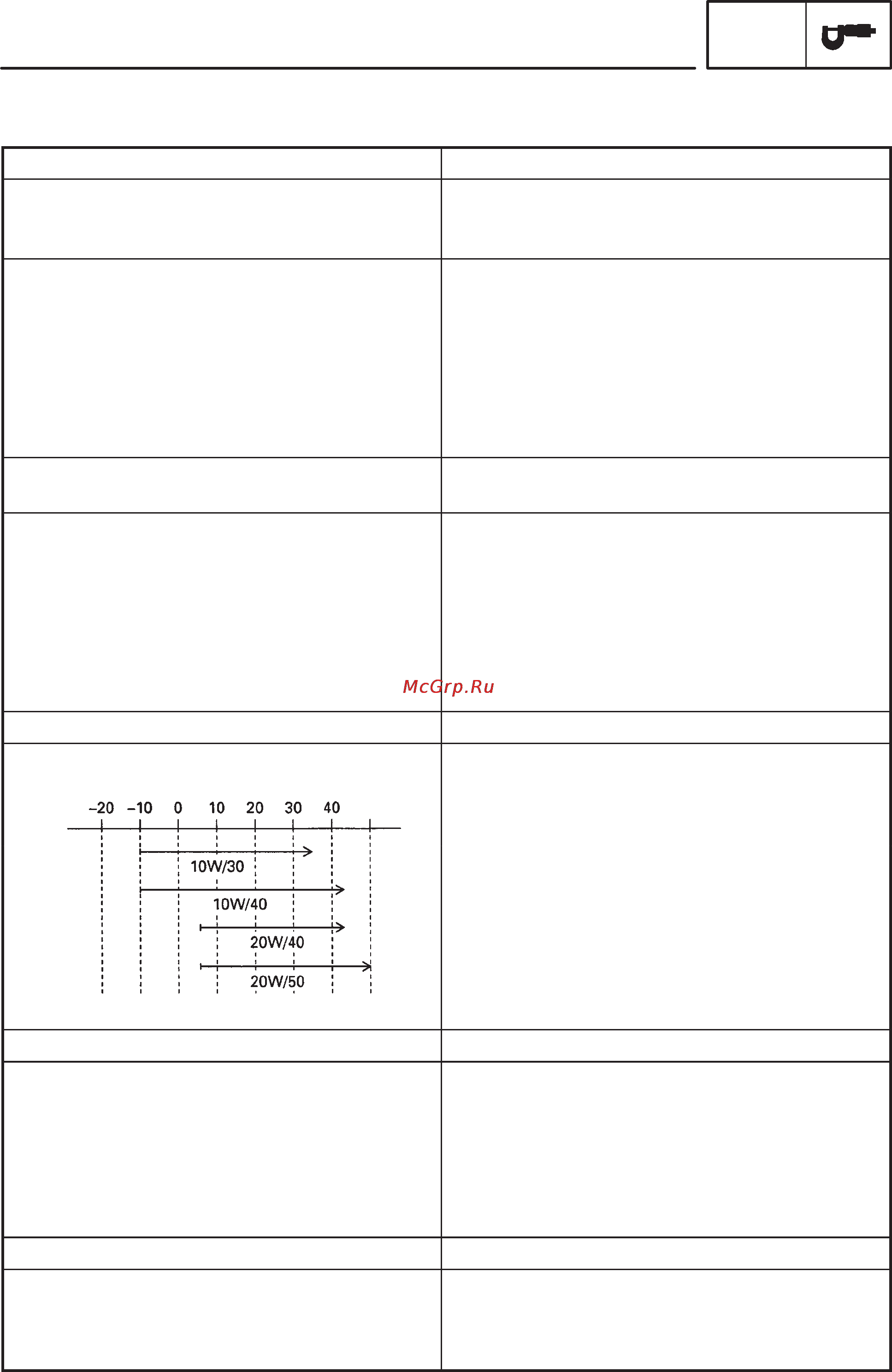

GENERAL SPECIFICATIONS
SPEC
Temp. C
SPECIFICATIONS
GENERAL SPECIFICATIONS
Item
Standard
Model code: XVS1100: 5EL1 (For Europe)
5EL2 (For D, A, FIN)
5EL3 (For Australia)
Dimensions:
Overall length
Overall width
Overall height
Seat height
Wheelbase
Minimum ground clearance
Minimum turning radius
2,405 mm
895 mm
1,095 mm
690 mm
1,640 mm
145 mm
3,200 mm
Basic weight:
With oil and a full fuel tank
274 kg (5EL2 : 275kg)
Engine:
Engine type
Cylinder arrangement
Displacement
Bore stroke
Compression ratio
Compression pressure (STD)
Starting system
Air cooled 4-stroke, SOHC
V-type 2-cylinder
1.063 L
95 75mm
8.3 : 1
1,000 kPa (10 kg/cm
2
, 10 bar) at 400 r/min
Electric starter
Lubrication system: Wet sump
Oil type or grade:
Engine oil
API standard:
“SE” or higher grade
ACEA standard:
G4 or G5
Final gear oil: SAE80API “GL-4” Hypoid Gear Oil
Oil quantity:
Engine oil
Periodic oil change
With oil filter replacement
Total amount
Final gear case oil
Total amount
3.0 L
3.1 L
3.6 L
0.2 L
Air filter: Dry type element
Fuel:
Type
Fuel tank capacity
Fuel reserve amount
Regular unleaded gasoline
17 L
4.5 L
