Yamaha DRAG STAR XVS1100 (1999) [229/355] Front and rear brakes
![Yamaha DRAG STAR XVS1100 (1999) [229/355] Front and rear brakes](/views2/1121370/page229/bge5.png)
6-25
Order Job name/Part name Q’ty Remarks

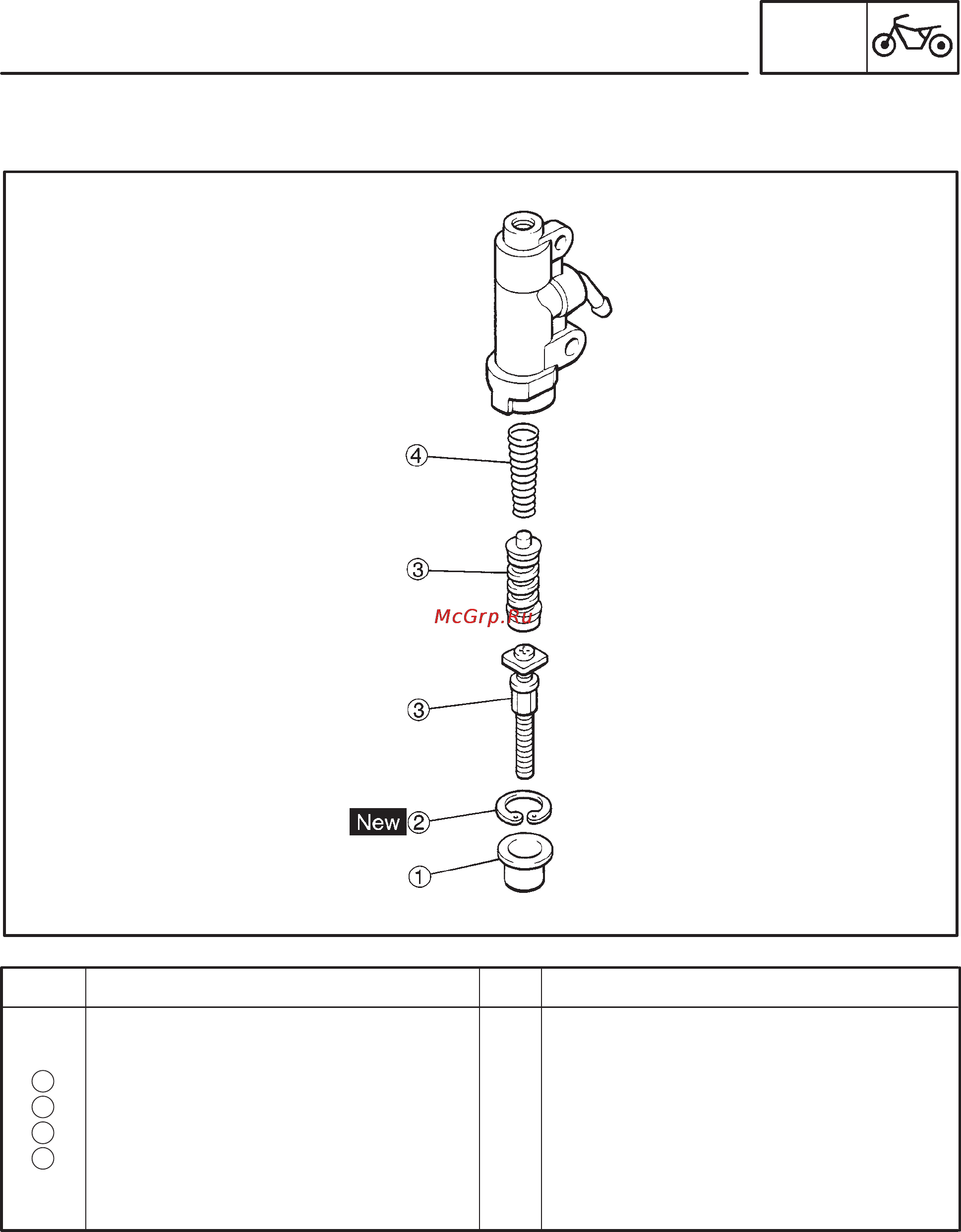

Disassembling the rear brake master
cylinder
Master cylinder boot
Circlip
Master cylinder cup
Spring
1
1
1
1
Disassembly the parts in the order listed.
For assembly, reverse the disassembly
procedure.
1
2
3
4
FRONT AND REAR BRAKES
CHAS
