Yamaha DRAG STAR XVS1100 (1999) [182/355] Middle gear
![Yamaha DRAG STAR XVS1100 (1999) [182/355] Middle gear](/views2/1121370/page182/bgb6.png)
4-77
MIDDLE GEAR
ENG
110 Nm (11.0 mkg)
NOTE:
NOTE:
3. Check:
O-ring
oil seal
Damage Replace the defective part(-s).
4. Check:
universal joint movement
Rough movement Replace the universal
joint.
EAS00441

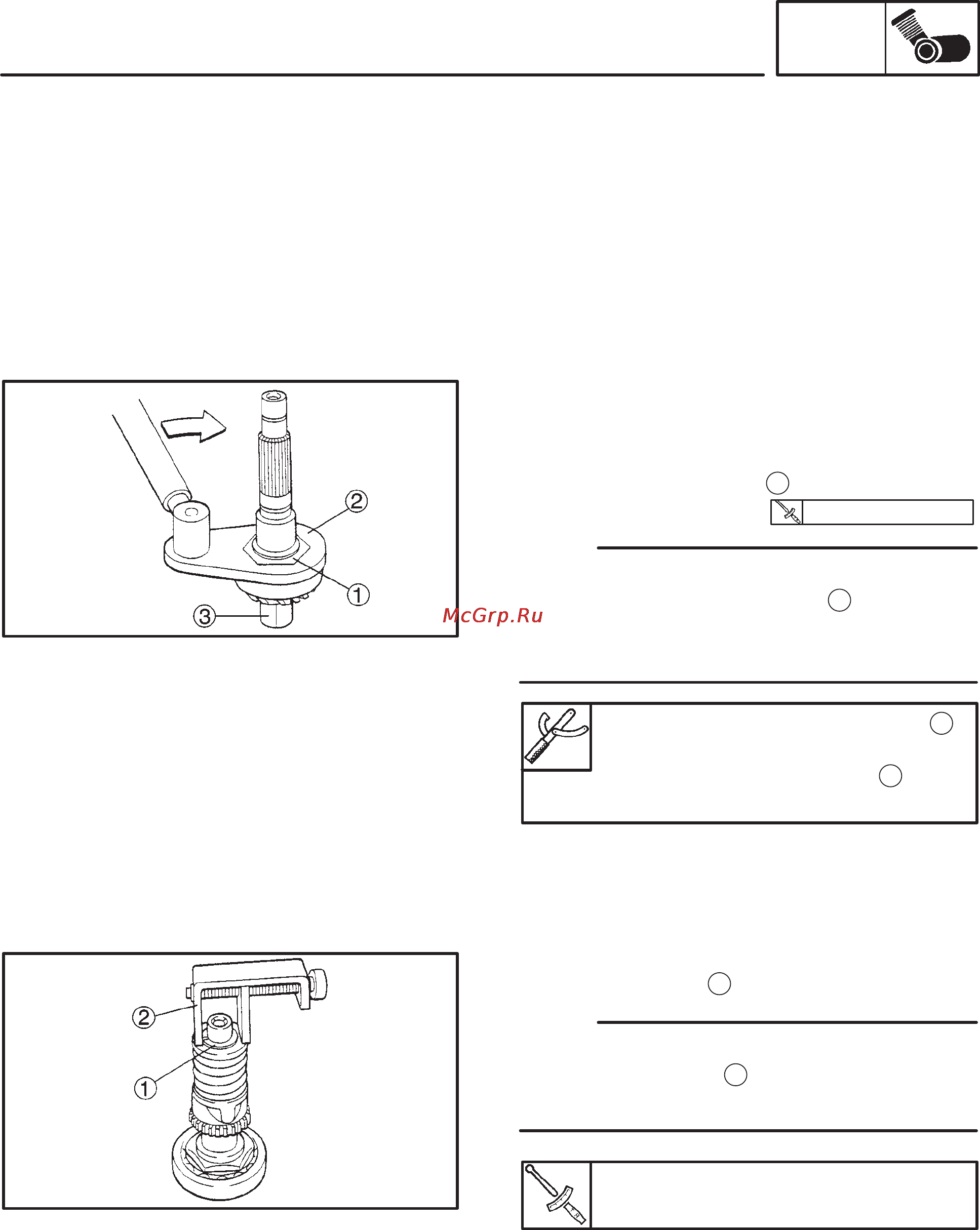

ASSEMBLING THE MIDDLE DRIVE SHAFT
ASSEMBLY
1. Tighten:
middle drive shaft nut
1
Set the torque wrench at a right angle to the
middle drive shaft nut wrench
2
.
Lock the threads on the middle drive shaft nut
by staking them with a center punch.
Middle drive shaft nut wrench
2
90890-04138
Middle drive shaft holder
3
90890-04055
2. Install:
spring retainers
1
While compress the spring with the damper
spring compressor
2
, and then install the
spring retainers.
Damper spring compressor
90890-04090
