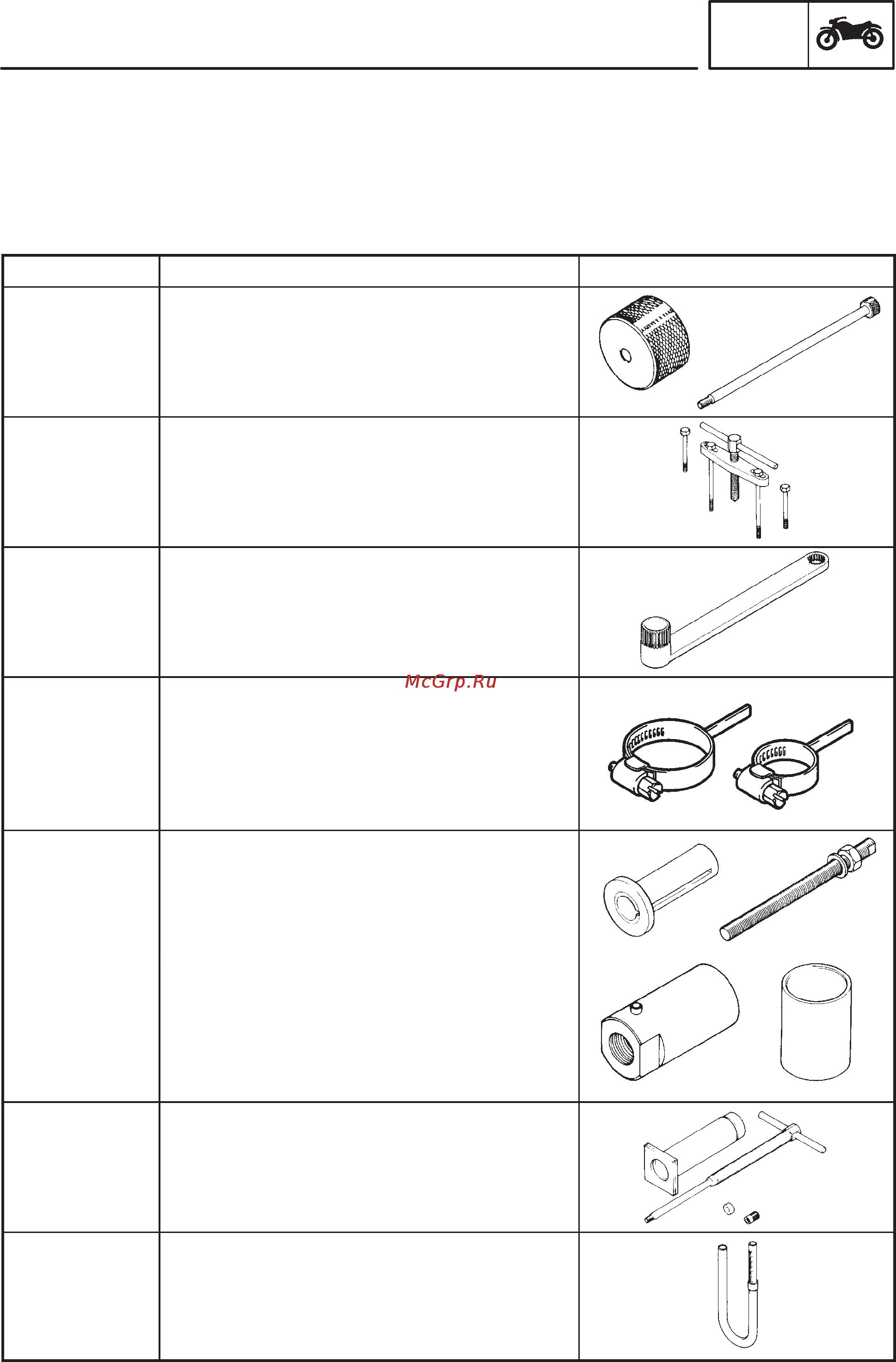

![Yamaha DRAG STAR XVS1100 (1999) [13/355] Gen info](/views2/1121370/page13/bgd.png)
1-5
SPECIAL TOOLS
GEN
INFO
EB102001
SPECIAL TOOLS
The following special tools are necessary for complete and accurate tune-up and assembly. Use only
the appropriate special tools; this will help prevent damage caused by the use of inappropriate tools or
improvised techniques. Special tools may differ by shape and part number from country to country. In
such a case, two types are provided.
When placing an order, refer to the list provided below to avoid any mistakes.
Tool No.
Tool name/How to use Illustration
Weight
90890-01084
Bolt
90890-01085
Slide hammer bolt/weight
These tools are used to remove the rocker
arm shaft.
90890-01135
Crankcase separating tool
This tool is used to remove the crankshaft.
90890-01229
Coupling gear/Middle shaft tool
This tool is needed when removing or
installing the final pinion shaft nut.
Final gear
backlash band
90890-01230
Middle gear
backlash band
90890-01231
Final gear backlash band
This tool is needed when measuring final gear
/middle gear backlash.
Installer pot
90890-01274
Bolt
90890-01275
Crankshaft installer pot/bolt/adapter/spacer
90890 01275
Adaptor
90890-04130
Spacer
90890-04060
These tools are used to install the crankshaft.
90890-01304
Piston pin puller
This tool is used to remove the piston pin.
90890-01312
Fuel level gauge
This gauge is used to measure the fuel level
in the float chamber.
