7-11

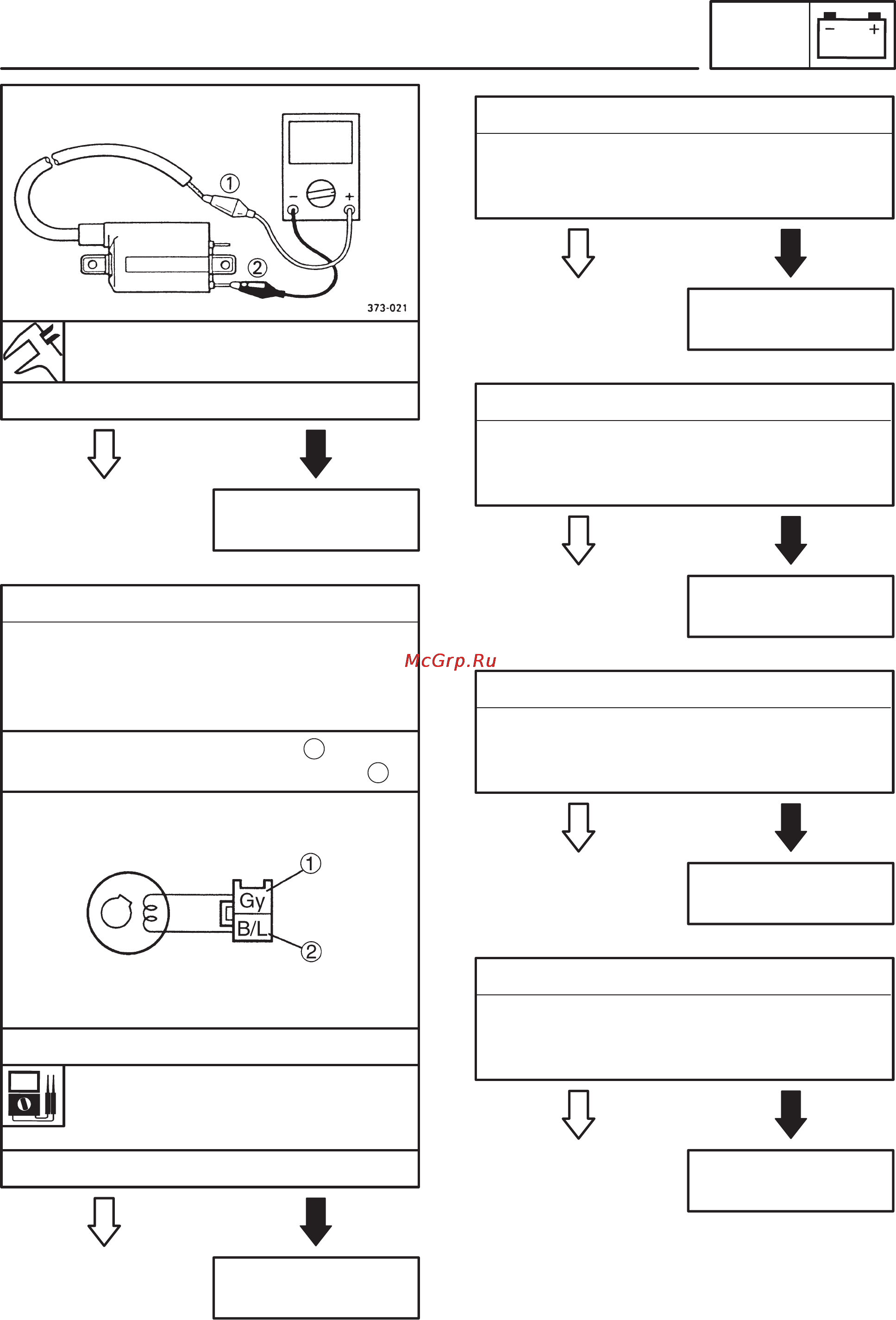

IGNITION SYSTEM
ELEC
Secondary coil resistance
10.7 X 14.5 kΩ 20 _C
S Is the ignition coil OK?
YES
Replace the ignition
coil.
NO
EAS00748
7. Pickup coil resistance
S Disconnect the pickup coil coupler from the
wire harness.
S Connect the pocket tester (Ω 100) to the
pickup coil terminal.
Pickup coil resistance
189 X 231 Ω at 20 _C
(between gray and black/blue)
S Is the pickup coil OK?
YES
Replace the pickup
coil.
NO
Tester positive probe gray
Tester negative probe black/blue
1
2
S Measure the pickup coil resistance.
EAS00749
S Check the main switch for continuity.
Refer to “CHECKING THE SWITCHES”.
S Is the main switch OK?
YES
Replace the main
switch.
NO
8. Main switch
EAS00750
S Check the engine stop switch for continuity.
Refer to “CHECKING THE SWITCHES”.
S Is the engine stop switch OK?
YES
Replace the right
handlebar switch.
NO
9. Engine stop switch
EAS00751
S Check the neutral switch for continuity.
Refer to “CHECKING THE SWITCHES”.
S Is the neutral switch OK?
YES
Replace the neutral
switch.
NO
10. Neutral switch
EAS00752
S Check the sidestand switch for continuity.
Refer to “CHECKING THE SWITCHES”.
S Is the sidestand switch OK?
YES
Replace the side-
stand switch.
NO
11. Sidestand switch
