Konica Minolta CF2002P [104/162] Printer panel messages chapter 5

5.4 When the Message “Paper jam at Jx” Appears

5-36 CF2002/CF3102

Printer Panel Messages Chapter 5

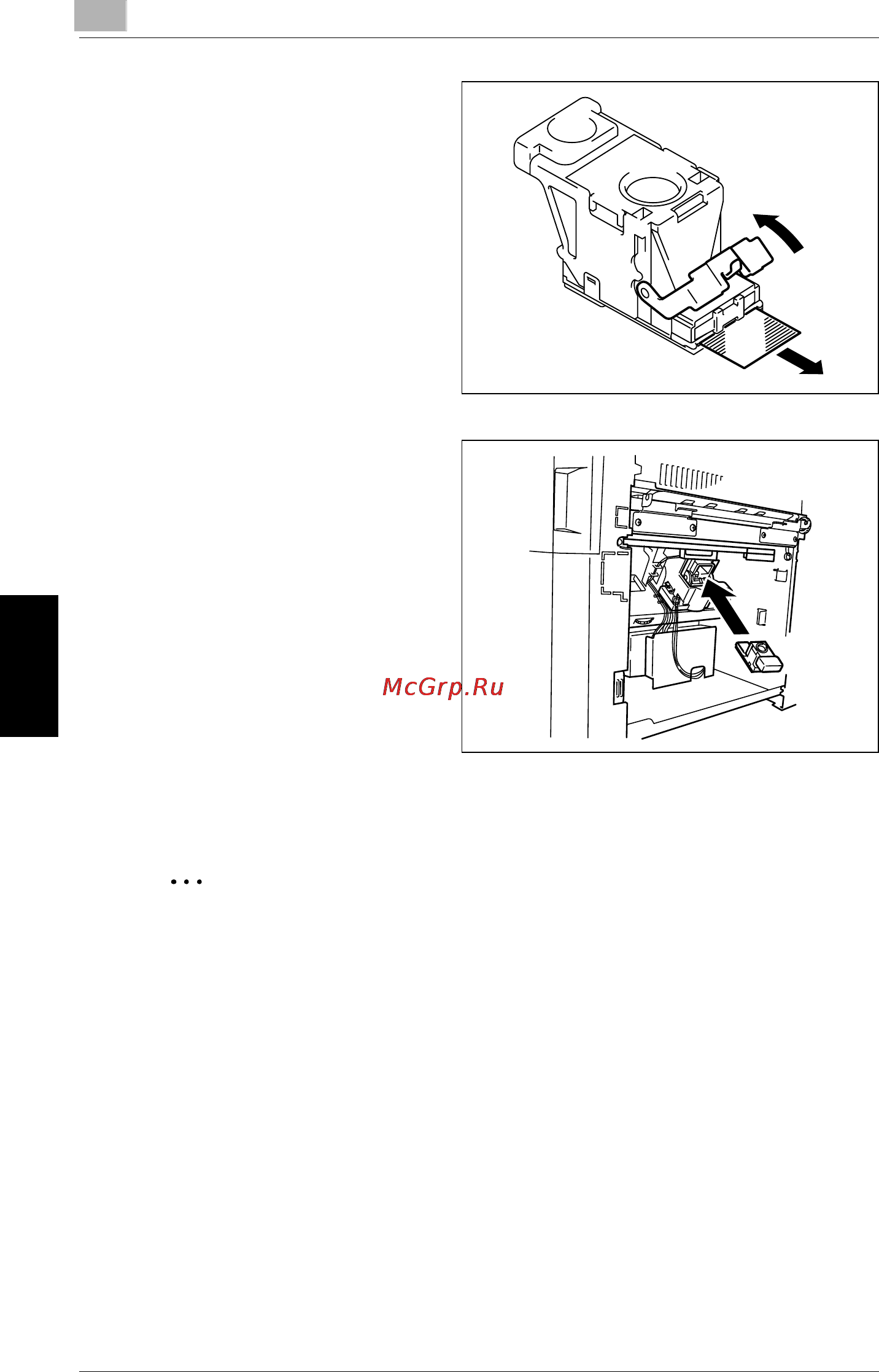

4 Push the staple holder guide up,

and then pull out one sheet of

staples.

5 Move the guide back to its original

position.

6 Insert the staple holder until it

locks into place.

7 Slide the finisher back against the printer.



Note

If stapling still cannot be performed, even after performing the above

procedure, contact your technical representative.
