Konica Minolta CF2002P [90/162] To clear a paper misfeed inside the printer

5.4 When the Message “Paper jam at Jx” Appears

5-22 CF2002/CF3102

Printer Panel Messages Chapter 5

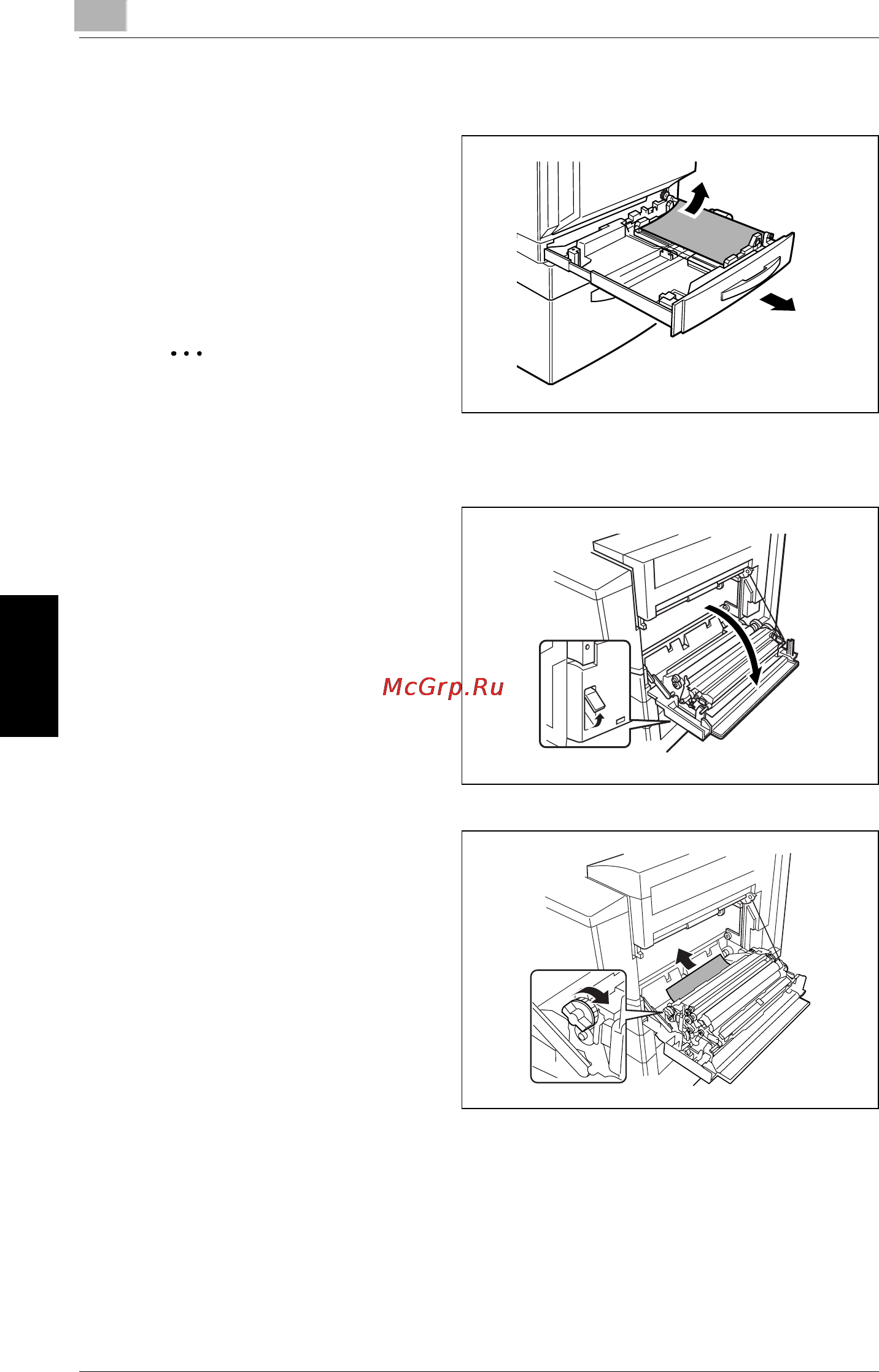

To clear a paper misfeed inside the printer

1 Pull out the paper drawer being

used, and then remove any paper

remaining in the drawer.

2 Load the paper in the drawer

again, and then close the drawer.



Note

Be careful not to touch the

surface of the paper take-up

roller with your hands.

3 Pull up the lock release lever to

open the right-side door.

4 Turn the knob on the inside of the

right-side door clockwise to feed

out the paper.
