Konica Minolta CF2002P [105/162] To clear jammed staples in fn 8

5.4 When the Message “Paper jam at Jx” Appears

CF2002/CF3102 5-37

Printer Panel Messages Chapter 5

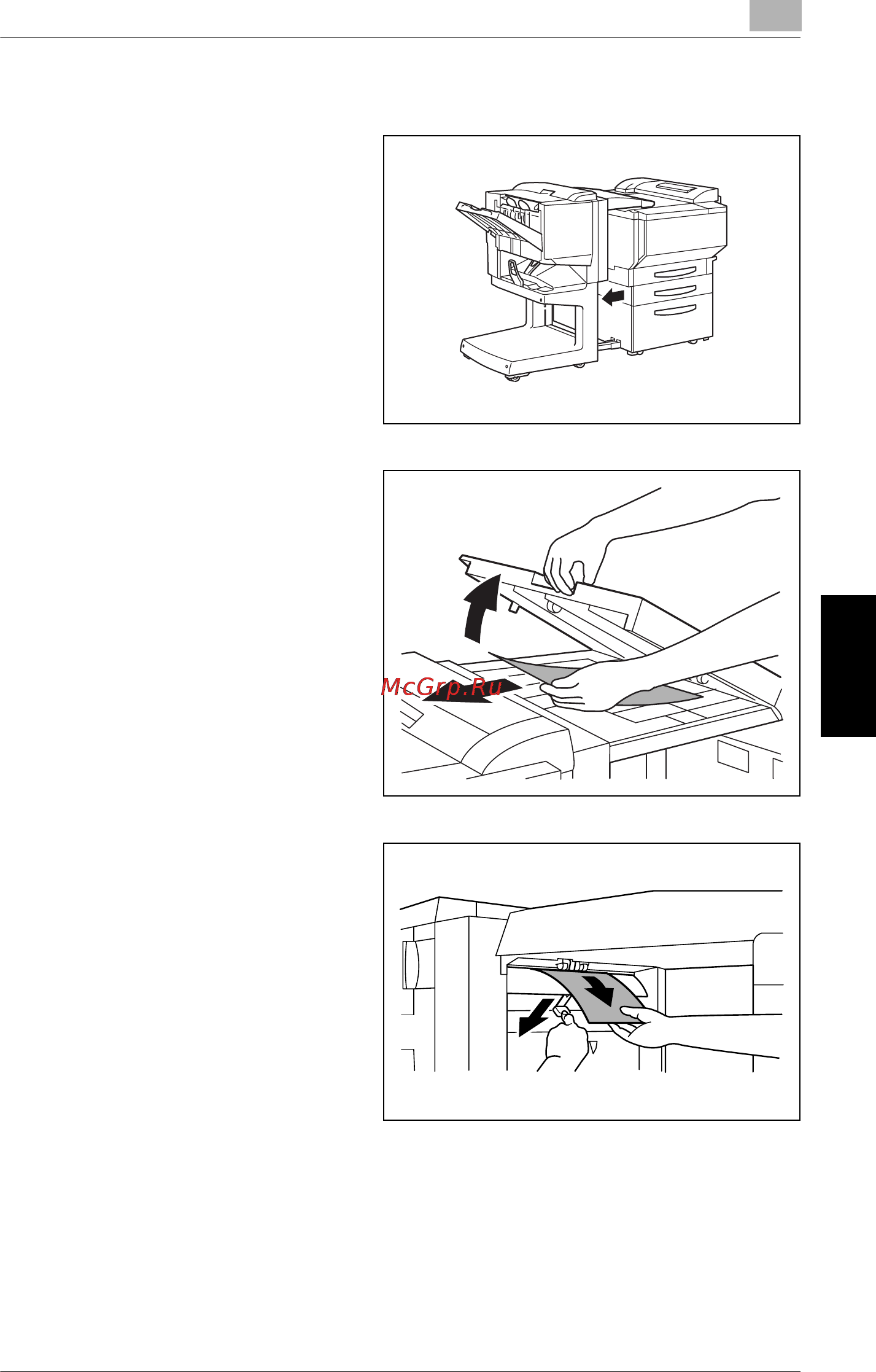

To clear jammed staples in FN-8

1 Slide the finisher away from the

printer.

2 Open the cover of the horizontal

transport unit.

3 Remove any paper, and then

close the cover of the horizontal

transport unit.

4 Open the feed guide for the

finisher, and then remove any

paper.
