5.4 When the Message “Paper jam at Jx” Appears

5-30 CF2002/CF3102

Printer Panel Messages Chapter 5

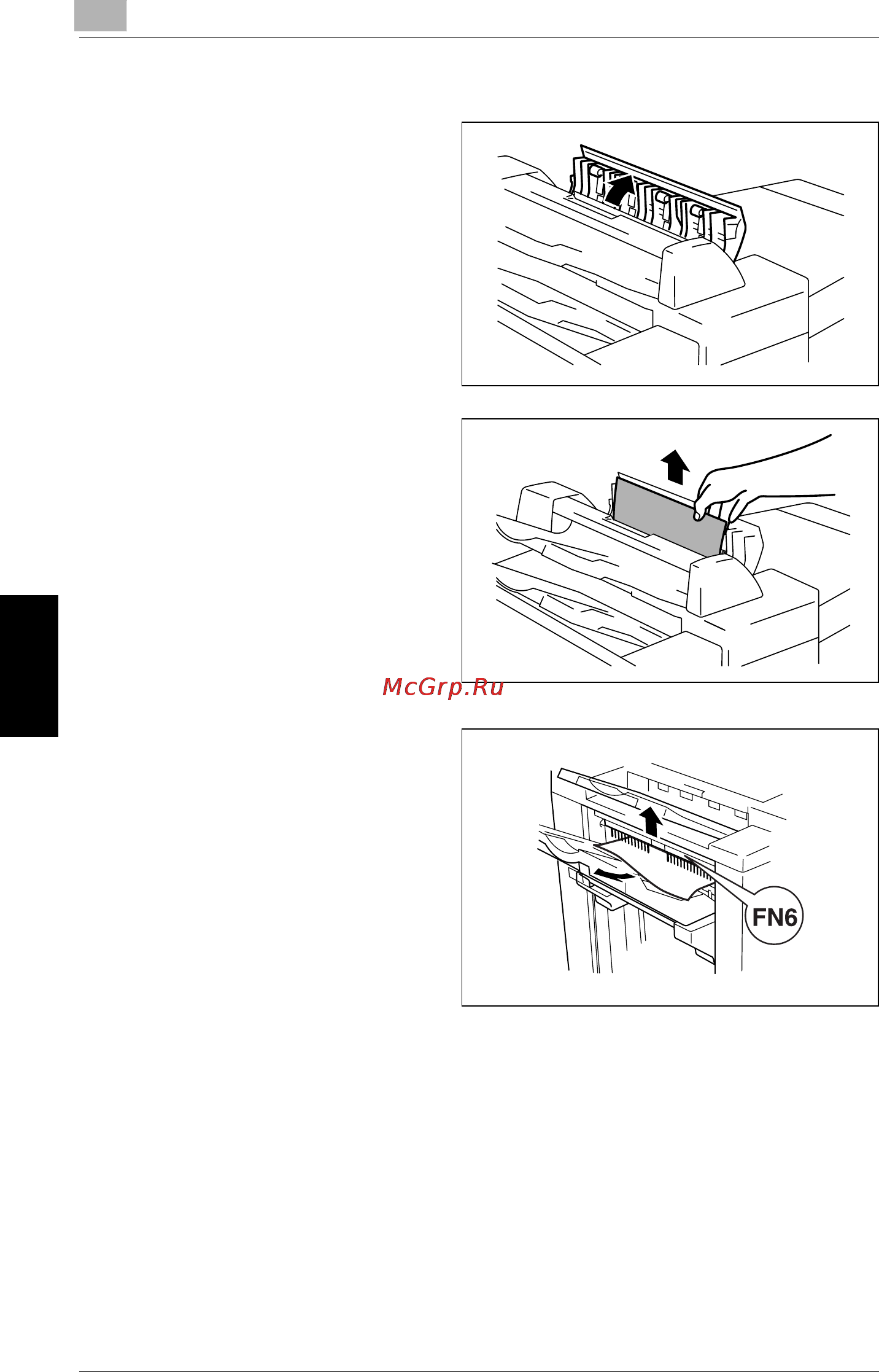

13 If the Option tray is installed:

Open the Option tray.

14 Remove any misfed paper.

15 Close the Option tray.

16 While holding misfeed-clearing

guide FN6 open, pull out any

paper.

17 Slide the finisher back against the

printer.
