7.2 Care of the Printer

CF2002/CF3102 7-9

Appendix Chapter 7

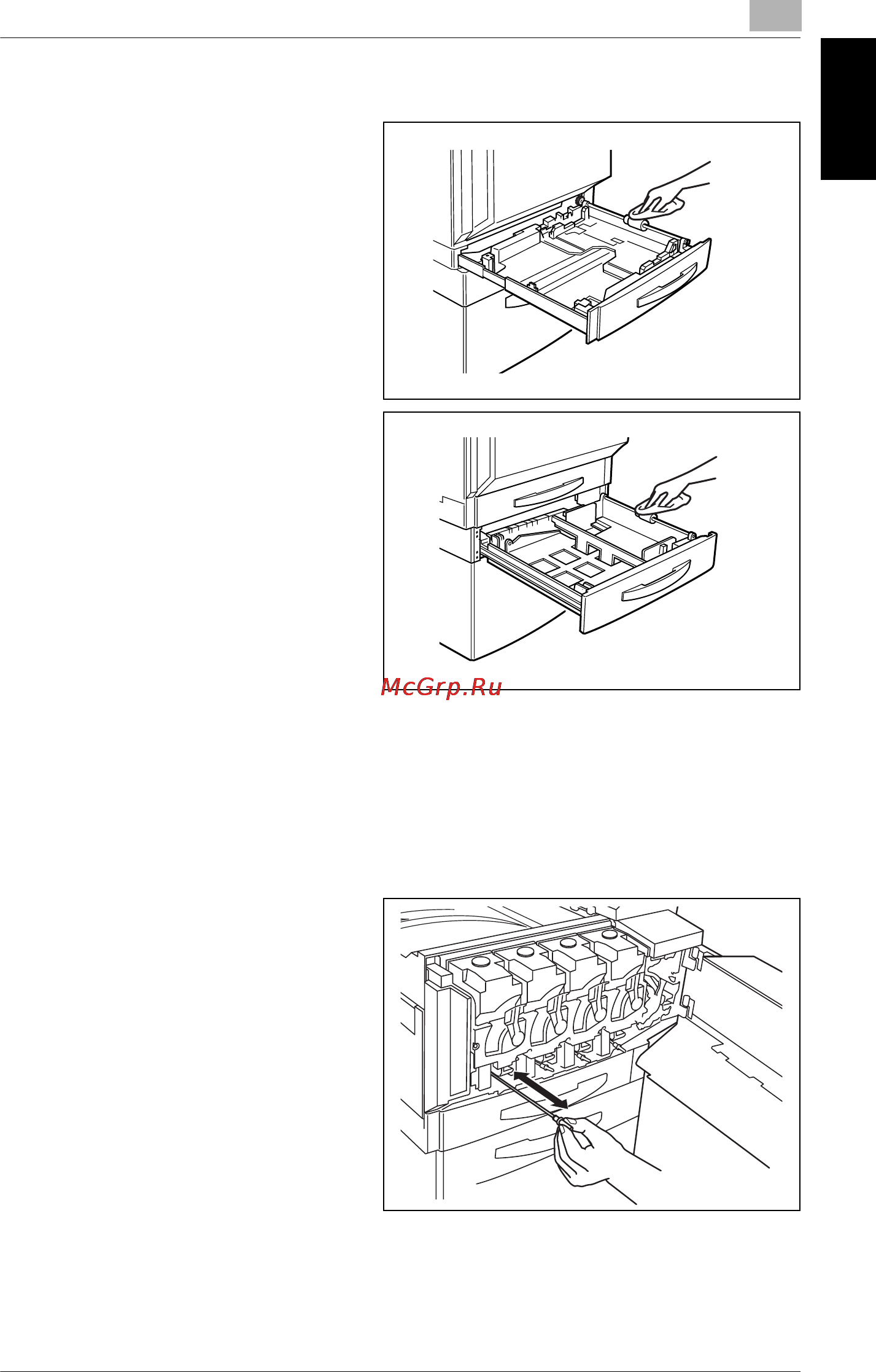

Paper take-up roller

 Clean the paper take-up roller by

wiping it with a soft, dry cloth.

Electrostatic charger

If the electrostatic charger is dirty, streaks will appear though the prints. If this

occurs, clean the charger according to the following procedure.

1 Open the front door.

2 Slowly pull out the charger-

cleaning tool as far as possible,

and then slowly push in the

charger-cleaning tool as much as

possible.

Repeat this step three times.

Perform this operation with each

charger-cleaning tool.

3 Securely insert each charger-cleaning tool, and then close the front door.
