Konica Minolta CF2002P [37/162] Before making prints chapter 3

3.4 Selecting the Required Function

CF2002/CF3102 3-13

Before Making Prints Chapter 3

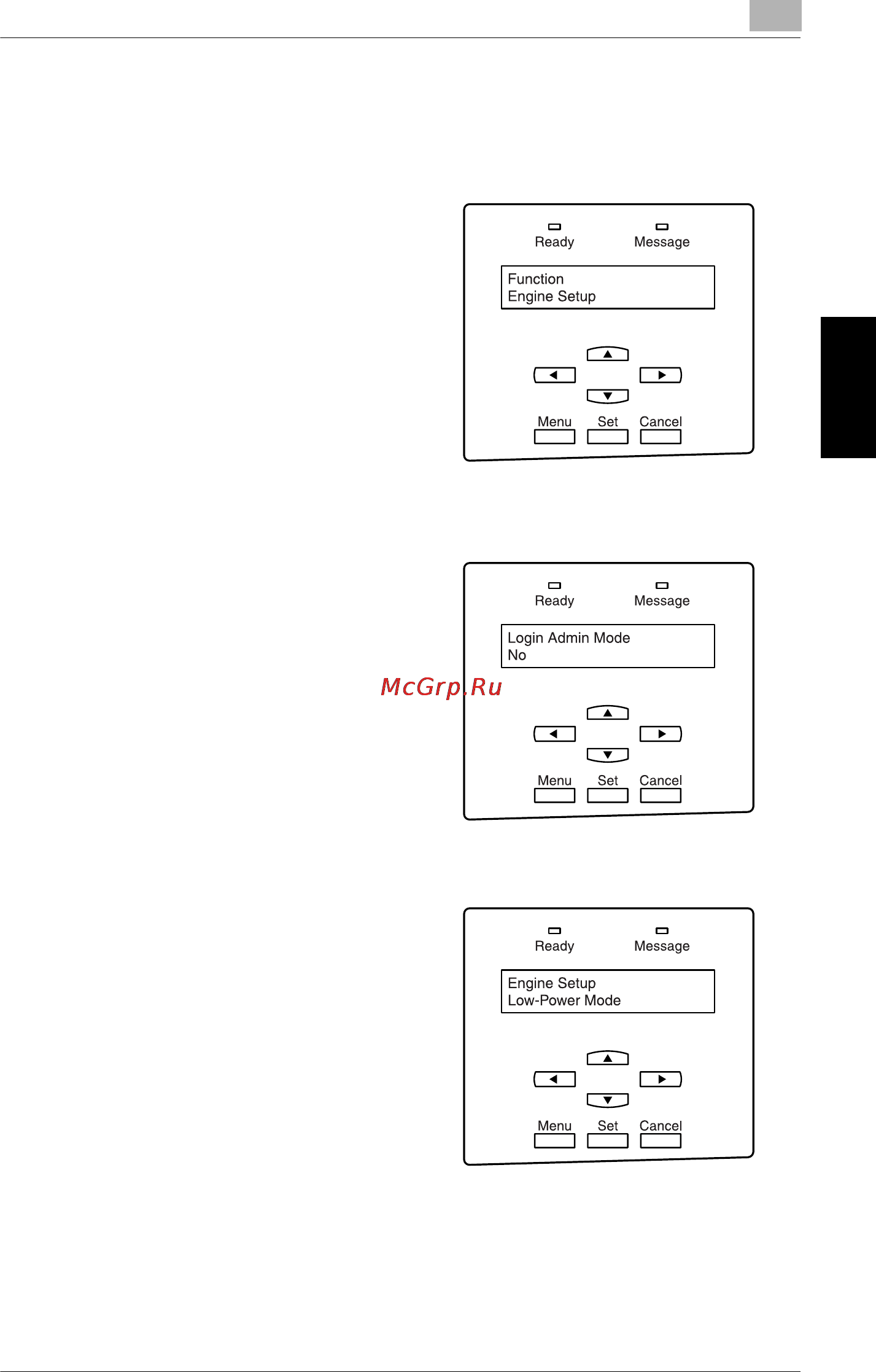

To set the Engine Setup Items

For example: Low-Power Mode

1 Select “Engine Setup” and press the

[Set] key.

2 “Login Admin Mode” (login screen for

the setting mode used by the technical

representative) is displayed.

Select “No” and press the [Set] key.

3 Press  or  until the “Low-Power

Mode” appears and press the [Set]

key.
