Konica Minolta CF2002P [88/162] To clear a paper misfeed in the paper drawer

5.4 When the Message “Paper jam at Jx” Appears

5-20 CF2002/CF3102

Printer Panel Messages Chapter 5

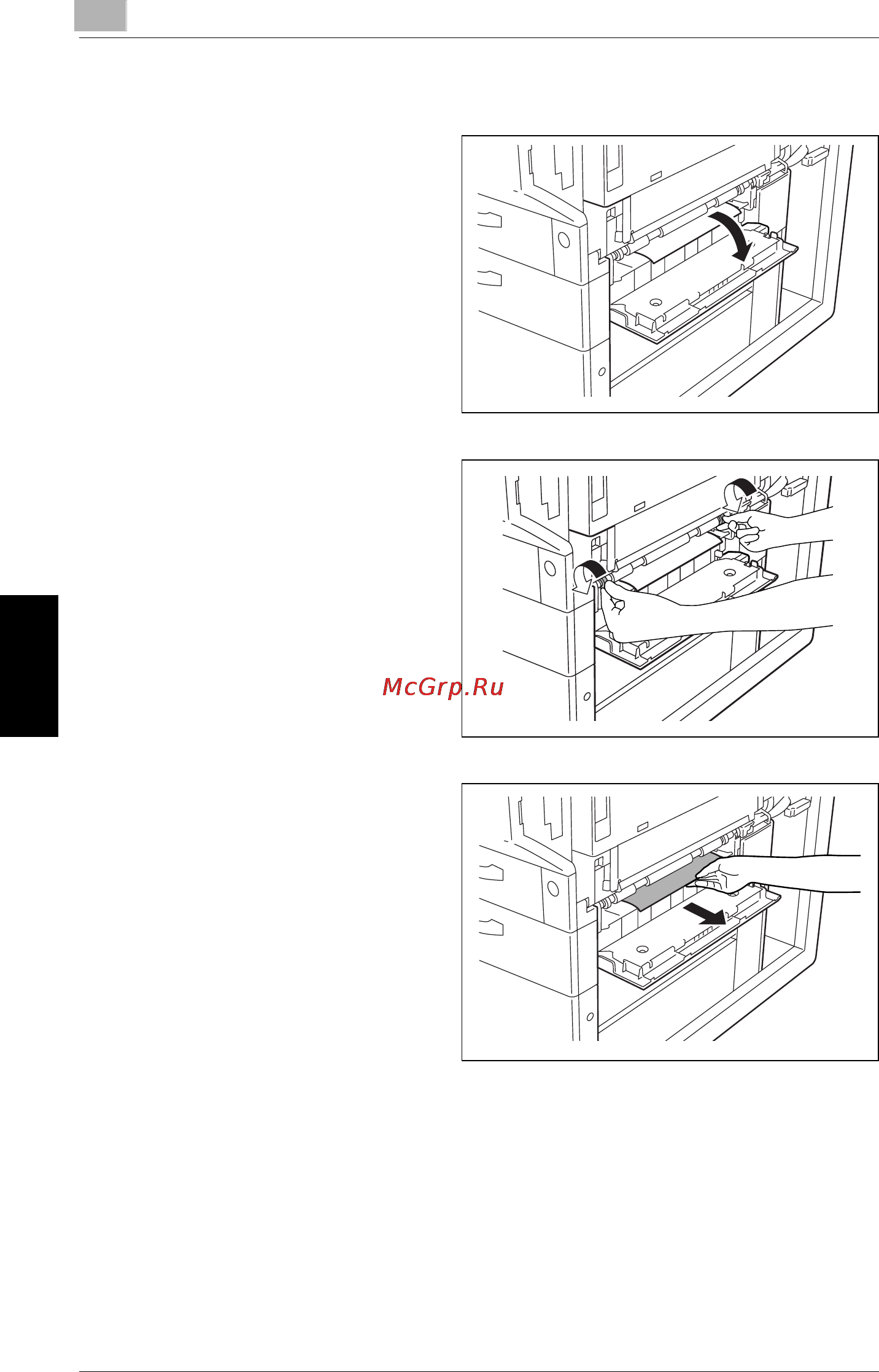

To clear a paper misfeed in the paper drawer

1 Open the lower right-side door of

the paper drawer begin used.

2 Turn the green wheels to feed the

paper so that it can be easily

removed.

3 Carefully pull out the paper.

4 Close the lower right-side door.

5 Pull out the paper drawer, and then remove any misfed paper.

6 Close the paper drawer.
