Konica Minolta CF2002P [40/162] Before making prints chapter 3

3.5 Turning the Printer On and Off

3-16 CF2002/CF3102

Before Making Prints Chapter 3

To turn off the printer



Note

If the printer is turned off in a manner other than described in “To turn off the

printer”, the controller may be damaged.

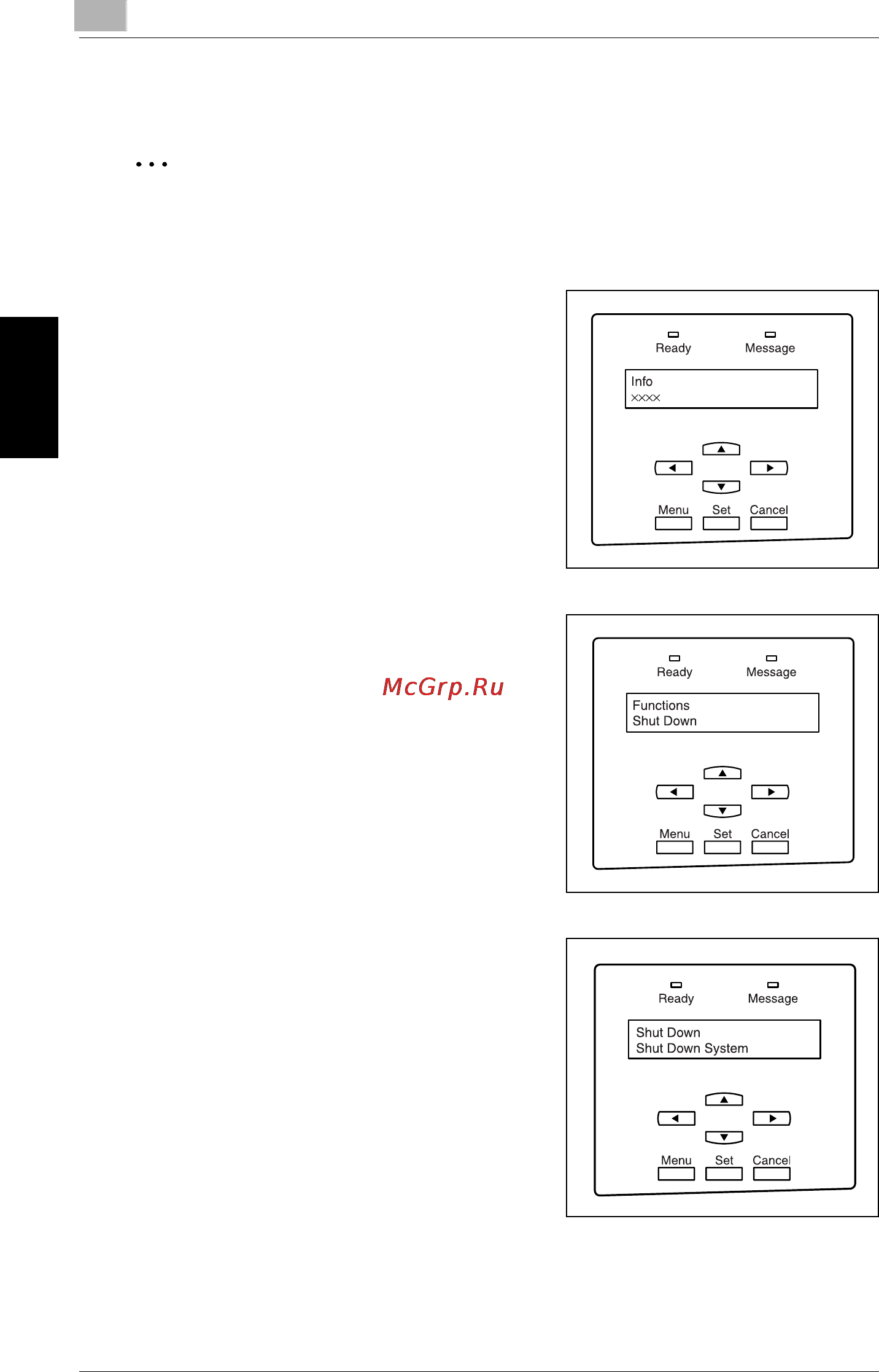

1 Check that “Info XXXX” appears in the

display, and then press the [Menu] key in the

printer panel.

2 Press  or  until “Functions Shut Down”

appears, and then press the [Set] key.

3 Press  once to display “Shut Down

System”, and then press the [Set] key to

begin shutting down the system.
