Konica Minolta CF2002P [95/162] To clear a paper misfeed in finisher fn 116

5.4 When the Message “Paper jam at Jx” Appears

CF2002/CF3102 5-27

Printer Panel Messages Chapter 5

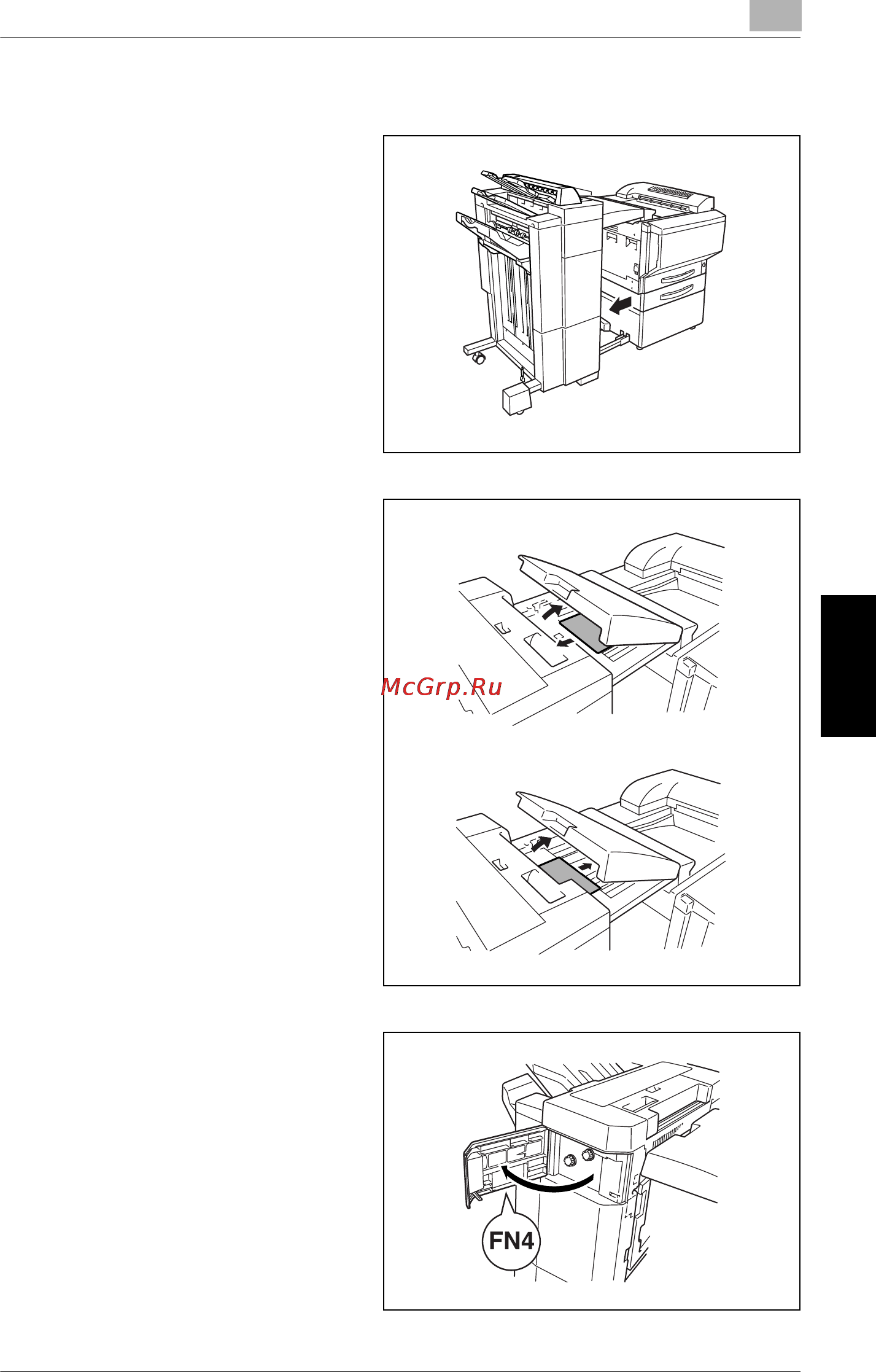

To clear a paper misfeed in finisher FN-116

1 Slide the finisher away from the

printer.

2 Open the horizontal transport unit

cover, and then remove any

paper.

3 Close the horizontal transport unit

cover.

4 Open front door FN4.
