Konica Minolta CF2002P [89/162] To clear a paper misfeed in the large capacity cabinet

5.4 When the Message “Paper jam at Jx” Appears

CF2002/CF3102 5-21

Printer Panel Messages Chapter 5

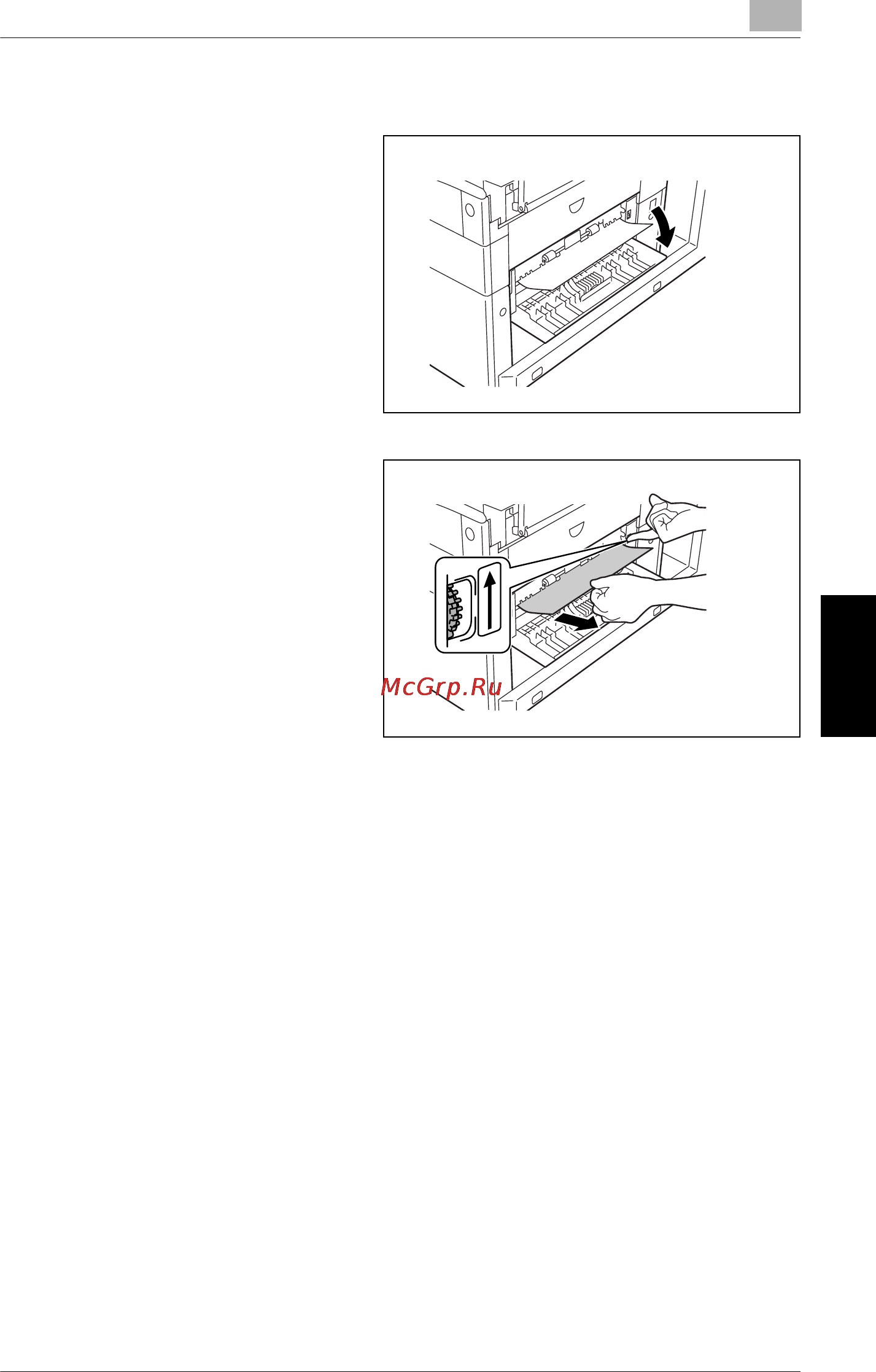

To clear a paper misfeed in the large capacity cabinet

1 Open the right-side door of the

large capacity cabinet.

2 Turn the green dial in the direction

of the arrow to feed out the paper.

3 Carefully pull out the paper.

4 Close the right-side door of the large capacity cabinet.

5 Pull out the paper drawer of the large capacity cabinet, and then remove any

misfed paper.

6 Close the paper drawer of the large capacity cabinet.
