Konica Minolta CF2002P [96/162] Printer panel messages chapter 5

5.4 When the Message “Paper jam at Jx” Appears

5-28 CF2002/CF3102

Printer Panel Messages Chapter 5

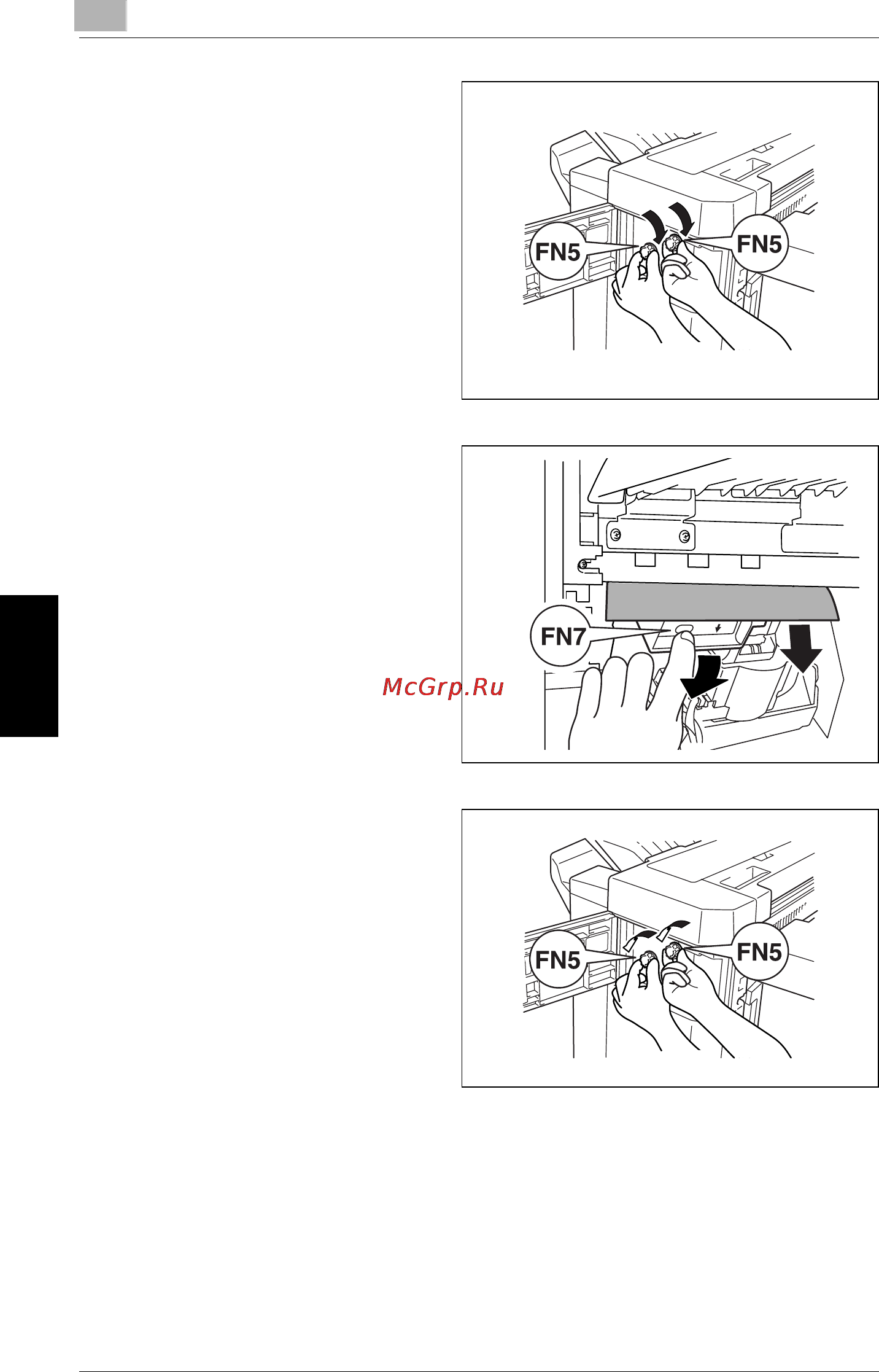

5 Turn knobs FN5 clockwise at the

same time.

6 While holding the misfeed-clearing

guide FN7 open, pull out any

paper.

7 When the paper can be seen from

the print output tray, turn knobs

FN5 counterclockwise at the same

time to feed out any paper.

8 Close front door FN4.

FN7
