English
11
As the remaining battery indicator shows somewhat
differently depending on ambient temperature and
battery characteristics, read it as a reference.
NOTE:
䡬 Do not give a strong shock to the switch panel or
break it.It may lead to a trouble.
䡬 To save the battery power consumption, the
remaining battery indicator lamp lights while pressing
the remaining battery indicator switch.
5. How to use the LED light
Every time you press the light switch on the switch
panel, the LED light lights or goes off. (Fig. 10)
To prevent the battery power consumption, turn off
the LED light frequently.
CAUTION:
䡬 Do not expose directly your eye to the light by looking
into the light.
If your eye is continuously exposed to the light, your
eye will be hurt.
NOTE:
䡬 To prevent the battery power consumption caused
by forgetting to turn off the LED light, the light goes
off automatically in about 15 minutes.
6. Tightening mode selector function (Fig. 11)
CAUTION:
䡬 Do not subject the switch panel to shock or damage.
䡬 Select high/low mode and single/continuous mode
while the trigger switch is released. Failure to do so
could result in malfunction.
(1) High/Low selector switch
The rotation speed changes in 4 steps (500, 1200,
2000, 2600 min
-1
) each time the high/low selector
switch is pressed.
(2) Single/Continuous selector switch
The tightening torque can be adjusted according to
the work by changing the tightening mode using the
single/continuous selector switch and the high/low
selector switch on the side of the impact driver.
When the forward/reverse button is set to reverse,
the high/low mode and single/continuous mode are
set to “High” and “Continuous” respectively,
regardless of the indicators on the switch panel.
The mode switches between single and continuous
mode each time the single/continuous selector switch
is pressed.
In single mode, after the trigger switch has been
pulled to start operation, bolt-tightening stops
automatically after 1 to 4 tightenings.
In continuous mode, when the trigger switch is pulled
to start operation, bolt-tightening continues (without
stopping automatically).
NOTE:
䡬 The appropriate mode differs depending on the screw
and the material being screwed. Drive in a few test
screws and adjust the mode setting accordingly.
䡬 The high/low and single/continuous selector switches
can only be set after the battery has been installed in
the driver and the trigger switch has been pulled
once.

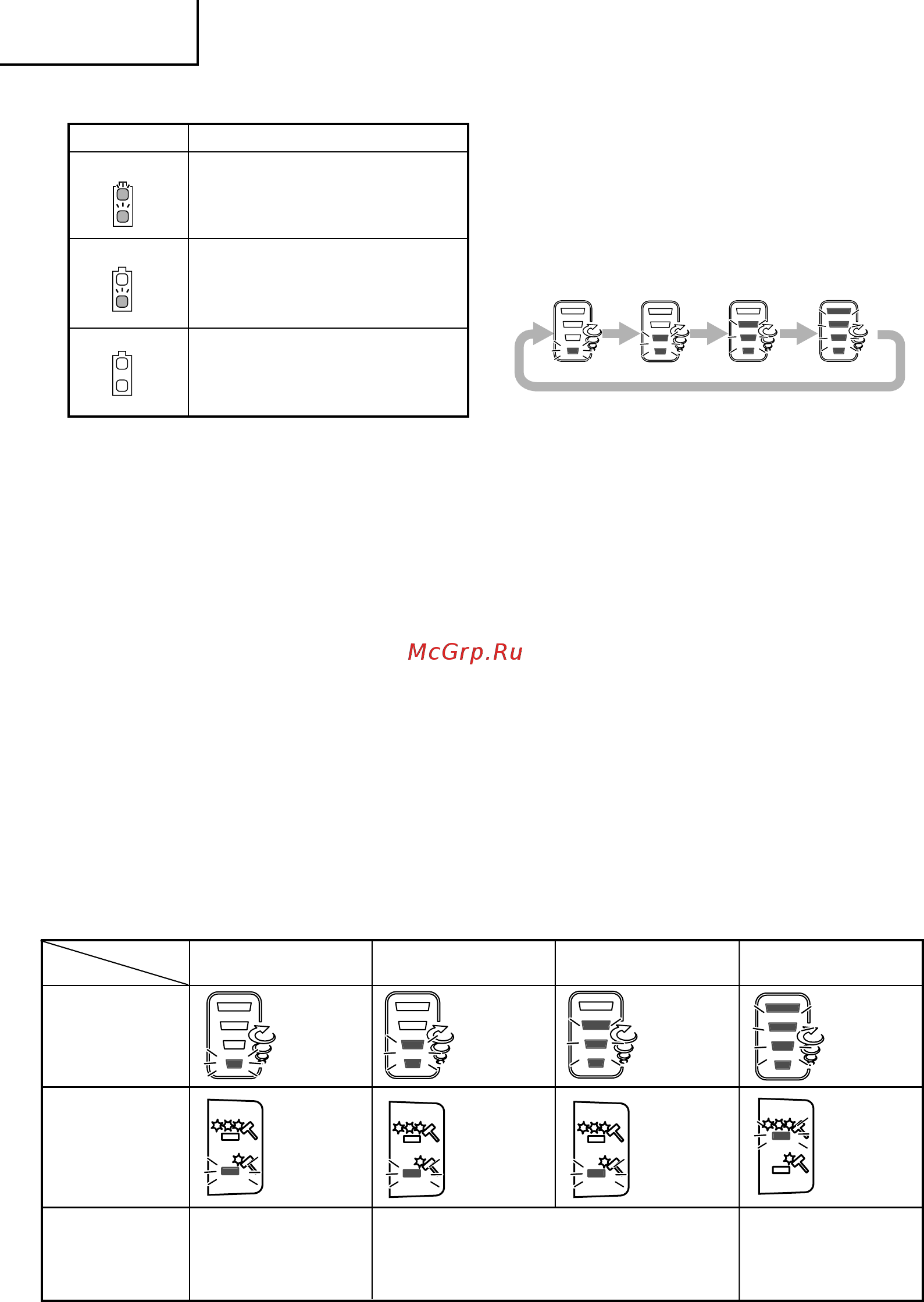

State of lamp Battery Remaining Power
The battery remaining power
is enough.
The battery remaining power
is a half.
The battery remaining power
is nearly empty.
Re-charge the battery soonest
possible.
Table 4
Low 1 Low 2 Medium High
Rotation speed
500 min
-1
1200 min
-1
2000 min
-1
2600 min
-1
Single/
Continuous
Single Single Single
Continuous
Use
Examples of tightening mode selector function settings
“Delicate work”
Tightening small
diameter screws
(M6 or similar), etc.
“Light load work”
Affixing plasterboard (select according to the
hardness of the base material) etc.
“Heavy load work”
Tightening long
screws, coach
screws, bolts, etc.
01Eng_WH14DBL_EE 1/26/09, 14:5411
