English
8

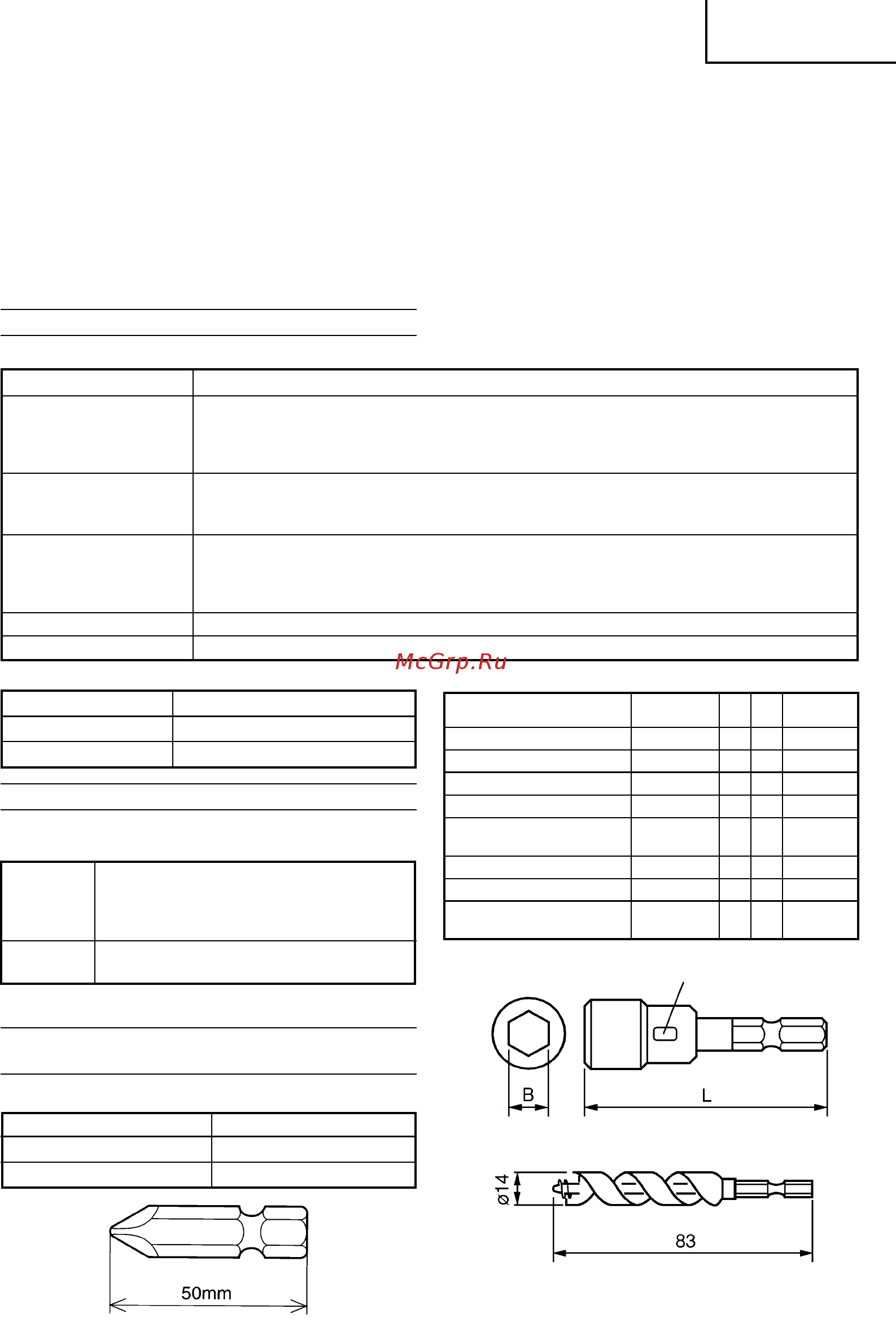

STANDARD ACCESSORIES
In addition to the main unit (1), the package contains the
accessories listed in the table below.
1 Charger ................................................ 1
2 Battery .................................................. 2
3 Plastic case .......................................... 1
4 Battery cover ....................................... 1
Standard accessories are subject to change without notice.
OPTIONAL ACCESSORIES
(Sold separately)
1. Plus driver bit
Part Name
Engraved
LBCode No.
characters
5 mm Hexagonal socket 8 65 8 996177
6 mm Hexagonal socket 10 65 10 985329
5/16" Hexagonal socket 12 65 12 996178
8 mm Hexagonal socket 13 65 13 996179
10 mm Hexagonal socket
14 65 14 996180
(small type)
10 mm Hexagonal socket 16 65 16 996181
10 mm Hexagonal socket 17 65 17 996182
1/2" Hexagonal long
socket
21 166 21 996197
Bit No. Code No.
No. 2 992671
No. 3 992672
Engraved characters
2. Hexagonal socket
3. Wood working drill: Code No. 959183
CAUTION
1. If liquid leaking from the battery gets into your
eyes, do not rub your eyes and wash them well
with fresh clean water such as tap water and
contact a doctor immediately.
If left untreated, the liquid may cause eye-problems.
2. If liquid leaks onto your skin or clothes, wash well
with clean water such as tap water immediately.
There is a possibility that this can cause skin irritation.
3. If you find rust, foul odor, overheating, discolor,
deformation, and/or other irregularities when using
the battery for the first time, do not use and return
it to your supplier or vendor.
WARNING
If an electrically conductive foreign object enters the
terminals of the lithium ion battery, a short-circuit may
occur resulting in the risk of fire. Please observe the
following matters when storing the battery.
䡬 Do not place electrically conductive cuttings,
nails, steel wire, copper wire or other wire in
the storage case.
䡬 Either install the battery in the power tool or
store by securely pressing into the battery
cover until the ventilation holes are concealed
to prevent short-circuits (See Fig. 1).
CHARGER
Model UC18YRSL
Charging voltage 14.4 V 18 V
Weight 0.6 kg
Model WH14DBL
High mode 0 – 2600 min
-1
No-load speed
Medium mode 0 – 2000 min
-1
Low 2 mode 0 – 1200 min
-1
Low 1 mode 0 – 500 min
-1
M4 – M8 (Small screw)
Capacity M5 – M14 (Ordinary bolt)
M5 – M12 (High tension bolt)
Maximum 150 N·m (1530 kgf·cm)
Tightening is M14 high tension bolt (strength grade 12.9),
Tightening torque
when fully charged at 20°C temp.
Tightening time: 3 sec.
Rechargeable battery BSL1430: Li-ion 14.4 V (3.0 Ah, 8 cells)
Weight 1.5 kg
SPECIFICATIONS
POWER TOOL
Charger, battery, plastic case and battery
cover are not contained.
WH14DBL
(2LSCK)
WH14DBL
(NN)
01Eng_WH14DBL_EE 1/26/09, 14:548
