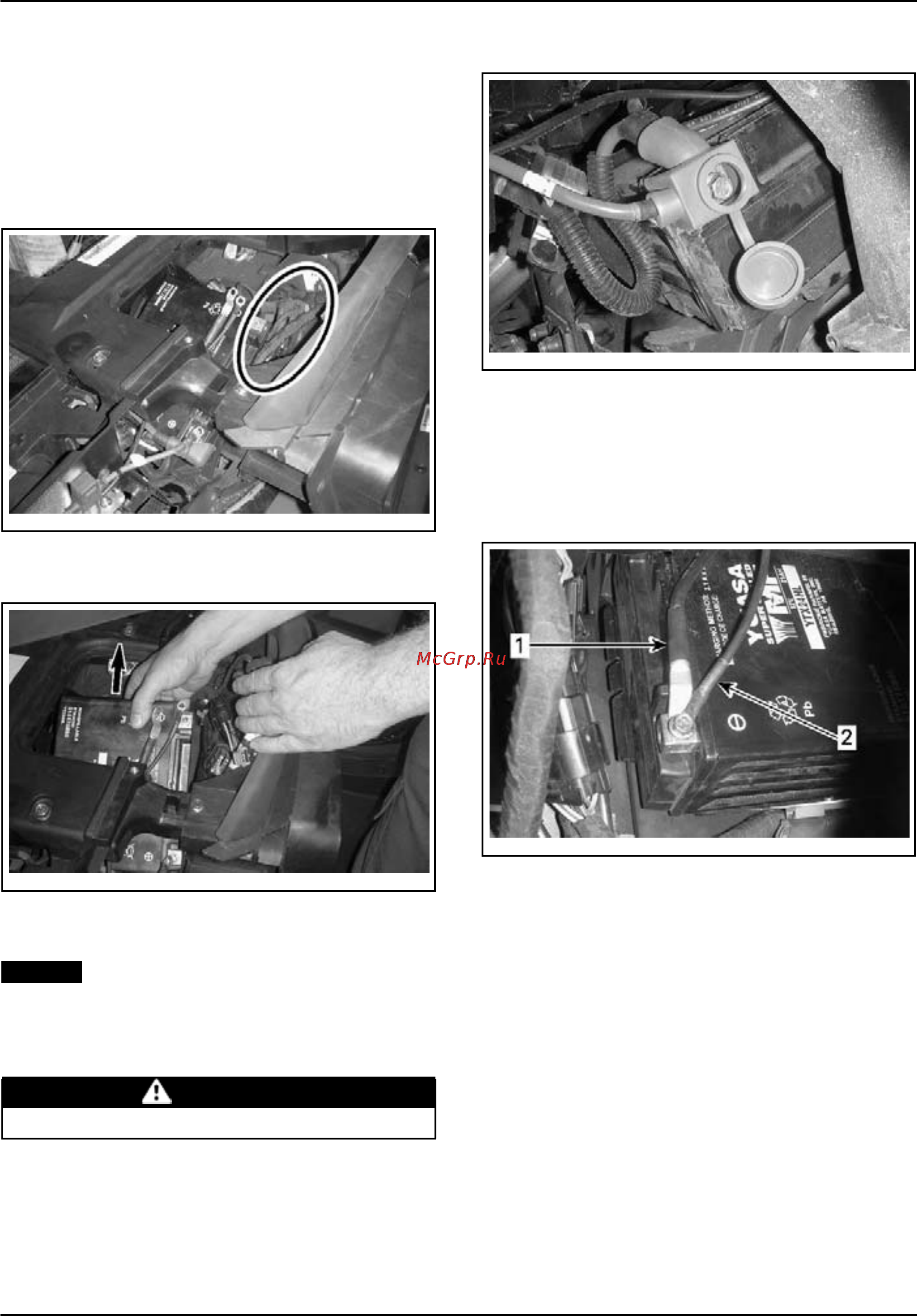

PARTS TO BE INSTALLED
7. Install battery screws on battery posts (from
PDI kit).
8. Remove battery holding strap.
9. Cut locking ties securing battery cables to-
gether.
10. Move electrical harness outward to make
room around battery.
rbl2010-002-310_a
11. Lift the leading edge of the battery and care-
fully pull it out of the battery rack.
rbl2010-002-311_a
12. Charge battery. Refer to
CAN-AM ROADSTER
BATTERIES SERVICE BULLETIN
.
NOTICE
It is of the upmost importance for the
battery life span that the battery initial charging
be performed.
13. Install charged battery in battery rack.
WARNING
Always connect RED (+) cable first.
14
.
Co
nnect RED (+) positive battery cables.
15. Tighten positive post battery screw to 4 N•m
(35 lbf•in).
16. Apply
DIELECTRIC GREASE (P/N 293 550 004) on
battery posts.
17. Close RED rubber boot cover.
rbl2010-002-032
18. Connect BLACK (-) negative battery cables as
shown:
18.1 Position BLACK (-) main battery cable
(large) on negative (-) battery post.
18.2 Position BLACK (-) regulator/rectifier ca-
ble (small) on negative (-) battery post.
rbl2010-002-315_a
1. BLACK (-) main battery cable (large)
2. BLACK
(-) regulator/rectifier cable (small)
18.3 Tighten negative post battery screw to
4N•m (35lbf•in).
19. Inst
all battery holding strap.
16 / 39 2010-1 PREDELIVERY
