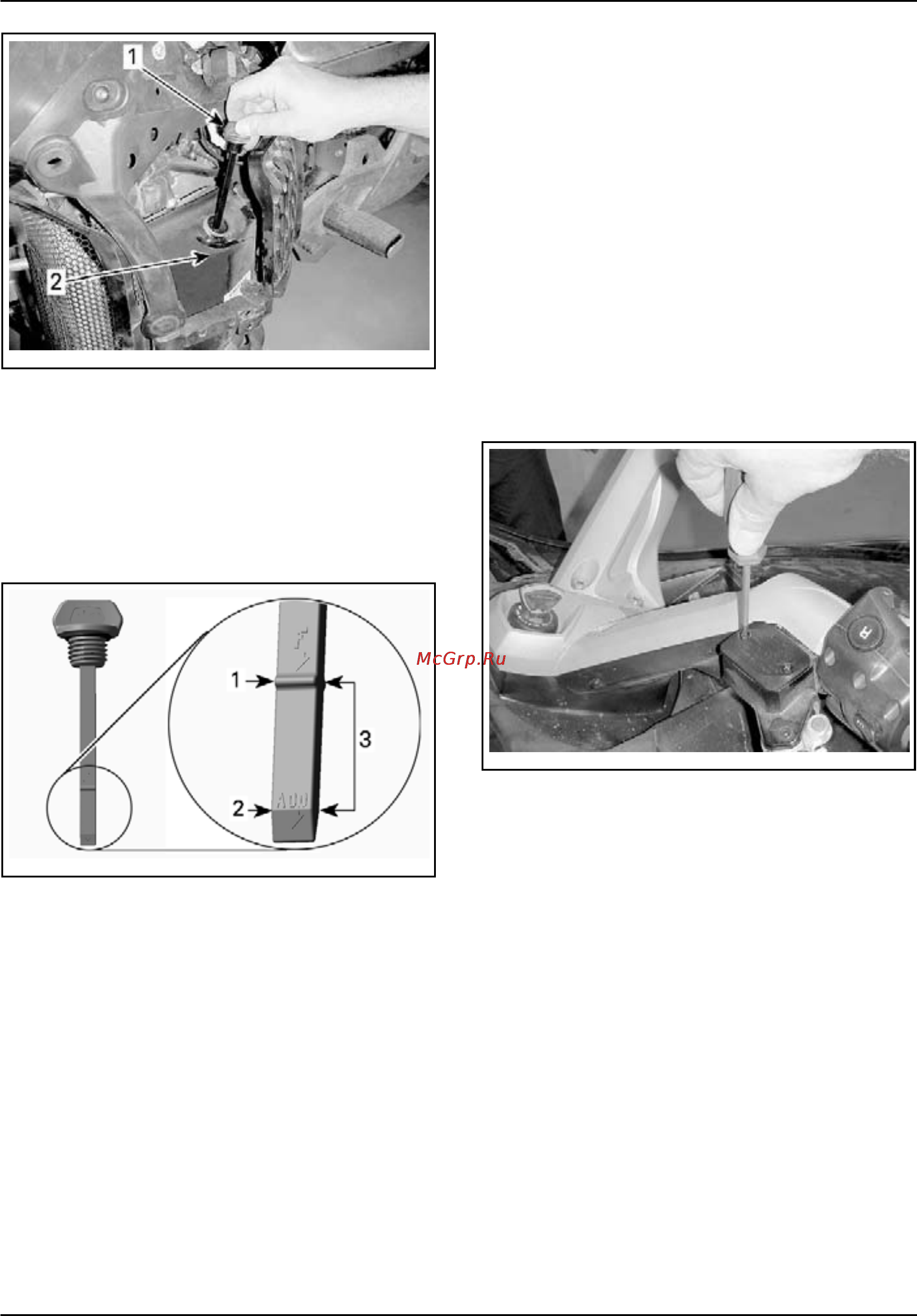

FLUIDS
rmo2010-001-062_a
1. Oil dipstick
2. Oil tank
6. Wipe off the dipstick.
7. Reinsert and completely screw in the dipstick
to assure an accurate reading.
8. Unscrew and remove the dipstick again.
9. Check the oil level on the dipstick. It should be
near or equal to the upper mark.
rmr20
08-011-102_a
1. Full
2. Add
3. Opera
ting range
If Oil Level is at or Near Upper Mark:
– Properly insert and tighten dipstick.
–Inst
all the LH middle side panel as the reverse
of re
moval.
If Oil Level is Under Operating Range:
–Adda
small amount of recommended oil.
– Repeat the previous steps until oil level reaches
the dipsticks upper (F) mark. Do not overfill.
– Properly insert and tighten dipstick.
–Ins
tall the LH middle side panel as the reverse
of r
emoval.
Clutch Fluid (SM5 Model)
Recommended Clutch Fluid
Use DOT 4 brake fluid from a sealed container.
An opened container may be contaminated or may
have absorbed moisture from the air.
Clutch Fluid Level Verification
The clutch fluid reservoir is near the reverse but-
ton on the left handlebar.
1. Park the vehicle on a firm, level surface.
2. Set the handlebar in the straight ahead position.
3. Wipe clean the cap area.
4. Use the Phillips head screwdriver located in the
toolkit.
5. Unscrew cap retaining screws.
rmo2010-001-005
6. Carefully remove cap. Pay attention not to drop
the cap seal.
7. Look inside the reservoir to see the fluid level.
8. Level should be within the maximum level line
and the minimum level indicated by the protu-
berances in the bottom of reservoir.
PREDELIVERY 2010-1 23 / 39
