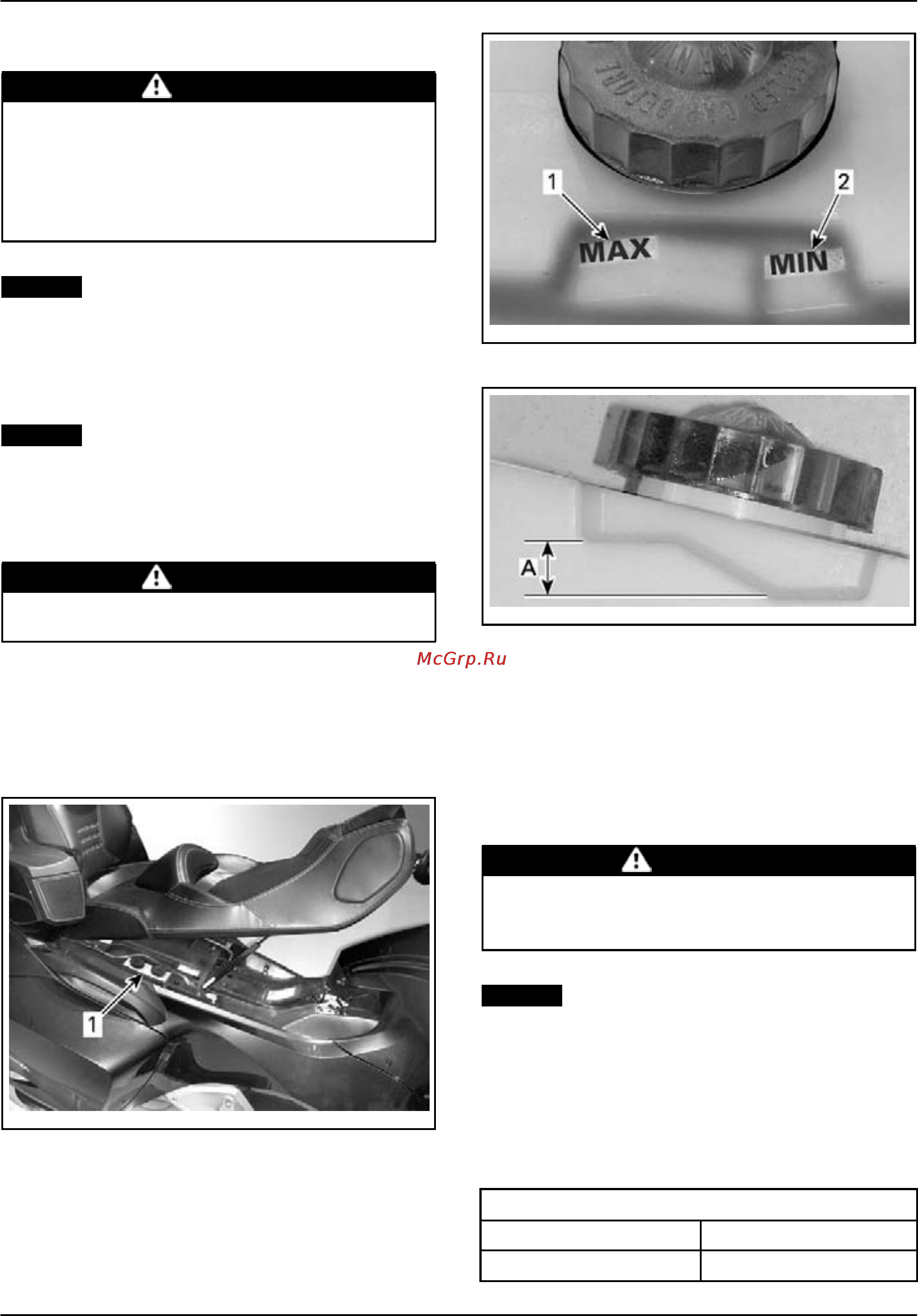

![Can-Am Spyder RT SM5 2010 [25/39] Set up](/views2/1012801/page25/bg19.png)
SET-UP
Brake Fluid
WARNING
Avoid contact o
fbrakefluidwithskinoreyes
because it may c
ause severe burns. In case
of contact with
the skin, wash thoroughly. In
case of contac
t with the eyes, immediately
rinse with ple
nty of water for at least 10 min-
utes and then c
onsult a doctor immediately.
NOTICE
Do not overfill brake fluid reservoir.
Recommended Fluid
Use only DOT 4 brake fluid from a sealed con-
tainer. An opened container may be contaminated
or may have absorbed moisture from the air.
NOTICE
To avoid serious damage to the brak-
ing system, do not use non-recommended flu-
ids. Brake fluid can damage plastic and painted
surface. Handle with care.
Brake Fluid Level Verification
WARNING
Clean fille
r cap before removing. Use only
DOT 4 brake f
luid from a sealed container.
1. Park the vehicle on a firm, level surface.
2. Unlatch and lift the seat.
3. Check the brake fluid level in both reservoirs,
near the back of the seat. They should both be
above the MIN. mark.
rmo2010-001-013_b
1. Brake fluid reservoir
4. Clean
the filler caps before removing.
5. Add recommended fluid as required. Do not
overfill.
rmo2010-001-091_a
1. Brake fluid MAX. level mark
2. Brake fluid M IN. level mark
rmo2010-001-092_a
A. Operating range
6. Immediately wipe up spills if necessary.
7. Reinstall both caps of the reservoir.
8. Close the seat and ensure it is fully latched.
SET-UP
Tire Pressure
WARNING
Low pressure may cause tire to deflate and
rotate on wheel. Overpressure may burst the
tire. Always follow recommended pressure.
NOTICE
Always check pressure when tires are
cold before using the vehicle.
NOTE: Tire pressure changes with temperature
and altitude. Recheck pressure if one of these
conditions has changed (e.g., significant weather
change, driving in the mountains).
1. Inflate tires to the specified air pressure. Refer
to the following table.
COLD TIRE PRESSURE RECOMM ENDATION
FRONT REAR
Nominal.: 103 kPa (15 PSI) Nominal.: 193 kPa (28 PSI)
PREDELIVERY 2010-1 25 / 39
