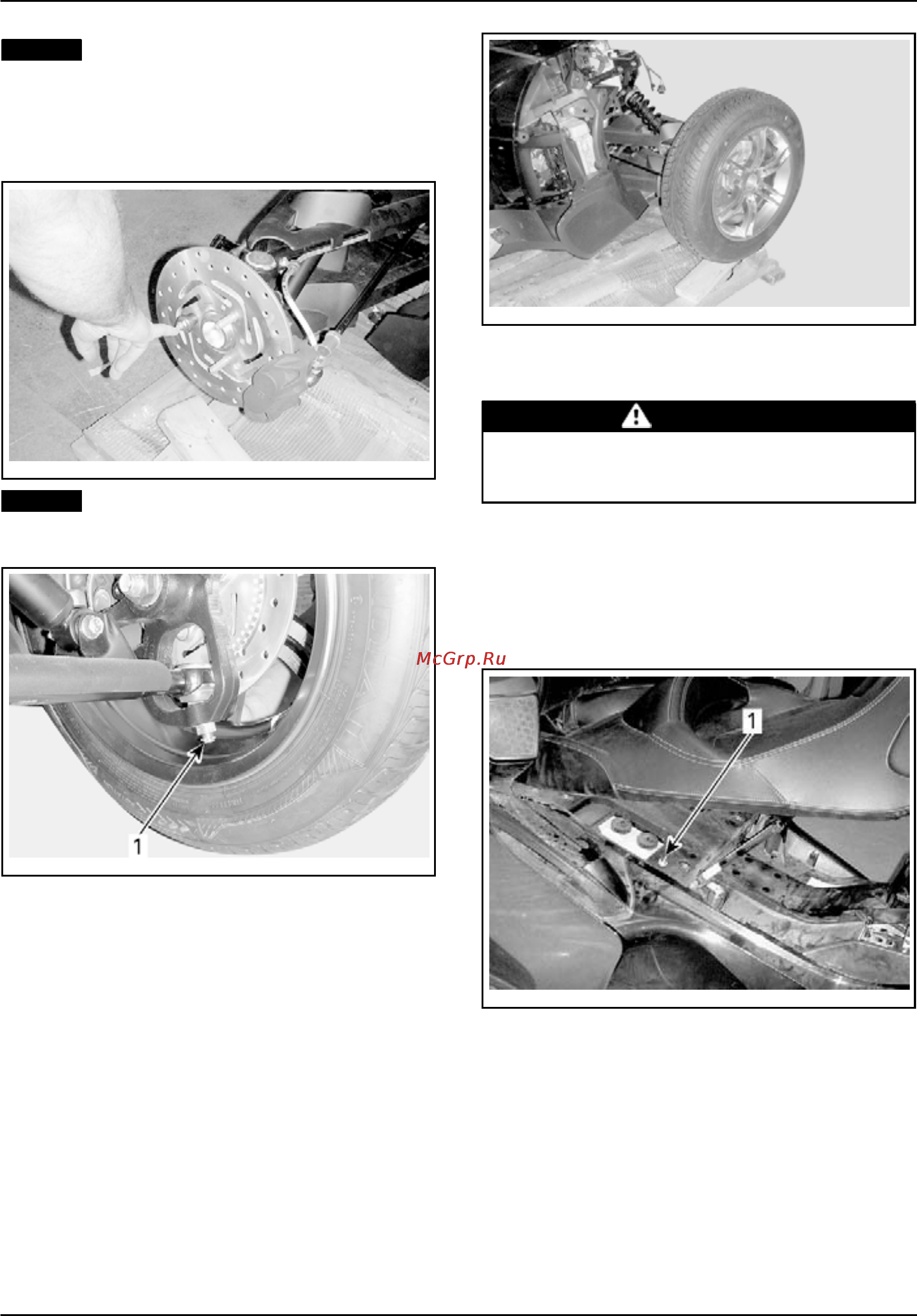

UNCRATING
NOTICE
Never lift vehicle by the suspension
arm.
Front Wheels Installation (continued)
1. Remove nut securing front brake discs to vehi-
cle.
rbl2010-002-017
NOTICE
Be careful not to scratch front wheels
with ball joint cotter pins during wheels instal-
lation.
rbl2010
-002-018_a
1. Ball joint cotter pin
2. Install front wheels on vehicle.
3. Ensure that the rotation direction shown by the
arrow is respected.
4. Tight
en wheels lug nuts by hand (from PDI kit).
5. Lower vehicle on crate base.
rbl2010-002-019
6. Torque whee
ls lug nuts to 105 N•m (77 lbf•ft).
7. Install wheel caps (from PDI kit).
WARNING
The tires a
re only designed to rotate in one di-
rection. D
o not switch the left and right front
wheels.
Vehicle Removal
1. Open seat.
2. Locate ACS suspension pneumatic valve then
unscrew cap.
rmo2010-001-056_a
1. Pneu
matic valve
3. From underneath of vehicle, locate the bottom
of the rear shock absorber.
4. Get
the following hardware from the PDI kit:
– M10 x 140 bolt
– M10 nut
–Pla
stic bushings.
5. Install the 2 plastic bushings over the steel
sleeve at the bottom of the shock absorber.
PREDELIVERY 2010-1 7 / 39
