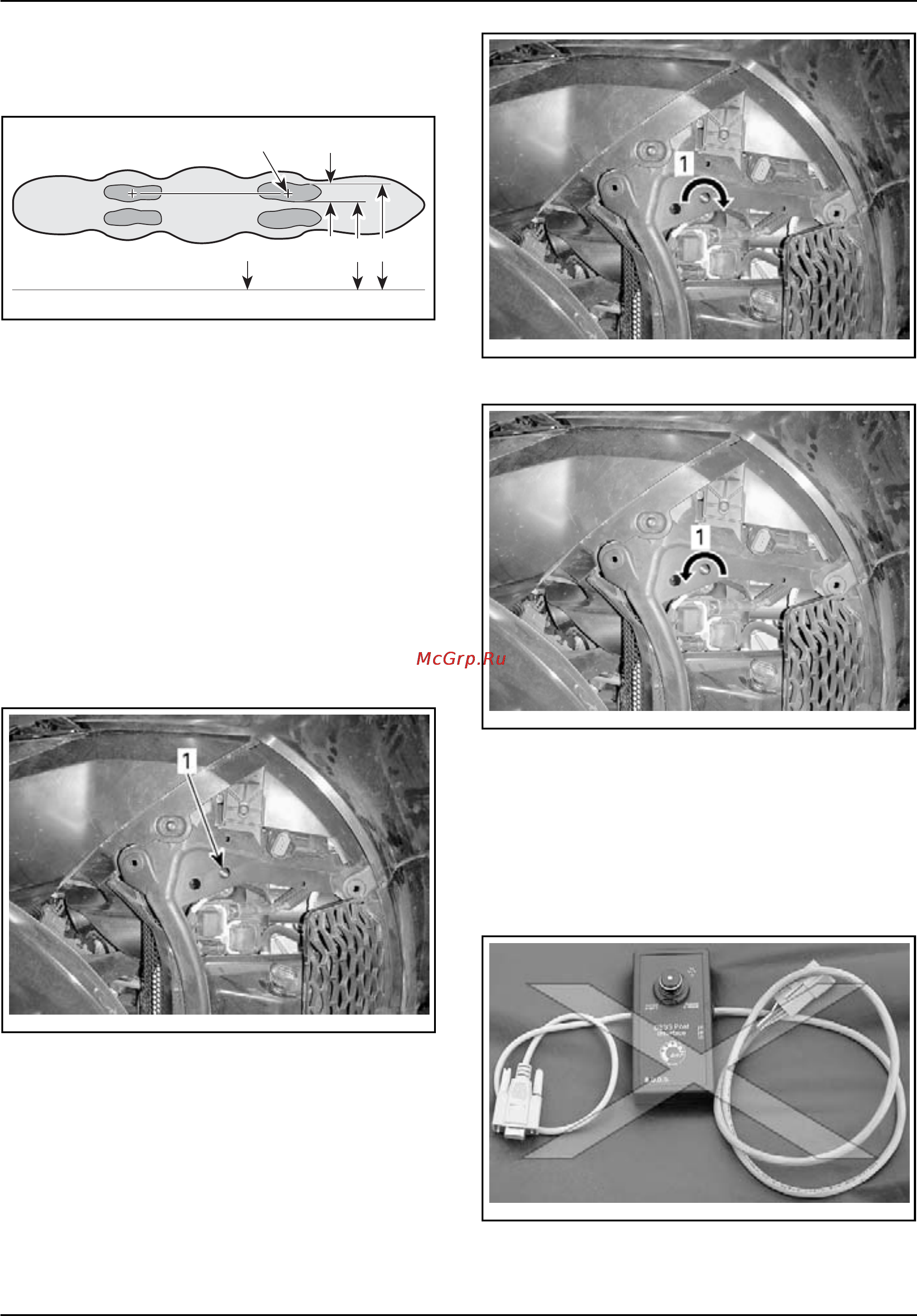

ADJUSTMENTS
Beam aiming is correct when the focus point
(brightest spot) of the headlight reflection is
within the marks.
1
2 3
A
B
rmo2010-001-301_a
TYPICAL HEADLIGHT REFLECTION ON SURFACE TEST
1. Ground
2. Focus point
3. Focus point within the marks
A. Mark at 800 mm (31.5 in) above ground
B. Mark at 850 mm (33.5 in) above ground
Headlights Aiming Adjustment
All Models
1. Each headlight can be adjusted by turning the
adjustment screws located behind the middle
side panel.
2. Remove both middle side panels. Refer to
FRONT CARGO MODULE INSTALLATION
.
3. Use the Allen key located in toolkit.
4. Insert the Allen key through the rear adjustment
hole into the adjustment screw.
rmo2010-001-009_a
LEFT SIDE SHOWN
1. Adjus
t through this hole
5. Turn the adjustment screw clockwise to raise
the headlight beam and conversely turn the ad-
justment screw counterclockwise to lower the
headlight beam. Adjust both headlights evenly.
NOTE
:
The high beam becomes adjusted at the
same
time.
rmo2010-001-009_b
LEFT ADJU ST M EN T SCREW
1. To raise headlight be am
rmo2010-001-009_c
ADJUSTMENT SCREW
1. To lower headlight beam
6. Reinstall middle side panels as the reverse of
removal procedure.
B.U.D.S. Programming
NOTE: MPI-1 will not allow communication with
these vehicles. Only the MPI-2 must be used.
529036019_a
30 / 39 2010-1 PREDELIVERY
